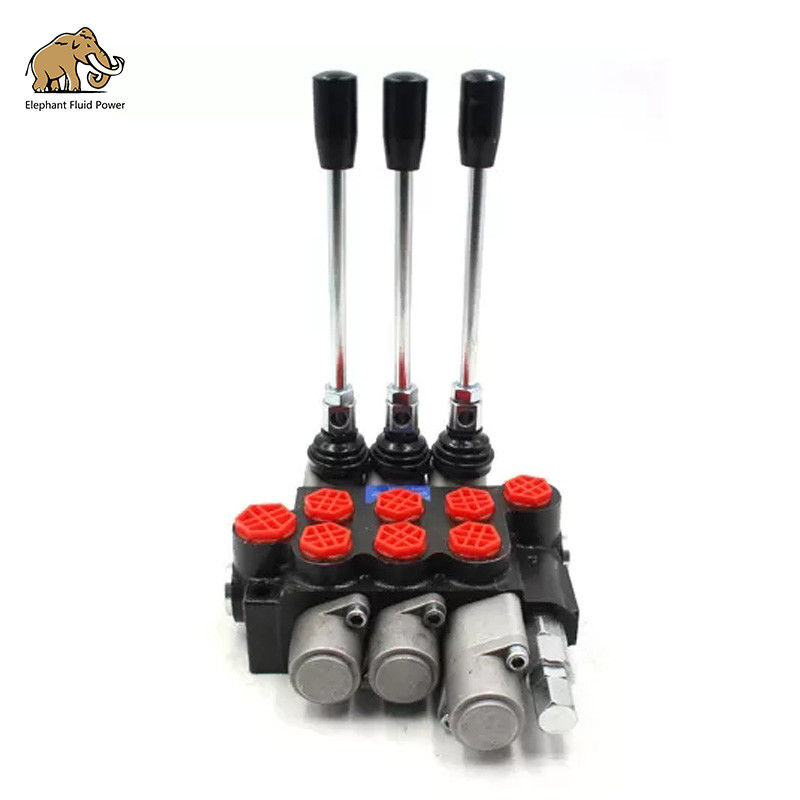

3p80 80lpm Oem Service Hydraulic Directional Valve

3p80 80lpm Oem Service Hydraulic Directional Valve
3p80 80lpm Oem Service Hydraulic Directional Valve 3p80 80lpm Oem Service Hydraulic Directional Valve 3p80 80lpm Oem Service Hydraulic Directional Valve 3p80 80lpm Oem Service Hydraulic Directional Valve 3p80 80lpm Oem Service Hydraulic Directional Valve

Large Image :  3p80 80lpm Oem Service Hydraulic Directional Valve

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE
Model Number: 3P80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 sets/month

3p80 80lpm Oem Service Hydraulic Directional Valve

Description
Meterial: Cast,Ductile Iron, Steel, Bronze And Others Model: 3P80
Spool: 1,2,3,4,5,6 Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Name: Directional Control Valve Type: Hydraulic Vlave
Other Name: Sectional Valves Warranty: 12-18 Months
High Light:

3p80 hydraulic directional valve

,

80lpm hydraulic directional valve

,

monoblock hydraulic directional control valve

3p80 Hydraulic Valve with Joystick 80lpm Directional Control Valve OEM Service



The hydraulic distributor Р80 is used for switching on/off and directing the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tank. It is manufactured with up to 6 plungers



Product details:



Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors.

Directional control valves perform three functions:

  1. Stop fluid flow
  2. Allow fluid flow
  3. Change direction of fluid flow.

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hydropack provide monoblock directional control valves with different capacities and spool control options.

* Spool is open center “A” spool with spring return. Working port threads (A & B) are G ½"

* Max. Pressure P: 315 bar, T: 50 bar, A-B: 300 bar

  • Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar)
  •
  • Tandem center, all spools are double acting with spring return in neutral position
  •
  • A, B ports 3/8' BSPP; P, T, N ports 1/2' BSPP (British Standard Parallel Pipe, not NPT)
  •
  • Adjustable relief valve: from 1500 to 3625 PSI
  •
  • specify if you need special spools, adapters, power beyond etc





Functions and features


1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;


2. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.



3. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.



4. Work group number can be added according to demand, 7 spools at most.



5. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by

customers;



Specification





Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 250bar
Back pressure 50 bar
Nominal flow 80 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7





Port size



BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U08 1/2-20UNF N04 NPT1/4
G06 G3/8 M18 M18X1.5 U10 5/8-12UNF N06 NPT3/8
G08 G1/2 M20 M20X1.5 U12 3/4-16UNF N08 NPT1/2
G12 G3/4 M22 M22X1.5 U16 1-12UNF N12 NPT3/4
G16 G1 M27 M27X2 U22 11/8-12UNF N16 NPT1



Application:


This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.







BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
    M27 M27X2



Application:


This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.



3p80 80lpm Oem Service Hydraulic Directional Valve 03p80 80lpm Oem Service Hydraulic Directional Valve 1

3p80 80lpm Oem Service Hydraulic Directional Valve 2
