Product Details:
|
| Spool:: | 1, 2, 3, 4, 5, 6, 7 ... | Flow:: | 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
|---|---|---|---|
| Pressure:: | 31.5Mpa | Appliions:: | Cranes Telehandlers Retro-excavators And Compactors. |
| Installation:: | Threaded Cartridge | Type:: | Directly Operated Type |
| High Light: | Hydraulic Directional Control Valve Dcv20,Dcv40 Hydraulic Directional Valve,Hydraulic Directional Control Valve Dcv140 |
||

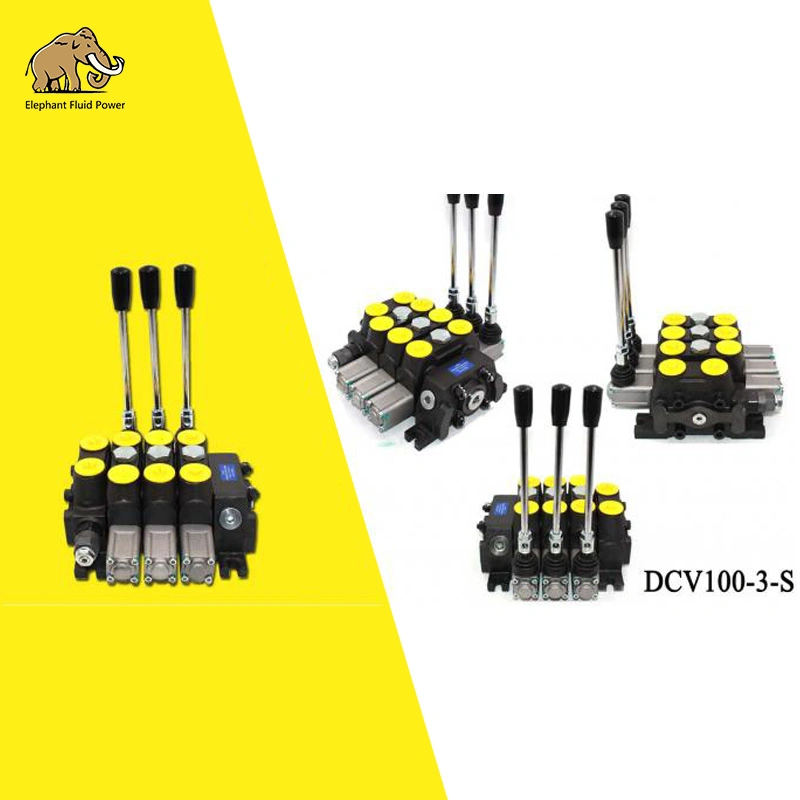

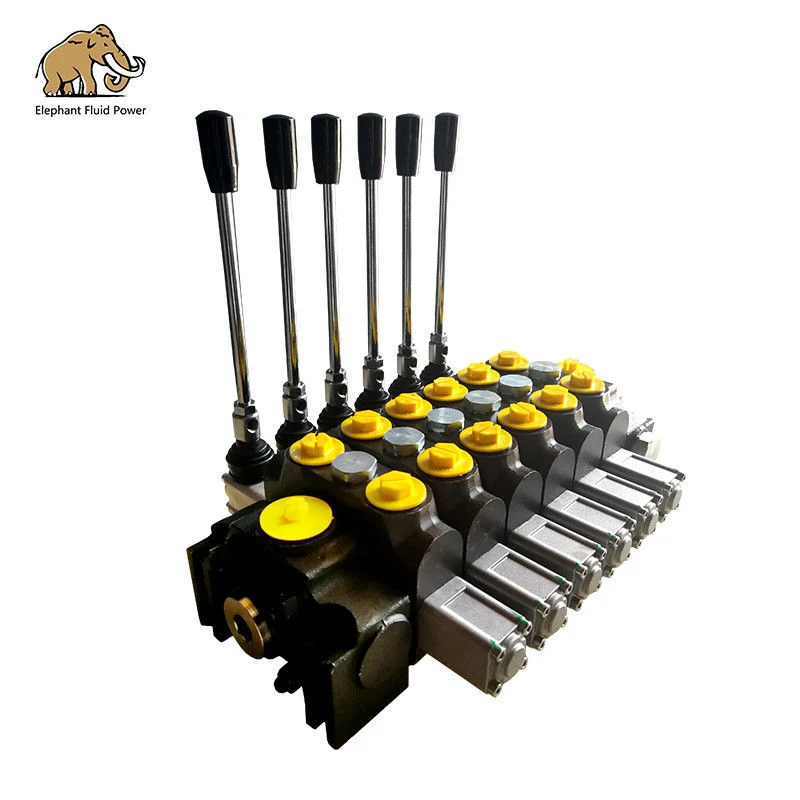

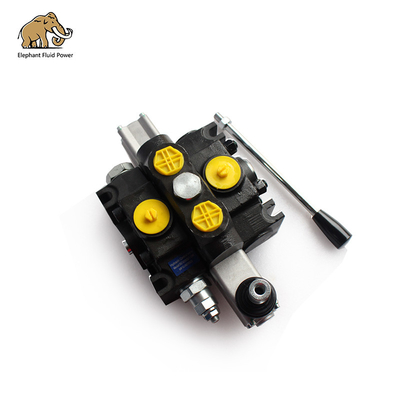

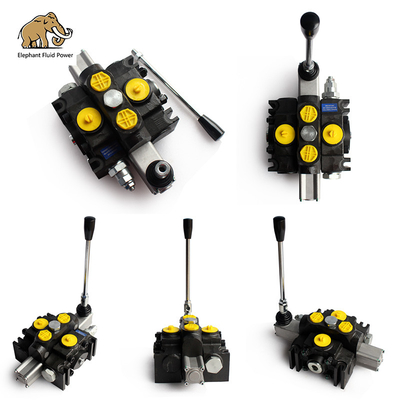

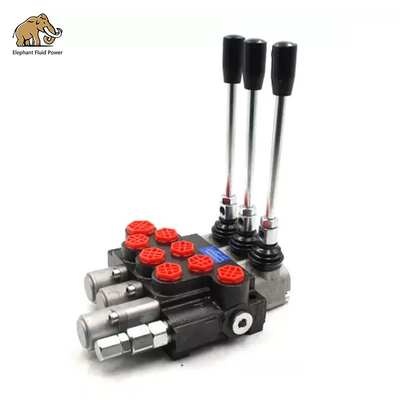

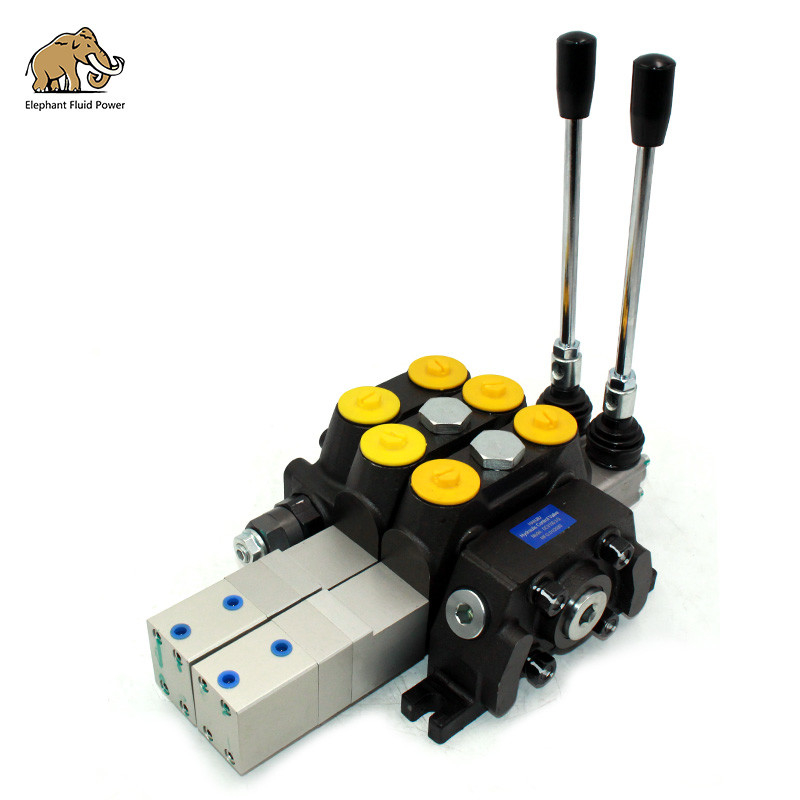

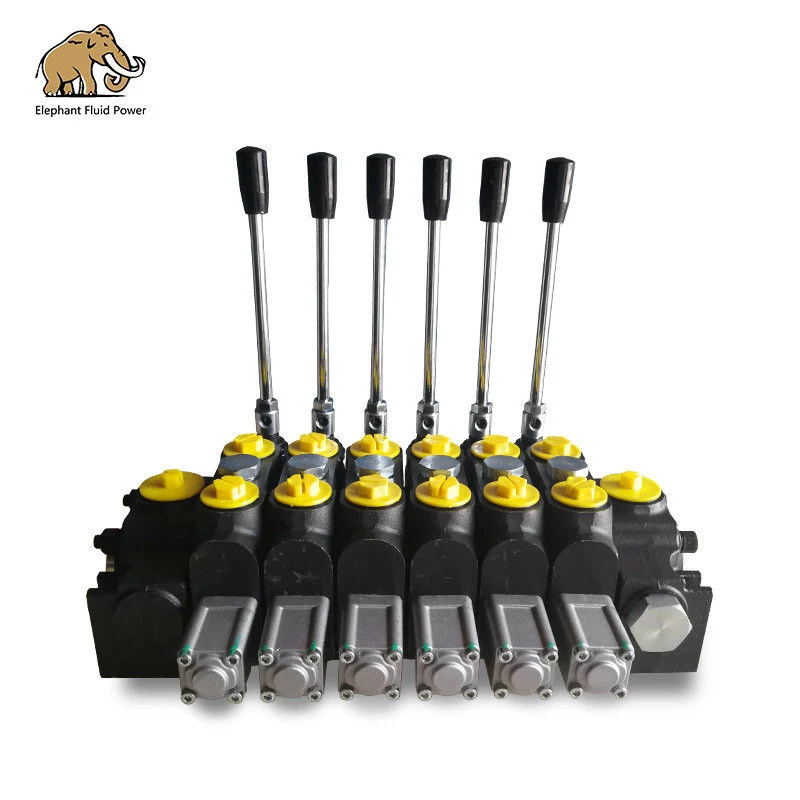

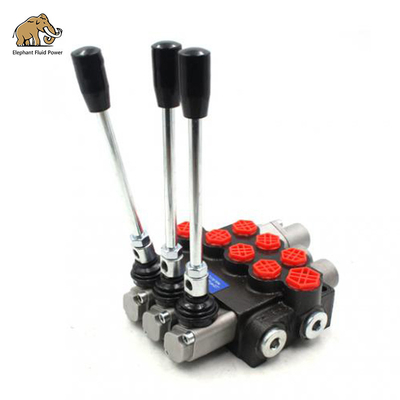

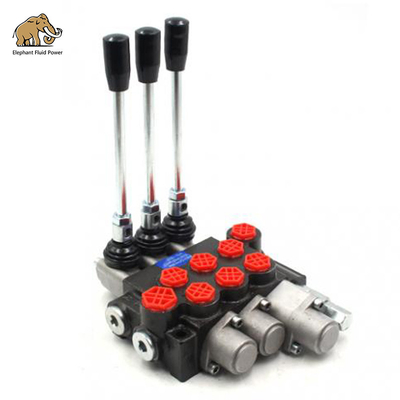

Chinese Factory Track Blender Control Hydraulic Directional Control Valve Dcv20 Dcv40 Dcv60 Dcv140 In Stock
control valve pdf Youli DCV140
Product details:
All the castings are made with Shell-Moulding, in special graphite cast iron. This kind of cast iron is of high resistance, and it allows having, with the same external overall dimensions, bigger internal gallery, and lower pressure drops.
All spools are made in high resistance steel, nickel plated, radial balanced and with special notches in order to have a better performance, they are completely interchangeable.
Specifiions:
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
Specifiions:
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-6 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-8 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-8 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
Number of spools: 1-12
Flow: 40, 45, 60, 100, 140, 200
DCV directional control valve is designed for high pressure hydraulic system suchas drilling machine, sanitation, etc.
Auxiliary valve: over-load valve, anti-cavitation valve, combined valve, etc. (not for DCV40-45)
Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.

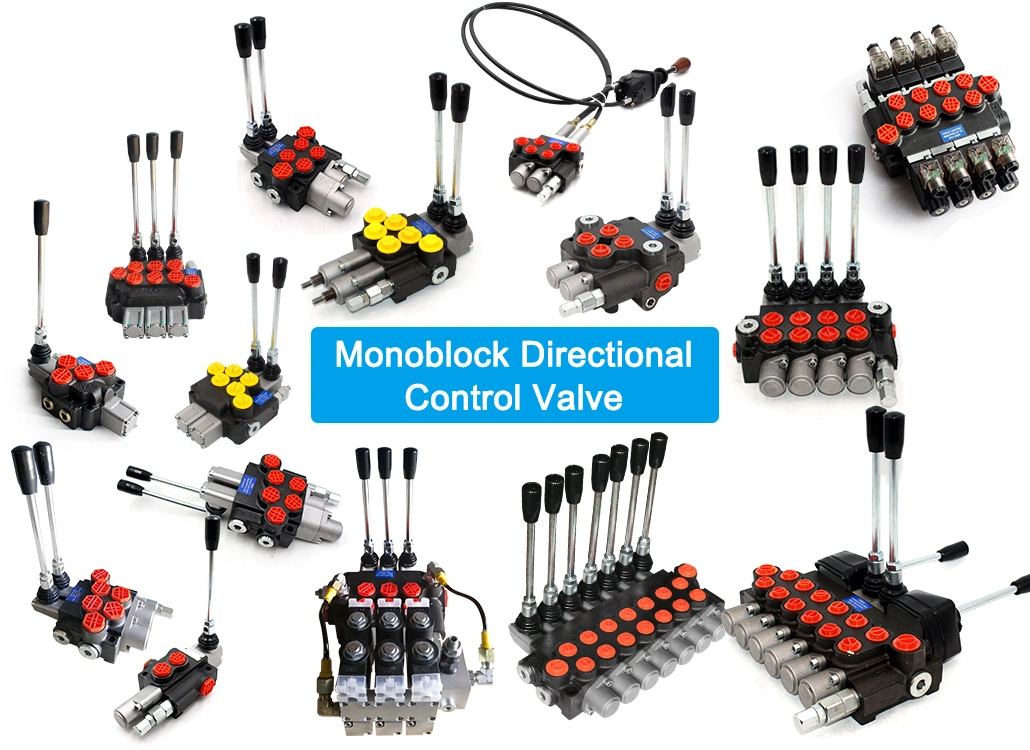

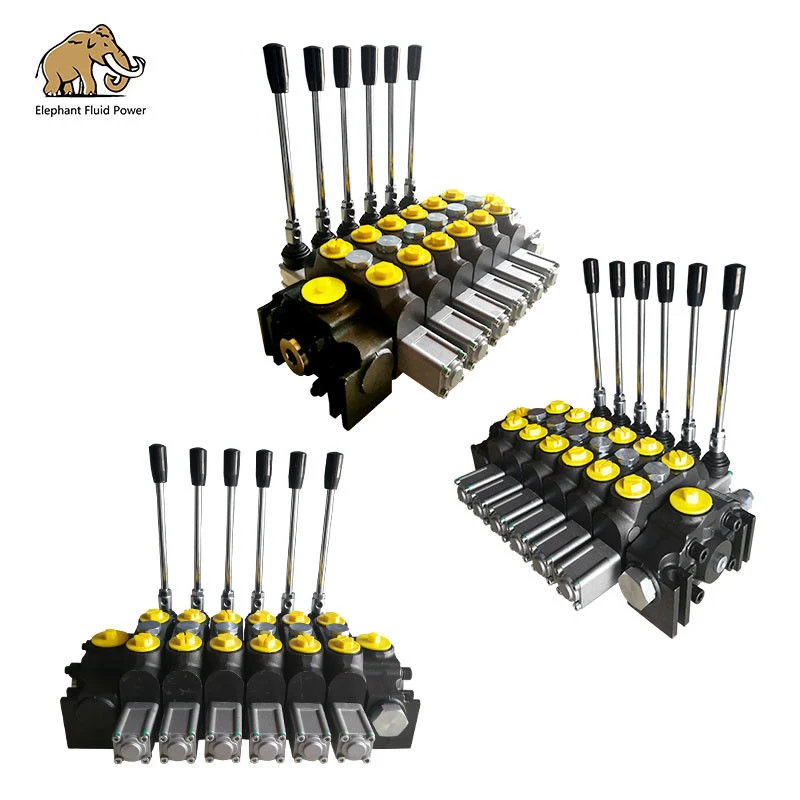

Structure: monoblock, sectional
Carry-over port as hydraulic source for other parts.
| 1. high pressure. |
| 2. compact construct. |
| 3. stable over load valve. |
| 4. performance and high universality. |
| 5. Auxiliary valve: over load valve, anti-cavitation valve, combined valves, etc. |
| 6. Spool function: A, O, Y, P, etc. |
| 7. Control type: manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc. |
| 8. Circuit type: parallel, series-parallel. |
| 9. Carry-over port as hydraulic source for other parts. |
| 10. Structure: Monoblock, sectional. |
