Product Details:
|
| Product Name: | DCV100 | Nominal Flow Rate: | 100L/min |
|---|---|---|---|
| Max Pressure: | 350 Bar | Operating Range: | 15-75 |
| Structure: | 1-12 Sections | Warranty: | 12 Months |
| High Light: | 350 Bar Sectional Hydraulic Control Valves,DCV60 Sectional Hydraulic Control Valves,DCV100 Sectional Valve |
||

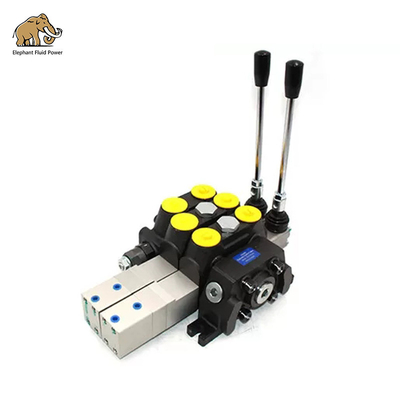

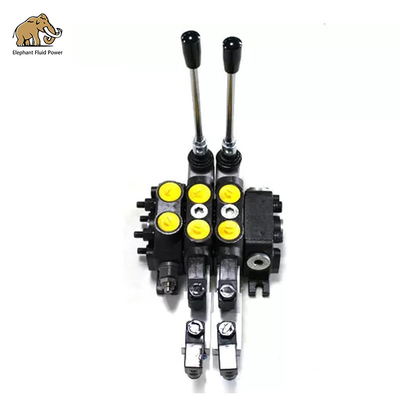

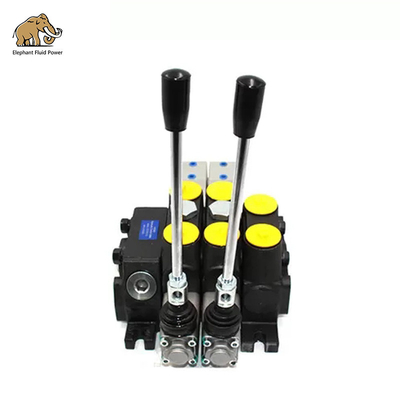

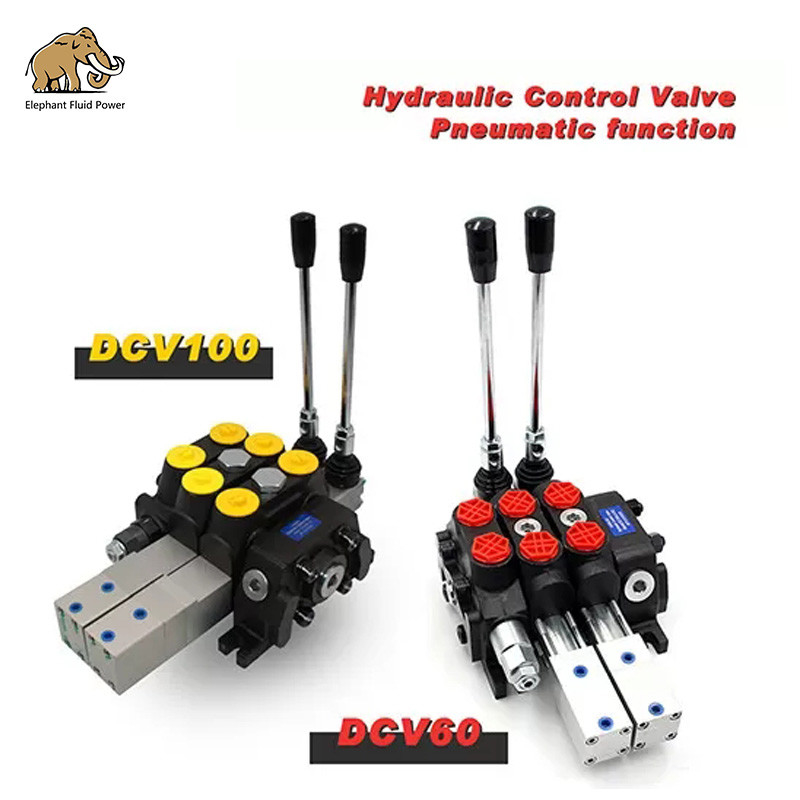

DCV60 DCV100 DCV140 Series Sectional Directional Control Valves
Specifiions:
| Nominal flow rate | 100 L/min | 26.2 US GPM | |
| Max.pressure | 350 bar | 5076 psi | |
| Operating range | 15~75 m㎡/S | 15~75 cst | |
| Viscosity | min. | 12 m㎡/S | 12 cst |
| max. | 400 m㎡/S | 400 cst | |
| Ambient temperature rang | -40°~80°C | -40°~176°F | |
| Structure | sectional:1~12 Sections | ||
1 Sectional types with 1 to 10 working sections
2 DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar;
3 DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar;
4 DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar;
5 Spool function options: O,P, Y, A and etc.
6 Nominal diameter: G3/8,G1/2; G3/4;
7 Model examples: DCV100-4OQ; DCV60-2OW.2OT; DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.

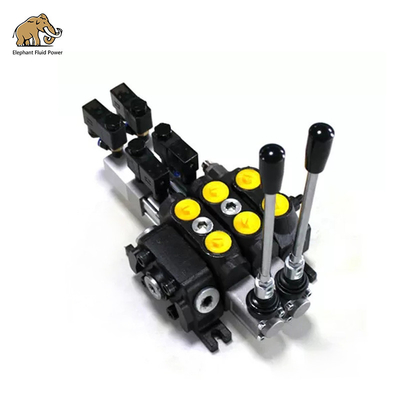

8 Lever side control: manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote control.
Other models
We have more distributor hydraulics (Directional control valve) for you, we produce, manufacture, export, provide you with high quali
Company Profile
ty, low price products, our products are very competitive, no matter what control method (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.) you need, any flow (40 liters - 140 liters available), any size (1 spool to 12 spool available), Please contact us for the best offer.
