Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date

Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date

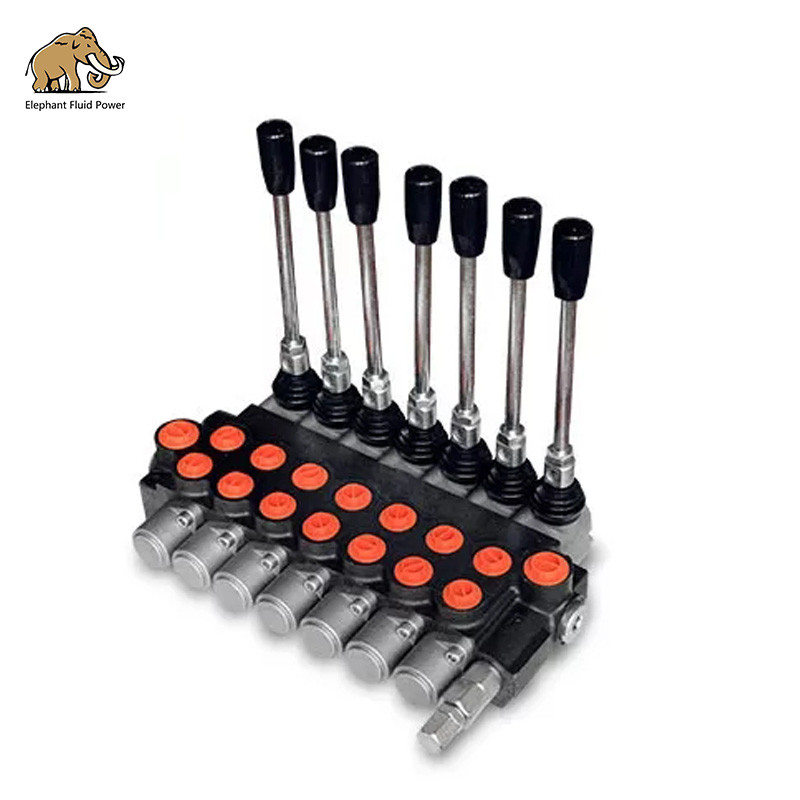

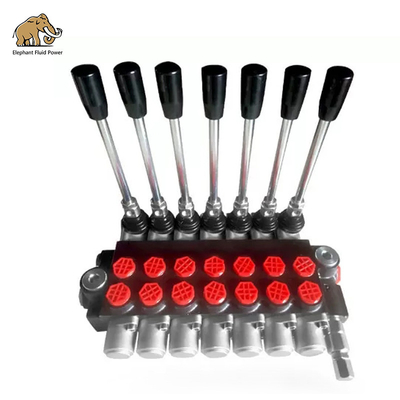

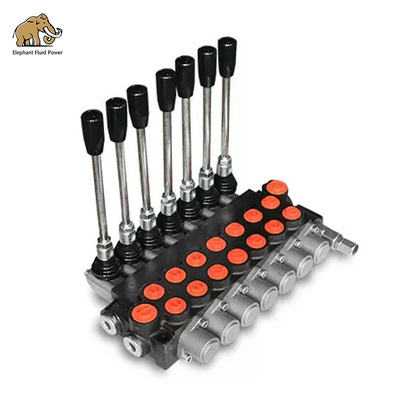

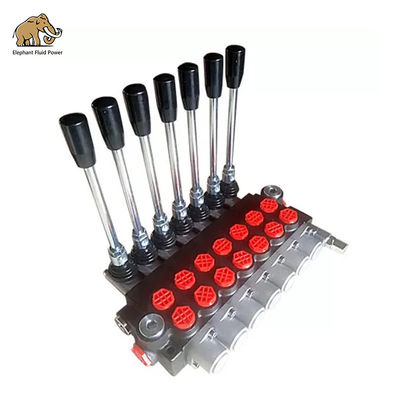

Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date

Large Image :  Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE
Model Number: 1P40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 sets/month

Pneumatic Control Monoblock Hydraulic Directional Valve 3 Spool 13 Gallons / Minute Date

Description
Meterial: Cast,Ductile Iron, Steel, Bronze And Others Model: 7P40
Spool: 1,2,3,4,5,6 Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Name: Directional Control Valve Type: Hydraulic Vlave
Other Name: Sectional Valves Quality: High Quality
Warranty: 12-18 Months
High Light:

7p40 hydraulic directional valve

,

monoblock hydraulic directional valve

,

3 spool hydraulic directional control valve

7p40 spool hydraulic directional control valve pneumatic control 13 gallons / minute date





Product details:







Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

Р40 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

The use of P40 P80 valves has become commonplace in many industrial and manufacturing applications, such as; cranes, assembly lines, forestry equipment, mining trucks and excavators. In fact, there are high requirements for the use of this P40 P80 valve, so that it almost replaces almost all traditional mechanical hydraulic control directional valves in modern hydraulic control systems.



Specifications:


Nom. Pressure
(MPa)
Max.Pressure
(MPa)

Nom. Flow rate (L/min)

Back Pressure(MPa)
hydraulic oil
Tem.rang
(ºC)
Visc.rang
(mm2/S)
filtrating accuracy
(μm)
40 20 40 ≤1 -20~+80 10~400 ≤10





Monoblock valve Flow Nom. Pressure Spool
P40 40L/Min

E 16 MPa

F 20 MPa

1
P40 40L/Min

E 16 MPa

F 20 MPa

2
P40 40L/Min

E 16 MPa

F 20 MPa

3
P40 40L/Min

E 16 MPa

F 20 MPa

4
P40 40L/Min

E 16 MPa

F 20 MPa

5
P40 40L/Min   6
P80 80L/Min

E 16 MPa

F 20 MPa

1
P80 80L/Min

E 16 MPa

F 20 MPa

2
P80 80L/Min

E 16 MPa

F 20 MPa

3
P80 80L/Min

E 16 MPa

F 20 MPa

4
P80 80L/Min

E 16 MPa

F 20 MPa

5
P80 80L/Min

E 16 MPa

F 20 MPa

6
P120 120L/Min

E 16 MPa

F 20 MPa

1
P120 120L/Min

E 16 MPa

F 20 MPa

2
P120 120L/Min

E 16 MPa

F 20 MPa

3
P120 120L/Min

E 16 MPa

F 20 MPa

4
P120 120L/Min

E 16 MPa

F 20 MPa

5
P120 120L/Min

E 16 MPa

F 20 MPa

6



Application:


This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.





BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
    M27 M27X2



Application:


This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
