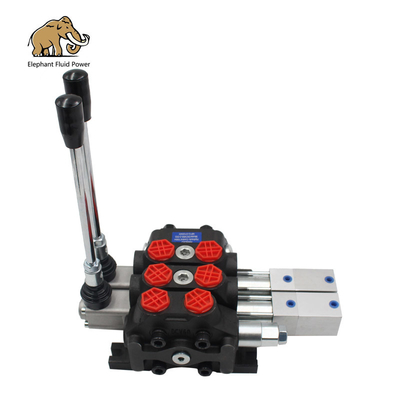

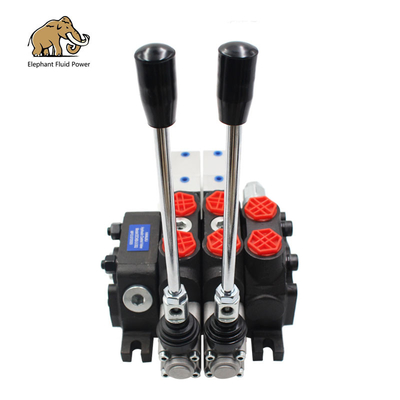

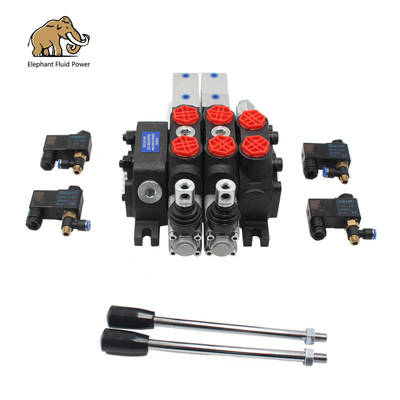

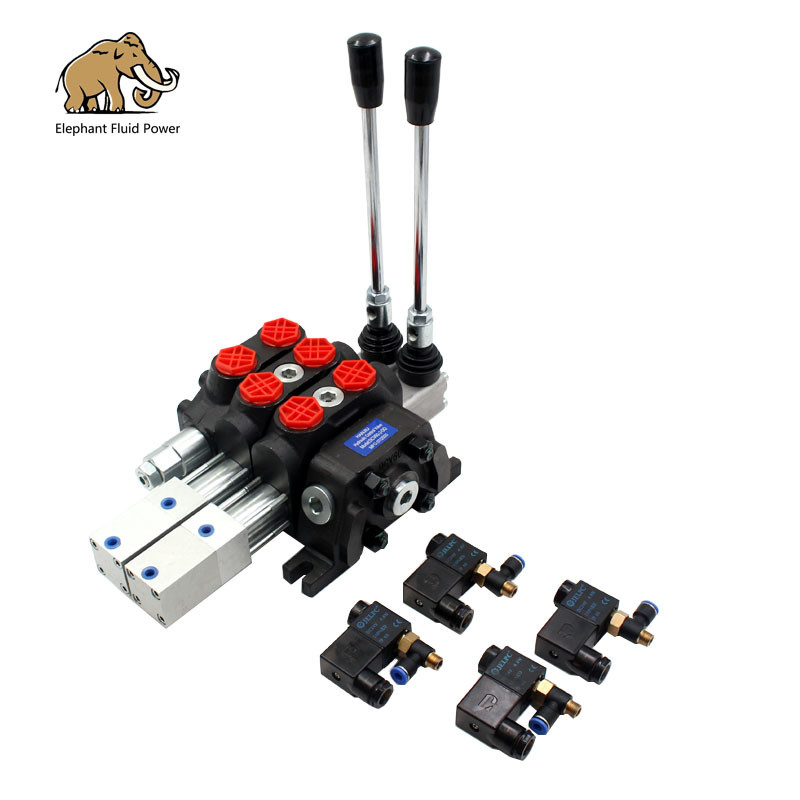

CE Dcv60 Hydraulic Directional Valve 350 Bar

CE Dcv60 Hydraulic Directional Valve 350 Bar
CE Dcv60 Hydraulic Directional Valve 350 Bar CE Dcv60 Hydraulic Directional Valve 350 Bar CE Dcv60 Hydraulic Directional Valve 350 Bar CE Dcv60 Hydraulic Directional Valve 350 Bar

Large Image :  CE Dcv60 Hydraulic Directional Valve 350 Bar

Product Details:
Place of Origin: China
Brand Name: Elephant fluid power
Model Number: DCV60-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000 Sets per month
Contact Now

CE Dcv60 Hydraulic Directional Valve 350 Bar

Description
Rated Flow: 60L/min Rated Flow 40L/min 10.5 US GPM Max Pressure: 350 Bar
Working Range: 15 - 75 Mm2/S Min Value: 12 Mm2/S
Max Value: 400 Mm2/S Ambient Temperature Range: -40 - 80 ºC
Monoblock:: 1 - 12 Sections
Highlight:

dcv60 hydraulic directional valve

,

350 bar hydraulic directional valve

,

elephant fluid power dcv valve



Dcv60 Hydraulic Pneumatic Control Valve 2 Sections

Elephant Fluid Power provide Dcv60 Hydraulic Pneumatic Control Valve 2 Sections


DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.

DVC60 Specifiion:

Rated Flow   60L/min 15.8 US GPM
Max Pressure   350 bar 5076psi
Viscosity Working Range 15 - 75 mm2/S 15 - 75 cst
Min Value 12 mm2/S 12 cst
Max Value 400 mm2/S 400 cst
Ambient Temperature Range   -40 - 80 ºC -40 - 176 °F
Structure   Sectional: 1 - 12 sections








Functions and features:

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
3. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.
4. Work group number can be added according to demand, 7 spools at most.
5. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;




DCV directional control valve have the features of below:
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional




DCV Other Series :

DCV valve Flow Nom. Pressure Spool
DCV 20 20L/Min 100 ~315 BAR 1-6 sections
DCV 40 40L/Min 100 ~315 BAR 1-8 sections
DCV 45 45L/Min 100 ~315 BAR 1-8 sections
DCV 60 60L/Min 100 ~315 BAR 1-12 sections
DCV 100 100L/Min 100 ~315 BAR 1-12 sections
DCV 140 140L/Min 100 ~315 BAR 1-12 sections
DCV 200 200L/Min 100 ~315 BAR 1-12 sections






Shipping and Packing:
Shipping Mode: By air, by sea ,by express (DHL,Fedex, ,etc.)
Standard Shipping Time: By air within 5-6 days. By DHL: within 4-5days.by sea about 1 month
Standard Packing: Carton or wooden
Special Packing: We can discuss and support you.




Our Company:

Elephant Fluid Power Technical team has many years of operation and service experience,Provide customers with professional hydraulic system solutions,Quality assurance of quality products,We have many years of experience in purchasing and sales to prevent counterfeit and shoddy products,1-7 days, fixed sales engineer, agreement specific delivery period,Years of industry experience, sales, repairs, commissioning, maintenance,Super fast one-stop professional service,Provide technical response within 2 hours of standard warranty,Effectively guarantee the quality of hydraulic products,Worry-free delivery time 1300 kinds in stock,One-stop service, directly with the manufacturer,Provide complete hydraulic system solutions,Comprehensive guidance to provide technical services within 1 working day,Rigorous processing and excellent quality.

Elephant Fluid Power Company is a hydraulic components manufacturer, We produce and supply only top quality, defect free hydraulic components that you can rely on. The reason why more and more customers choose us is because it has obvious advantages over other brands in terms of delivery, service, quality and more margin.

CE Dcv60 Hydraulic Directional Valve 350 Bar 0
CE Dcv60 Hydraulic Directional Valve 350 Bar 1
