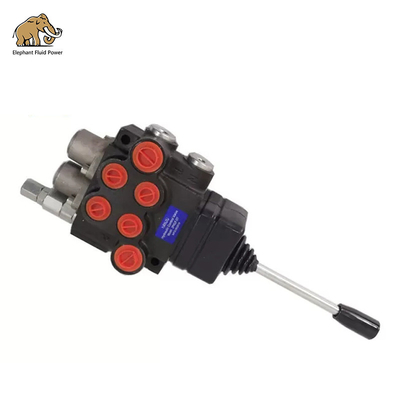

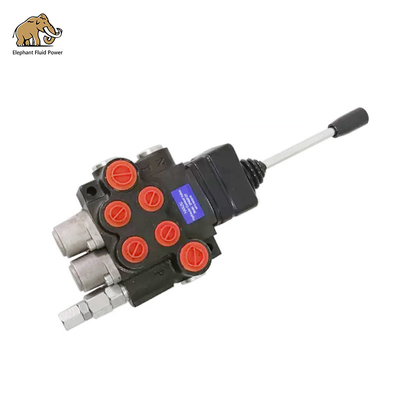

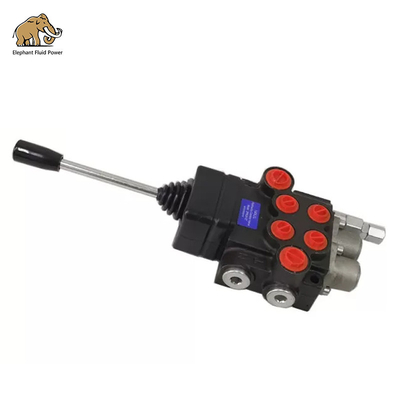

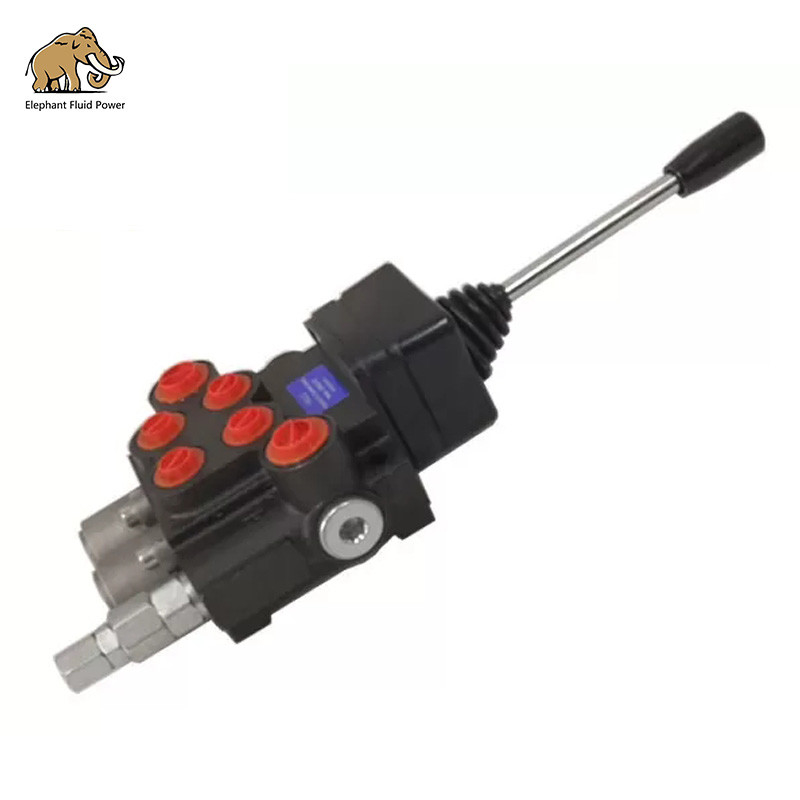

Industrial Control Valve P40 Series Monoblock Directional contral Valve
The use of P40 P80 valves has become commonplace in many industrial and manufacturing appliions, such as; cranes, assembly lines, forestry equipment, mining trucks and excavators. In fact, there are high requirements for the use of this P40 P80 valve, so that it almost replaces almost all traditional mechanical hydraulic control directional valves in modern hydraulic control systems.
P40 Specifiion:
| Rated Flow | 40L/min | 10.6 US GPM | |
| Max Pressure | 250 bar | 3626 psi | |
| Viscosity | Working Range | 15 - 75 mm2/S | 15 - 75 cst |
| Min Value | 12 mm2/S | 12 cst | |
| Max Value | 400 mm2/S | 400 cst | |
| Ambient Temperature Range | -40 - 80 ºC | -40 - 176 °F | |
| Structure | Monoblock: 1 - 7 sections | ||
| Inner check valve | The check valve inside the valve body is to insure the hydraulic oil will not be returned. |
| Inner relief valve | The relief valve inside the valve body is able to adjust the hydraulic system working pressure. |
| Oil way | Parallel circuit, power beyond option |
| Control Way | Manual control, pneumatic control, hydraulic and electric control for optional. |
| Valve construction | monoblock construction, 1-6 levers. |
| Spool Function | O,Y, P,A. |
| Option | Hydraulic lock is available to be added on A and B port. |
| Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc | |
| Monoblock valve | Flow | Nom. Pressure | Spool |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
1 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
2 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
3 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
4 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
5 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
6 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
1 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
2 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
3 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
4 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
6 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
1 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
2 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
3 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
4 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
5 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
6 |
