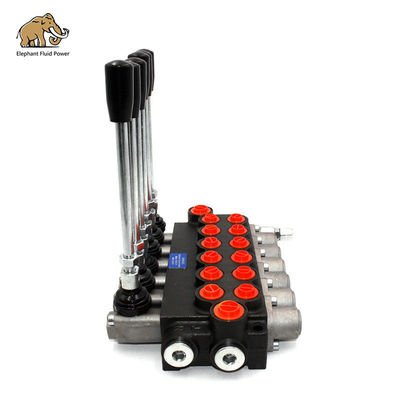

Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports

Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports
Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports

Large Image :  Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Model Number: 6P40
Certifiion: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 sets per month

Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports

Description
Model: 6P40 Spool: 1, 2, 3, 4, 5, 6, 7 ...
Flow: 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... Pressure: 31.5Mpa
High Light: Hydraulic Control Valve, Hydraulic Monoblock Valves Warranty: 12 Months
Appliions: Cranes Telehandlers Retro-excavators And Compactors. Function: Direction Control
Installation: Threaded Cartridge Type: Directly Operated Type
Transport Package: Carton Packing
High Light:

11 gpm joystick loader valve

,

sae ports joystick loader valve

,

6 spool joystick loader valve



Joystick Hydraulic Directional Control Monoblock Valve For Tractor Loader, 6 Spools, 11 Gpm, SAE Ports





Product description:
Monobloc Hydraulic Directional Control Valve for Tractor Loader with Joystick, 6 Coils (Single Floating Reel Optional), 11 GPM

SKU: 6P40



This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow in hydraulic cylinders or hydraulic motors.



Common uses:
Operate hydraulic cylinders (double acting or single acting)
Operate hydraulic motors (reel "D" required)
Install rear remotes on a tractor



Profits:
6-spool valve with compact design that allows installations in tight areas
All spools are standard double acting with spring return to neutral, which are ideal for double acting cylinders
Used for open center systems (Pump to tank flow) - closed center option available
Anti-drop load checks on each reel
The precision and hard chrome spools ensure a long service life.
High-strength cast iron one-piece construction
SAE O-ring ports ensure a solid seal and prevent clogging
Capable of closed center or Power Beyond (conversion plug required)
Vertical or horizontal handle mounting
Adjustable relief valve range: 1500 to 3625 PSI
Used as single acting motor or spool possible (SAE # 8 port plug required)



Characteristics:
Maximum operating pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow: 11 GPM (40 l / min)
Work Ports A & B: # 8 SAE O-Ring Thread (3/4 "-16)
Inlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
Outlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
2 - 5/16 "mounting holes
Single floating reel option available to raise and lower the bucket
Made in China
Brand: HANJIU

More related models:



P40 Monoblock
P80 Monoblock
HSV6(12V/24V) Sectional
DCV 40 (1-6)
DCV 45 (1-8)
Monoblock
DCV60 (1-12) Sectional
DCV100 (1-12) Sectional
DCV140 (1-12) Sectional
DCV200 (1-12) Sectional


Elephant Fluid Power have more distributor hydraulics (Directional control valve) for you, we produce, manufacture, export, provide you with high quality, low price products, our products are very competitive, no matter what control method (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.) you need, any flow (40 liters - 140 liters available), any size (1 spool to 12 spool available), Please contact us for the best offer.







Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports 0Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports 1Tractor Joystick Loader Valve 6 Spools 11 Gpm Sae Ports 2


Product:

★Auxiliary valve: over-load valve, anti-cavitation valve,combined valve, etc. (not for DCV40-45)
★Control type: manual, joystick, cable, pneumatic, solenoid,electro-pneumatic, electro-hydraulic, etc.
★Structure: monoblock, sectional
★Carry-over port as hydraulic source for other parts.







DCV directional control valve have the features of below:

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional








Why chose us:

Quality : High quality
Price : Very competitive
Servicvs : The best
Delivery : Fast delivery







Our Other Hydraulic Products:

Hydraulic piston pump and spare parts for sale Hydraulic vane pump and spare parts for sale
Hydraulic piston motor and spare parts for sale Hydraulic orbital motor for sale
Hydraulic steering unit for sale Hydraulic gear pump for sale
Directional control valve






Our Company:

Elephant Fluid Power Technical team has many years of operation and service experience,Provide customers with professional hydraulic system solutions,Quality assurance of quality products,We have many years of experience in purchasing and sales to prevent counterfeit and shoddy products,1-7 days, fixed sales engineer, agreement specific delivery period,Years of industry experience, sales, repairs, commissioning, maintenance,Super fast one-stop professional service,Provide technical response within 2 hours of standard warranty,Effectively guarantee the quality of hydraulic products,Worry-free delivery time 1300 kinds in stock,One-stop service, directly with the manufacturer,Provide complete hydraulic system solutions,Comprehensive guidance to provide technical services within 1 working day,Rigorous processing and excellent quality.

Elephant Fluid Power Company is a hydraulic components manufacturer, We produce and supply only top quality, defect free hydraulic components that you can rely on. The reason why more and more customers choose us is because it has obvious advantages over other brands in terms of delivery, service, quality and more margin.
