Product Details:
|
| Material: | Stainless Steel | Rated Flow: | 200L/M |
|---|---|---|---|
| Relief Pressure: | 30Mpa | Lever: | 1-12 Bars |
| Warranty: | 12 Months | Control: | Manual Or As Customized |
| High Light: | dcv200 hydraulic directional control valve,200l/min flow hydraulic directional control valve,30mpa hydraulic directional valve |
||

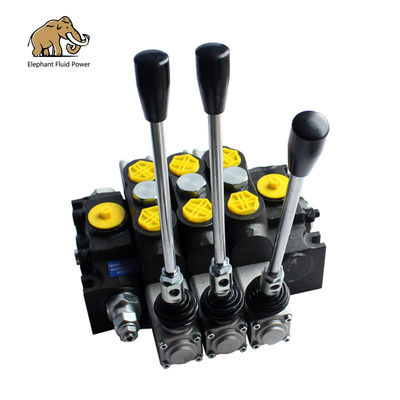

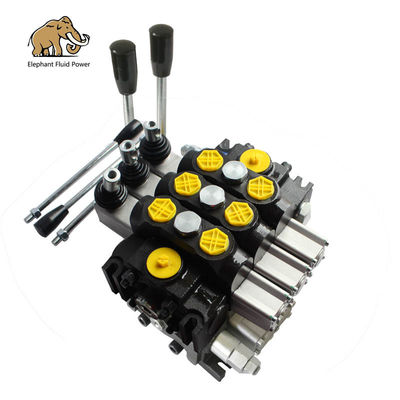

DCV200s Hydraulic Sectional Directional Control Valves For Construction Machine With Pneumatic Control
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
DCV directional control valve have the features of high pressure, compact construct, stable over load valve performance and high universality.
1.Optional valve:relief valve, over load valve, anti-cavitation valve.
2.Spool function:A, O, Y, P, etc.
3.Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, dual control, etc.
4.Circuit type:parallel
5.C port (oil bridge) as hydraulic source for other parts
6.Monoblock structure
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
Appliion:
This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
Advantage:
Relief valve, overload valve, one-way valve, oil supplement valve, etc. can be installed on the valve according to customer requirements. The overflow valve can adjust the system pressure, the overload valve controls the working pressure of a single oil chamber, and the one-way valve prevents the oil from flowing back. The reversing slide valve has A, O, Y, P, etc. functions. Can be combined arbitrarily. The reversing handle has two installation forms, which is convenient for operation in different directions
The valve uses parallel oil circuits. The pressure output port is designed to connect with other hydraulic components to provide power source. The specially designed sealing method makes the valve sealing performance better.
