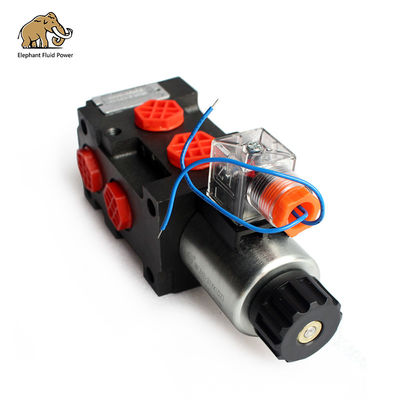

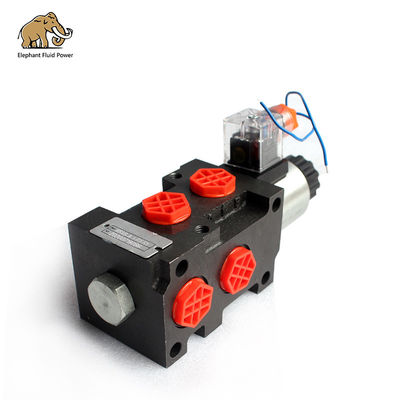

HSV6 Hydraulic Directional Control Valve Spool 13 GPM

HSV6 Hydraulic Directional Control Valve Spool 13 GPM
HSV6 Hydraulic Directional Control Valve Spool 13 GPM HSV6 Hydraulic Directional Control Valve Spool 13 GPM HSV6 Hydraulic Directional Control Valve Spool 13 GPM HSV6 Hydraulic Directional Control Valve Spool 13 GPM HSV6 Hydraulic Directional Control Valve Spool 13 GPM HSV6 Hydraulic Directional Control Valve Spool 13 GPM

Large Image :  HSV6 Hydraulic Directional Control Valve Spool 13 GPM

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Model Number: HSV6-A-1-P2-S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 Days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 100000 Set/month

HSV6 Hydraulic Directional Control Valve Spool 13 GPM

Description
Name: Hydraulic Direction Valve Type: HSV6-A-1-P2-S1
Max Flow: 50LPM Flow Rating: 13 GPM
Oil Port: 7/8-14UNF Nominal Pressure: 25MPa (3625 PSI)
Appliion: Agricultural Machinery Other Name: Sectional Valves
High Light:

HSV6 hydraulic directional control valve

,

13 GPM hydraulic directional control valve

,

13 GPM hydraulic spool valve

HSV6-A-1-P2-S1 Hydraulic Direction Valve Sectional Valves Control Valve







Product Description:



HSV6 series selection valve can be realized in the different flow pressure between the oil road switch.

Multiple directional valves can be connected to feed oil into or out of different devices. Can also be connected to the oil pump, the hydraulic oil to two different oil routes.



Model: HSV6-A, 1-Spool

Max Flow: 50LPM

Flow Rating: 13 GPM

Nominal Pressure: 25MPa (3625 PSI)

Voltage: DC12V, 3-plug

Oil Port: 7/8-14UNF

6 Ports with #10 SAE (3/4"-16) Thread

Package size: 23×16×13cm

Gross weight: 3kg





Specifiion:



parameter value
Number of Work Sections from 1 to 3
Max working pressure 315 bar
Operating pressure 210 bar
Rated flow 50 l / min
Working temperature from -30 ° С to + 50 ° С
Fluid viscosity from 20 to 400 mm 2 / s
Fluid temperature from -20 ° С to + 70 ° С
Filtration Grade 9 NAS1638
Supply Voltage / Power Consumption 12VDC * / 36W and 24VDC * / 29W
Switching frequency max 15,000 times per hour
Duty cycle one hundred%



HSV6 Hydraulic Directional Control Valve Spool 13 GPM 0






HSV6 Hydraulic Directional Control Valve Spool 13 GPM 1

HSV6 Hydraulic Directional Control Valve Spool 13 GPM 2
