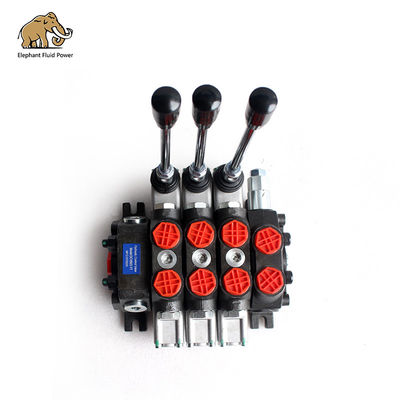

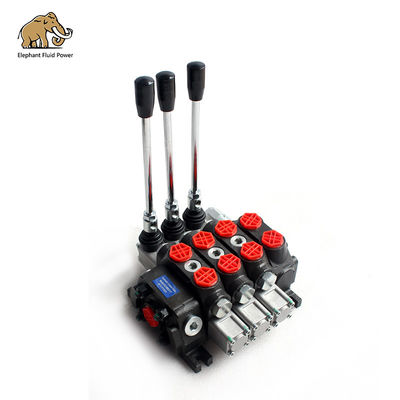

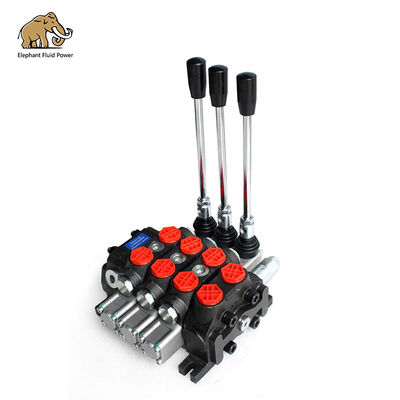

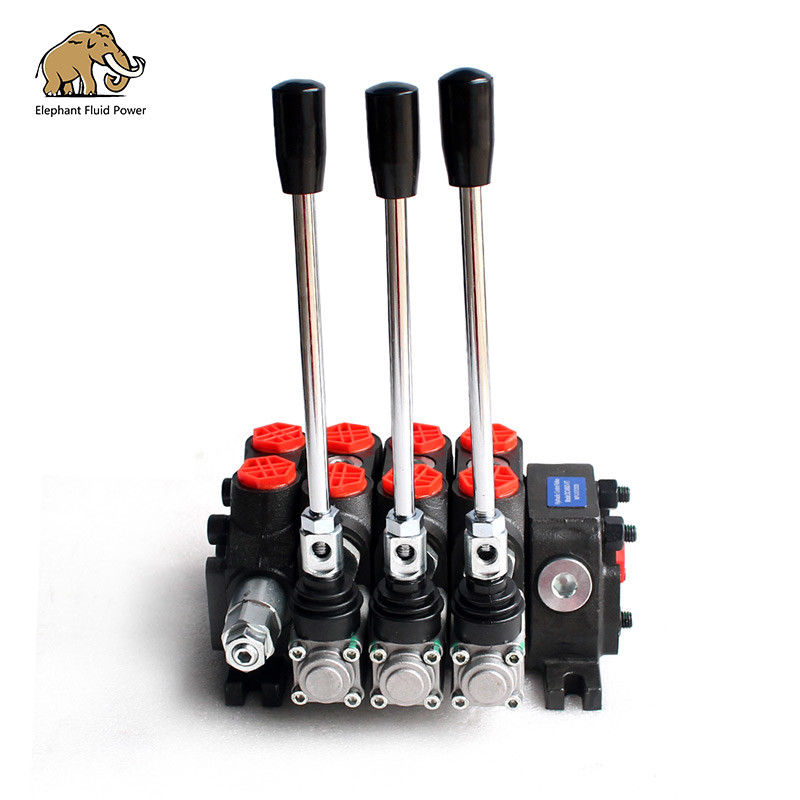

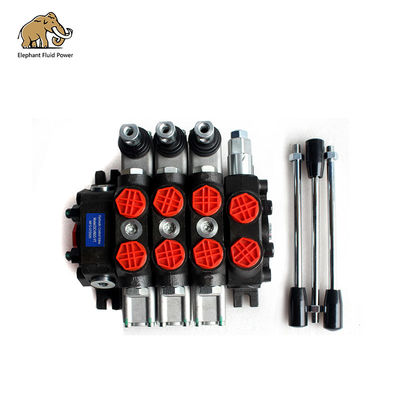

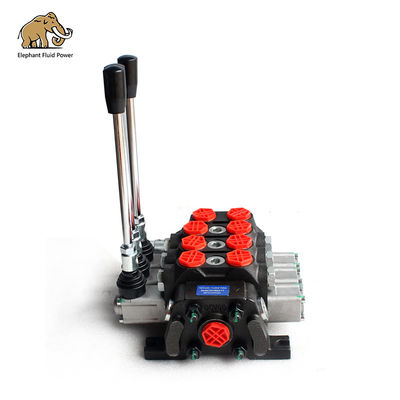

DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control

DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control
DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control

Large Image :  DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: ISO9001,CE
Model Number: DCV60-3-YT-YW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 Days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 100000 Set/month

DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control

Description
Name: Hydraulic Direction Valve Type: DCV60-3-YT-YW
Spool: 3 Spool Warranty: 12-18 Months
Original: Made In China Advantage: Fast Delivery,Advantage Price
Flow: 60lpm Other Name: Control Valve
High Light:

DCV60 Hydraulic Directional Valve

,

60lpm Hydraulic Directional Valve

,

60lpm three spool hydraulic valve

Hydraulic Direction Valve DCV Series Sectional Valves 3 Spool 60lpm Control Valve DCV60-3-YT-YW







Product details:



Model: DCV60-3-YT-YW

Flow: 60LPM

Lever: 3



1 Sectional types with 1 to 10 working sections

2 DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar;

3 DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar;

4 DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar;

5 Spool function options: O,P, Y, A and etc.

6 Nominal diameter: G3/8,G1/2; G3/4;

7 Model examples: DCV100-4OQ; DCV60-2OW.2OT; DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.

8 Lever side control: manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote control.





Specifications:



Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS



Nom. Pressure
(MPa)
Max.Pressure
(MPa)

Nom. Flow rate (L/min)

Back Pressure(MPa)
hydraulic oil
Tem.rang
(ºC)
Visc.rang
(mm2/S)
filtrating accuracy
(μm)
35 31.5 200 ≤1 -40~+80 10~400 ≤10



DCV valve Flow Nom. Pressure Spool
DCV 20 20L/Min 100 ~315 BAR 1-12 sections
DCV 40 40L/Min 100 ~315 BAR 1-12 sections
DCV 45 45L/Min 100 ~315 BAR 1-12 sections
DCV 60 60L/Min 100 ~315 BAR 1-12 sections
DCV 100 100L/Min 100 ~315 BAR 1-12 sections
DCV 140 140L/Min 100 ~315 BAR 1-12 sections
DCV 200 200L/Min 100 ~315 BAR 1-12 sections





DCV directional control valve have the features of below

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control 0


DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control 1

DCV60 Hydraulic Directional Valve Three Spool 60lpm Pneumatic Control 2
