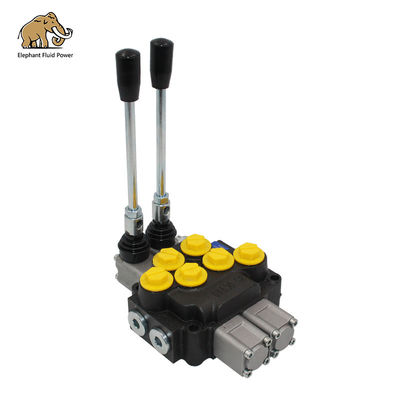

DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic

DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic
DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic

Large Image :  DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Model Number: DCV40-2-S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 Days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 100000 Set/month

DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic

Description
Name: Hydraulic Direction Valve Type: DCV40-2-S
Quality: High Quality Warranty: 12-18 Months
Original: Made In China Advantage: Fast Delivery,Advantage Price
Lever: 2 Other Name: Control Valve
High Light:

DCV 40 Hydraulic Directional Valve

,

2 Spool Hydraulic Directional Valve

,

2 Spool directional control valve

DCV Series Hydraulic Direction Valve 2 Spool Sectional Valves DCV40-2-S Control Valve







Product details:



Model: DCV40-2-S

Flow: 40LPM

Lever: 2



All the castings are made with Shell-Moulding, in special graphite cast iron. This kind of cast iron is of high resistance, and it allows having, with the same external overall dimensions, bigger internal gallery, and lower pressure drops.
All spools are made in high resistance steel, nickel plated, radial balanced and with special notches in order to have a better performance, they are completely interchangeable.





Specifiions:



Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS



Nom. Pressure
(MPa)
Max.Pressure
(MPa)

Nom. Flow rate (L/min)

Back Pressure(MPa)
hydraulic oil
Tem.rang
(ºC)
Visc.rang
(mm2/S)
filtrating accuracy
(μm)
35 31.5 200 ≤1 -40~+80 10~400 ≤10



DCV valve Flow Nom. Pressure Spool
DCV 20 20L/Min 100 ~315 BAR 1-12 sections
DCV 40 40L/Min 100 ~315 BAR 1-12 sections
DCV 45 45L/Min 100 ~315 BAR 1-12 sections
DCV 60 60L/Min 100 ~315 BAR 1-12 sections
DCV 100 100L/Min 100 ~315 BAR 1-12 sections
DCV 140 140L/Min 100 ~315 BAR 1-12 sections
DCV 200 200L/Min 100 ~315 BAR 1-12 sections





DCV directional control valve have the features of below

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic 0


DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic 1

DCV 40 Hydraulic Directional Valve Control 2 Spool Manual Pneumatic 2
