|Name:||Hydraulic Sectional Valves||Model:||1P40F-OT|
|Quality:||Good Quality||Warranty:||One Year|
|Original:||Made In China||Advantage:||Fast Delivery,Advantage Price|
QW electric directional control valve,
1 Spool electric directional control valve,
QW 1 spool hydraulic control valve

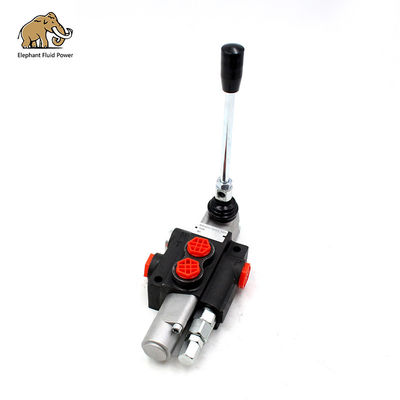

Hydraulic Direction Valve 1P40F-QW For Agricultural Machinery 1 Spool Control Valve Sectional Valves
P40 series valves with middle-high pressure monoblock construction is developed based on Europe
P40 series are economical monoblock directional control valves with various applications and features of compact structure,stable performance,low price and high universality.
Functions and features
1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
3. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.
4. Work group number can be added according to demand, 7 spools at most.
5. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by
|Viscosity||12 ...800 mm2/s|
|Filtration||10 to NAS 1638|
|Max operating pressure||315 bar|
|Back pressure||50 bar|
|Nominal flow||40 l/min|
|Leakage(A,B-T)||15cm3/min at 120bar|
|Spool stroke||6 mm|
|Actuating force||< 200 N|
|Modification/ Spools||with 1 to 7
This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
