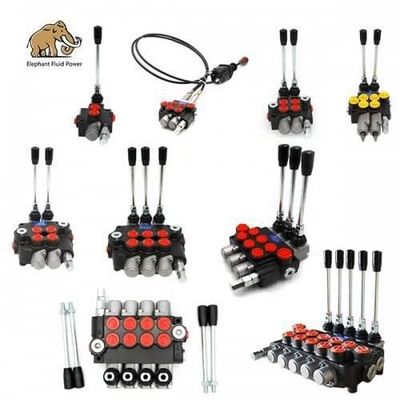

P40 Spool Control Valve Directional Types Ductile Iron

P40 Spool Control Valve Directional Types Ductile Iron
P40 Spool Control Valve Directional Types Ductile Iron P40 Spool Control Valve Directional Types Ductile Iron P40 Spool Control Valve Directional Types Ductile Iron

Large Image :  P40 Spool Control Valve Directional Types Ductile Iron

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE
Model Number: P40 P80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month

P40 Spool Control Valve Directional Types Ductile Iron

Description
Material: Cast,Ductile Iron, Steel, Bronze And Others Name: Hydraulic Direction Valve
Warranty: 12-18 Months Advantage: Good Price,Fast Delivery
Original: Made In China Type: Valve
Other Name: Sectional Valves Application: Agricultural Machinery
High Light:

P40 spool control valve

,

Ductile iron spool control valve

,

P40 directional control valve types

P40/80 Series DIRECTIONAL VALVES CONTROL VALVE Sectional Valves For Agriculture, Forestry



Product Detail





Manually or mechanically controlled hydraulic directional control valve Р40,P80 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

Р40,P80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

The use of P40 P80 valves has become commonplace in many industrial and manufacturing applications, such as; cranes, assembly lines, forestry equipment, mining trucks and excavators. In fact, there are high requirements for the use of this P40 P80 valve, so that it almost replaces almost all traditional mechanical hydraulic control directional valves in modern hydraulic control systems.



We are a hydraulic components manufacture, We produce and supply only top quality, defect free hydraulic components that you can rely on. The reason why more and more customers choose US is because it has obvious advantages over other brands in terms of delivery, service, quality and more margin.







Specification:



Nominal Flow: 40L/min Max 40L/Min, Max Working Pressure 315Bar
Operation Methods: Pneumatic Control, Electrical and Pneumatic control, Electric and hydraulic Control, Remote Control
Positioning Return Modes:   Ball locking; Spring Return
Spool Functions: O A Y etc
Thread: G1/2; G3/4;M18*1.5;7/8-14UNF;3/4-16UNF
Oil Way: Parallel Circuit, Power Beyond Option
Application: Agricultural tractor, Sanitation Machines, etc





Temperature range

-20℃---+80℃

Viscosity

10---400 mm2/s

Fluid temperature

-15℃---+80℃

Filtration

10 to NAS 1638

Max operating pressure

315 bar

Back pressure

50 bar

Nominal flow

40 l/min

Leakage(A,B-T)

15cm3/min at 120bar

Spool stroke

6 mm

Actuating force

< 200 N

Modification/ Spools

with 1 to 7





Application:


This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.





Advantage:



Relief valve, overload valve, one-way valve, oil supplement valve, etc. can be installed on the valve according to customer requirements. The overflow valve can adjust the system pressure, the overload valve controls the working pressure of a single oil chamber, and the one-way valve prevents the oil from flowing back. The reversing slide valve has A, O, Y, P, etc. functions. Can be combined arbitrarily. The reversing handle has two installation forms, which is convenient for operation in different directions

The valve uses parallel oil circuits. The pressure output port is designed to connect with other hydraulic components to provide power source. The specially designed sealing method makes the valve sealing performance better

P40 Spool Control Valve Directional Types Ductile Iron 0





P40 Spool Control Valve Directional Types Ductile Iron 1
