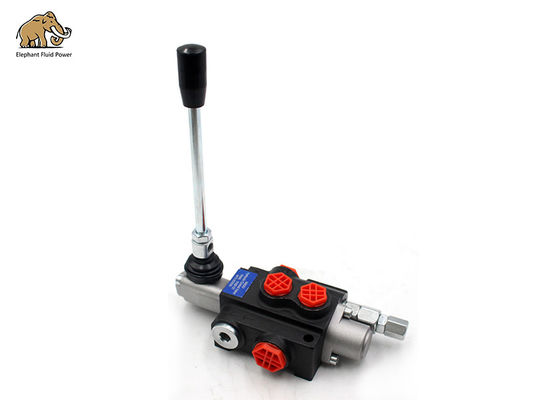

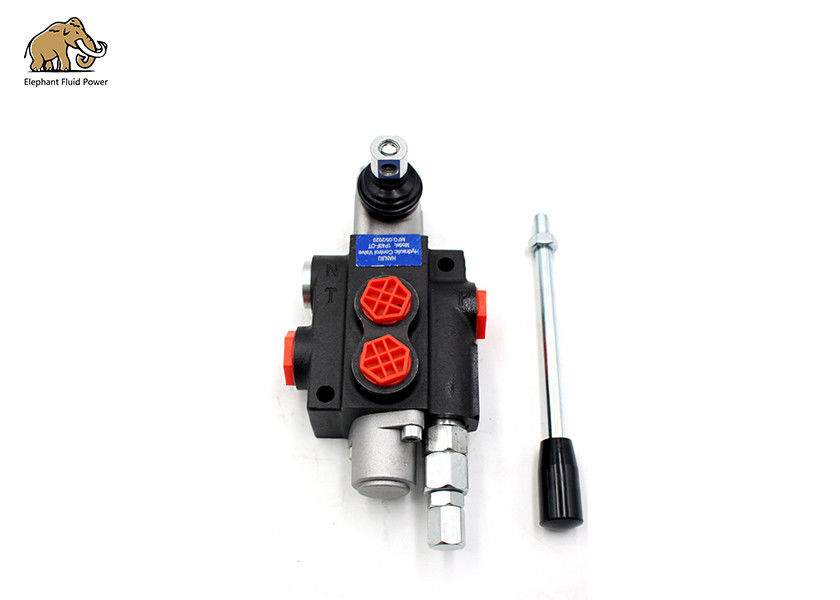

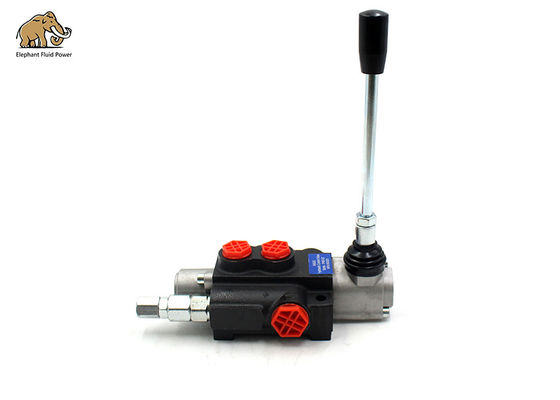

BSP Hydraulic Spool Valve Block

BSP Hydraulic Spool Valve Block
BSP Hydraulic Spool Valve Block BSP Hydraulic Spool Valve Block BSP Hydraulic Spool Valve Block

Large Image :  BSP Hydraulic Spool Valve Block

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE
Model Number: 1P40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 sets/month

BSP Hydraulic Spool Valve Block

Description
Meterial: Cast,Ductile Iron, Steel, Bronze And Others Model: 1P40
Spool: 1,2,3,4,5,6 Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Name: Directional Control Valve Type: Hydraulic Vlave
Other Name: Sectional Valves Quality: High Quality
Warranty: 12-18 Months
High Light:

BSP hydraulic spool valve block

,

1P40 hydraulic spool valve block

,

BSP 1 spool hydraulic control valve

1 Spool 40 Lt/Min BSP Ports Hydraulic Directional Control Valve With Spring Return Closed Center



Product details:



We are a hydraulic components manufacture, We produce and supply only top quality, defect free hydraulic components that you can rely on. The reason why more and more customers

This is a brand new, made in China, HANJIU brand high quality 80Lpm monoblock valve. Matching Badestnost/Walvoil/Youli/Galtech......it is designed for any application where you need to control 1 individual function or cylinder. It has a 'power beyond' port 'C', which gives the valve the abilty to supply another valve downstream pressure. You must select 'power beyond sleeve ' for this function to work. Please note, you MUST still use a tank return hose from BOTH valves. Standard this comes with a 'cylinder' spool. This will 'lock' your load/cylinder in place when in centre position. If using this to spin a motor, a motor spool is recommended. If your motor is spinning fast, the centrifugal force if shut of dead by a cylinder spool, may cause damage to various components of your system. A motor spool will allow the motor to spin to a slow stop. It will not lock in place. Lever action is Spring Return to Center.



Application:



These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.



Specifications





Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 250bar
Back pressure 50 bar
Nominal flow 80 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7





Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
