Product Details:
|
| Material: | Cast Iron | Appliion: | Concrete Pump Truck Repair |
|---|---|---|---|
| Quality: | 100% Interchange With Original | Delivery: | 7-10 Days |
| Warranty: | 12 Months | Standard: | International Standard |
| High Light: | OMH500 Hydraulic Agitator Motor,Putzmeister Concrete Pump Hydraulic Agitator Motor,Agitator OMH 500 Hydraulic Motor |
||

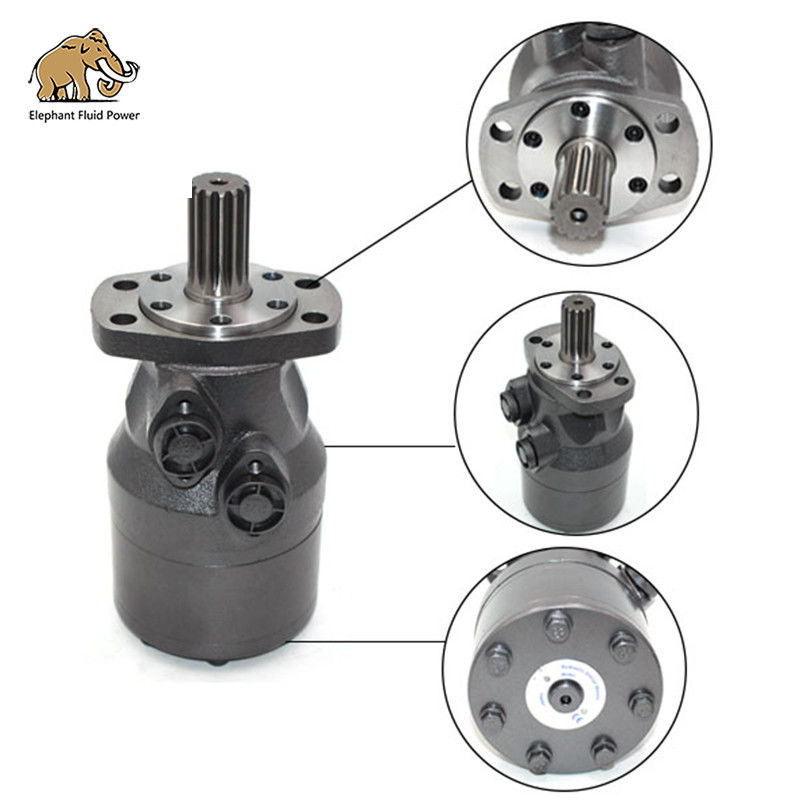

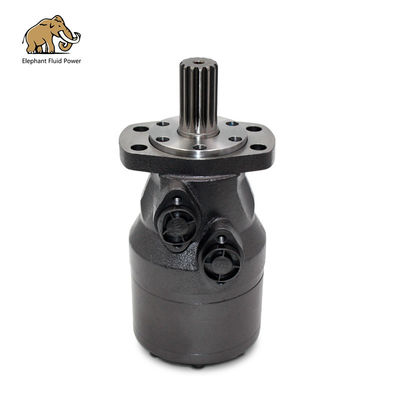

Putzmeister Concrete Pump Repair Maintainparts Hydraulic Motor Omh500 Agitator Motor
Elephant Fluid Power is a hydraulic expert for more than 20 years ,we can provide all major brands and series products,such as Rexroth,Danfoss,Eaton,Komatsu,Kawasaki.etc.They 100% interchange the original one without any problem.We can provide Putzmeister concrete pump use OMH500 agitator motor,improve your working efficience and profits,save your cost.
OMH 500 motor
CHARACTERISTICS
1 The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
2 With the axial oil distribution structur, it is of smaller size and less weight.
3 With two inner check valves, no drain connection.
4 With cycoid group with the roller, it has a small friction nd high mechanical efficiency.
TECHNICAL DATA
| TYPE | OMH-200 | OMH-250 | OMH-315 | OMH-400 | OMH-500 | |
| (ml/r) Displacement | 203 | 253.7 | 318.9 | 405.9 | 471.1 | |
Max.Pressure.Drop(Mpa) |
cont. | 15.5 | 15.5 | 13.5 | 10.5 | 8.5 |
| int. | 17.5 | 17.5 | 15.5 | 12.5 | 10 | |
| peak. | 20 | 20 | 19 | 15.5 | 13 | |
| Max.Torque(N.m) | cont. | 419 | 493 | 541 | 535 | 541 |
| int. | 473 | 557 | 621 | 636 | 637 | |
| peak. | 541 | 636 | 762 | 789 | 778 | |
| ()Speed.Range(cont.)(r/min) | 370 | 295 | 235 | 185 | 155 | |
| ()Max.Flow(cont.)(L/min) | 75 | 75 | 75 | 75 | 75 | |
| ()Max.Output.Power(cont.)(Kw) | 14 | 12.5 | 12.5 | 10 | 8.5 | |
| Weight(kg) | 10.5 | 11 | 11.5 | 12.5 |
13 |
|
We are famous manufacturers for hydraulic pump,hydraulic motor and pump parts,our hydraulic products has won a good reputation based on our quality,good quality,best price fast delivery and technical supports services,we have become the world famous brand in the world.
Our products have been sold to USA,Canada,Austrilia,Mexico,Brasil,Russia more than 80 couries,if you have any questions or enquiry you can contact us.
