Product Details:
|
| Highlight: | Eaton Vikers PVQ40 hydraulic pump,OEM hydraulic piston pump,factory price hydraulic pump replacement |
||
|---|---|---|---|

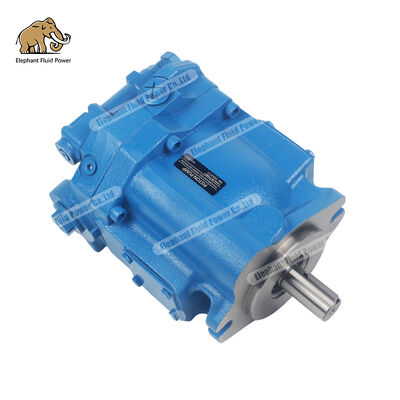

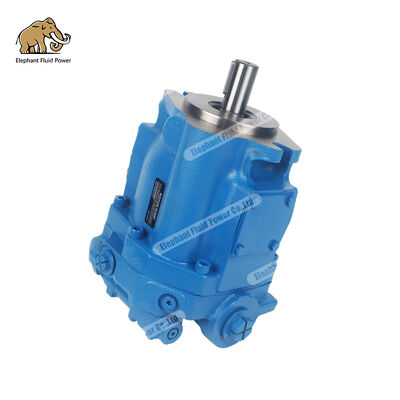

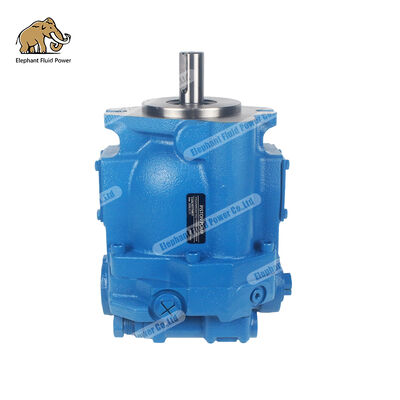

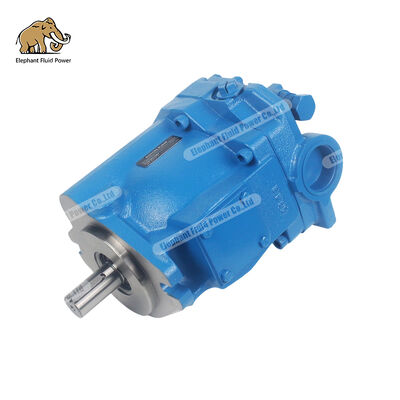

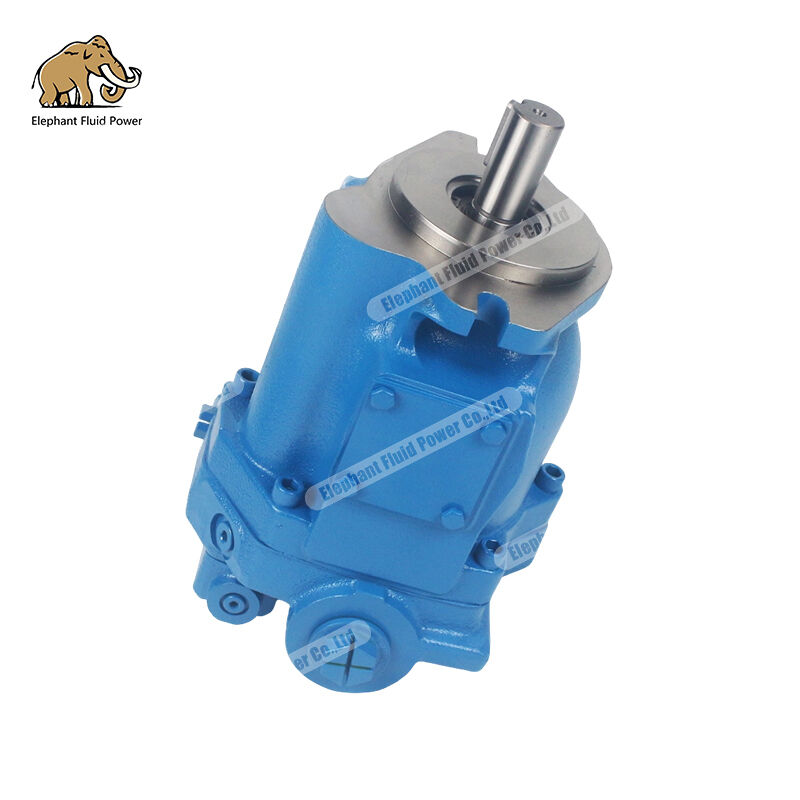

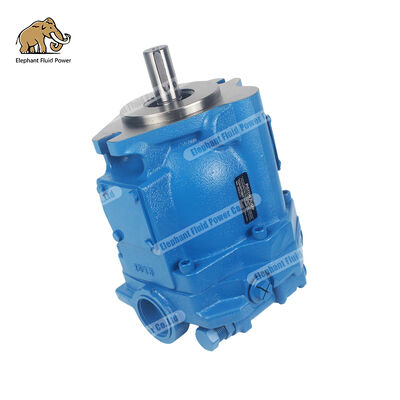

OEM Quality Eaton Vikers PVQ40 Hydraulic Pump Replacement Factory Price
Elephant Fluid Power provides OEM Quality Eaton Vikers PVQ40 Hydraulic Pump Replacement Factory Price. Our factory direct sales model ensures competitive pricing, fast lead times, and comprehensive one-year warranty coverage.
Description:
Eaton Vickers PVQ Series Piston Pumps
Variable Displacement, Quiet Series for Industrial AppliSAARions
PVQ10,PVQ13,PVQ20,PVQ25,PVQ32,PVQ40,PVQ45
Features
Operating pressure up to 210 bar (3000 psi)
Control type with compensator control “C” or “CM”, etc.
Displacement from 10, 5 to 45 cm3/r (0.64 to 2.75 in3/r)
Speed up to 1800 r/min
PVQs operate at quietness levels that meet today's demanding industrial conditions. The sound level of each unit approaches or is below that of the electric motor driving it. Sound is reduced by a patented timing arrangement that also produces low pressure“pulses” in the outlet flow. This leads to reduced tendencies for noise in systems using PVQs.
The PVQ series is capable of operating with many types of hydraulic fluid. Water-content and phosphate ester fluids can be accommodated, in addition to the typical petroleum based and synthetic fluids.
![]()
![]()
![]()
Application
– Fluid Cleanliness
– Hydraulic Fluids and Temperature Ranges
– Fire Resistant Fluids
– Installation and Start-up
Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)
| Model Code | Displacement
cm3/r (in3/r) |
Speed
r/min |
Max Pressure
bar (psi) |
Input Power at Max. Pressure kW (hp) |
Approx. Weight
kg (lb) |
| PVQ10 | 10.5 (0.643) | 1800 | 210 (3000) | 7,4 (10) | 7,2 (16) |
| PVQ13 | 13.8 (0.843) | 1800 | 140 (2000) | 6,5 (8.75) | |
| PVQ20 | 21.1 (1.290) | 1800 | 210 (3000) | 14,9 (20) | 14 (31) |
| PVQ32 | 32.9 (2.010) | 1800 | 140 (2000) | 15,6 (21) | |
| PVQ40 | 41,5 (2.500) | 1800 | 210 (3000) | 27,6 (37) | 20,6 (45.4) |
| PVQ45 | 45,1 (2.750) | 1800 | 186 (2700) | 28,3 (38) |
Key Advantages:
