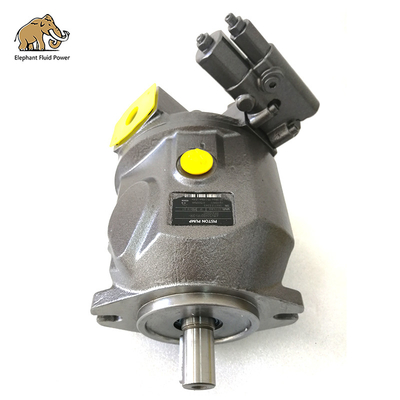

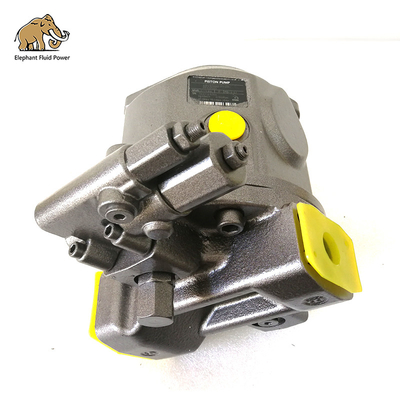

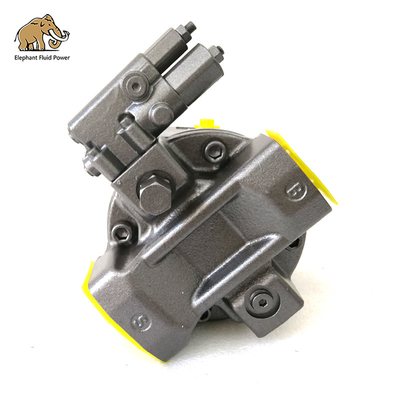

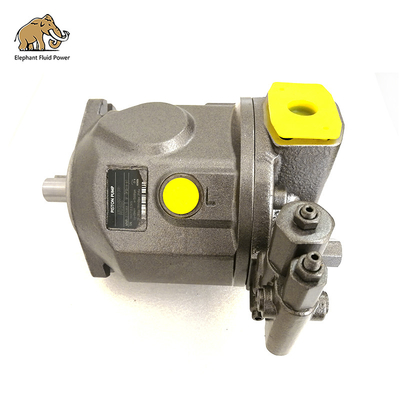

Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand

Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand
Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand

Large Image :  Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Model Number: A10VSO45
Certifiion: ISO,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden s
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 sets per month

Excavator Repair A10VSO45 Small Hydraulic Piston Pump Elephant Fluid Power Brand

Description
Material: Cast Iron Appliion: Concrete Pump Truck Repair
Quality: 100% Interchange With Original Delivery: 7-10 Days
Warranty: 12 Months Standard: International Standard
High Light:

A10VSO45 Small Hydraulic Piston Pump

,

Excavator Repair Small Hydraulic Piston Pump

,

A10VSO45 Piston Type Hydraulic Pump

Excavator Repair A10VSO45 Hydraulic Piston Pump Elephant Fluid Power Brand



Elephant Fluid Power is an expert of hydraulic piston pump and pump parts,we can provide all major series such as Rexroth,Danfoss,Eaton,Komatsu.,and other series.



Our A10VSO45 hydraulic pump are used in wheel loader, excavator, mobile pump truck, crane etc



Details

  • All-purpose medium pressure pump
  • Size 45
  • Nominal pressure 280 bar
  • Maximum pressure 350 bar
  • Open circuit

Features

  • Through drive for mounting of further pumps up to same nominal size
  • Low operating noise
  • Long service life
  • Short control response times
  • Excellent suction characteristics
  • 2 drain ports
  • Swashplate design

Technical data

Table of values

Size 18 28 45 71 88 100 140 45 71 100 140
Version Standard High speed
Displacement
geometric, per revolution
  Vg max cm³ 18 28 45 71 88 100 140 45 71 100 140
Nominal pressure   pnom bar 280 280 280 280 280 280 280 280 280 280 280
Maximum pressure   pmax bar 350 350 350 350 350 350 350 350 350 350 350
Maximum speed 1) at Vg max nnom rpm 3300 3000 2600 2200 2100 2000 1800 3000 2550 2300 2050
Flow at Vg max and nnom qV nom l/min 59 84 117 156 185 200 252 135 178 230 287
at Vg max and n = 1500 rpm qV 1500 l/min 27 42 68 107 132 150 210 68 107 150 210
Power at qV nom and pnom P kW 30 39 55 73 86 93 118 63 83 107 134
at qV 1500 and pnom P 1500 kW 12.6 20 32 50 62 70 98 32 50 70 98
Torque at Vg max and pnom M Nm 80 125 200 316 392 445 623 200 316 445 623
Weight (approx.)   m kg 12.9 18 23.5 35.2 35.2 49.5 65.4 23.5 35.2 49.5 65.4

*These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt
