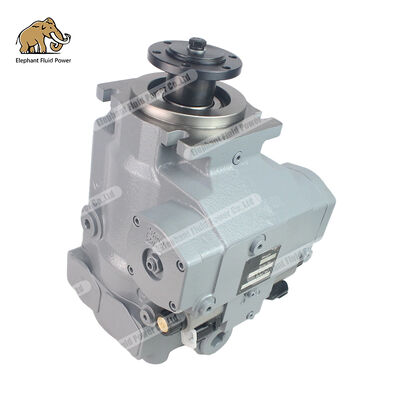

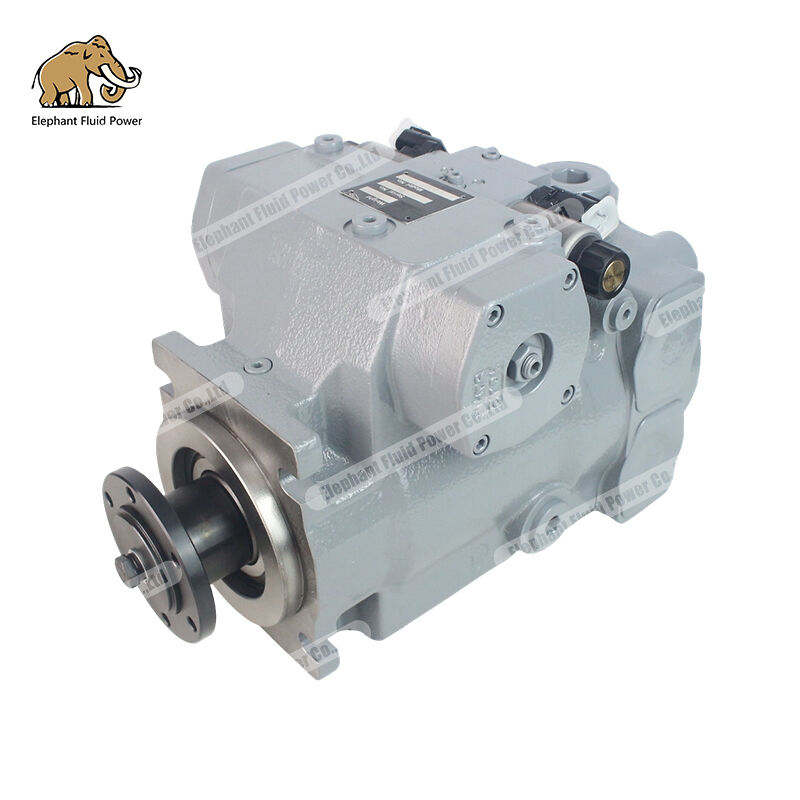

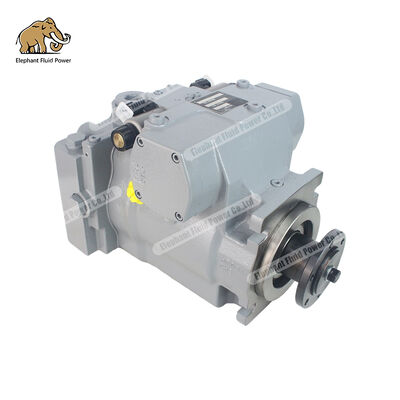

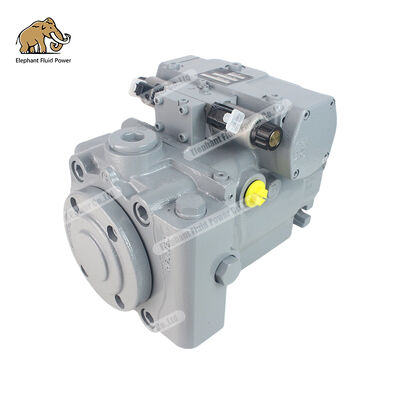

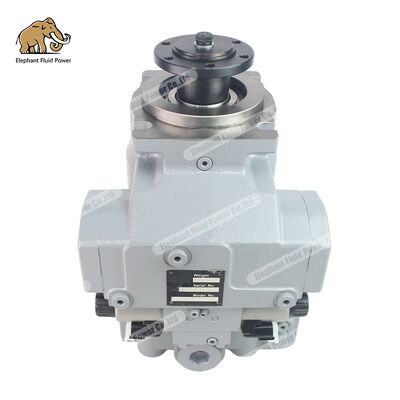

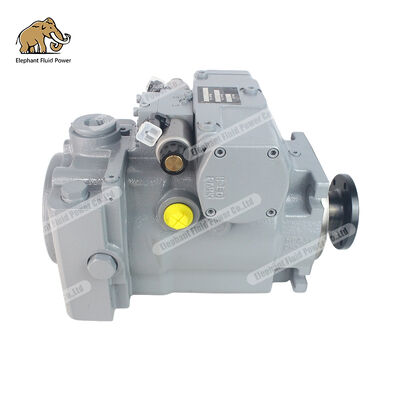

APV090EP2R Hydraulic Pump For Construction Machinery, Concrete Mixer Trucks, Mining Machinery

APV090EP2R 40BBABE253500 Hydraulic Pump

Closed-Loop System Variable Pump Alternative Solution

Hello!

I am from a professional hydraulic pump manufacturer in China. Today, I'll be discussing the APV090EP2R 40BBABE253500 hydraulic pump in a Q&A format. If you're struggling to find a hydraulic pump , I hope this answer will help you.

Question 1: What exactly is the APV090EP2R 40BBABE253500?

This is a closed-loop system axial piston variable hydraulic pump with a displacement specification of 090 (approximately 88.9 cc/r). It belongs to the APV series of closed-loop piston pumps. The APV series includes seven specifications: 028, 032, 045, 063, 075, 090, and 110. 090 is one of the most widely used and mainstream models. The rated pressure is 350 bar, and the maximum pressure can reach 420 bar.

This pump is specifically designed for closed-loop hydraulic systems, featuring high power density, compact structure, and low noise.

Model Code Interpretation: APV represents the axial piston closed-loop variable displacement pump series; 090 represents a displacement of 90 cc/r; EP2R represents electronic proportional control (EP stands for Electronic Proportional); 40BBABE253500 is a specific configuration code, involving detailed configurations such as control valves, port specifications, and mounting flanges.

The export model of this pump is designed according to European industry standards, offering multiple control solutions including manual, hydraulic, and electronic control, and interface customization services are available.

Second Question: Where is this pump installed? What equipment is it used on?

The APV series closed-loop piston pumps are widely used in construction machinery, concrete mixer trucks, mining machinery, road machinery, agricultural machinery, and industrial transmissions.

The APV090 displacement is particularly suitable for closed-loop hydraulic drive systems in medium to large-sized equipment. Specifically: In concrete mixer trucks (mixing tank driven), the APV090 oil pump, in conjunction with the AMF090 motor, forms a closed-loop hydraulic drive circuit to achieve smooth rotation control of the concrete mixing tank. In road machinery such as road rollers (vibration/travel drive), pavers (travel drive), and loaders (hydrostatic transmission), closed-loop variable pumps, in conjunction with closed-loop motors, achieve stepless speed regulation and high-efficiency transmission.

In mining vehicles (hydraulic transmission system), the APV series high-pressure heavy-duty pumps can operate stably for extended periods under harsh mining conditions. They are also suitable for cranes, excavators, petroleum machinery, and coal mining equipment.

Question 3: What are the detailed technical parameters of this pump?

Four Questions: How to Install and Use Correctly? Are There Any Common Pitfalls?

① Closed-Loop Systems Have Special Requirements

Under closed-loop systems differ from open-loop systems. The hydraulic oil circulates in a closed loop between the main pump and the motor, requiring higher standards for oil cleanliness and replenishment pressure. Before installation, ensure the system is free of welding slag, chips, and other contaminants; otherwise, they will directly wear down precision components inside the pump.

② Oil Replenishment and Air Bleeding Before Start-up

Before the first start-up, clean hydraulic oil must be injected into the pump housing through the drain port to purge internal air. Never start the pump without this. The replenishment pump in a closed-loop system must also be functioning correctly, with a replenishment pressure generally higher than 15 bar, used to compensate for system leaks and for cooling and flushing.

③ Control Method Matching

The APV090EP2R uses electronic proportional control. The control signal (generally 0–5V, 0–10V, or 4–20mA current signal) needs to be matched with the controller. After installation, the control signal should be calibrated to ensure the pump displacement changes linearly with the signal.

④ Hydraulic Oil Selection and Maintenance

Use HLP mineral oil conforming to DIN 51524 standard. The recommended oil cleanliness is ISO 18/16/13 or higher. Change the hydraulic oil and filter element every 1000 hours, and periodically check the back pressure of the housing drain pipe (≤2.5 bar). For closed systems, the working status of the replenishing pump and the function of the flushing valve also need to be checked periodically.

Five Questions: What to do if problems arise during use?

Based on the characteristics of closed-loop variable pumps, common faults and troubleshooting approaches are as follows:

Problem 1: Pump not producing oil or pressure not building up

Possible causes: Replenishing pump failure, clogged suction filter element, control signal not connected, severely worn distributor plate

Troubleshooting direction: Check if the replenishing pressure is normal (should be higher than 15 bar). (bar) Check the suction filter element and whether the control signal reaches the proportional solenoid. If the volumetric efficiency is below 80%, disassembly and inspection are required.

Problem 2: Large or unstable system pressure fluctuations

Possible causes: Control signal interference or fluctuations, proportional solenoid failure, unstable replenishment pressure, wear of the pump plunger/distributor plate

Troubleshooting: Check if the controller output signal is stable, measure if the proportional solenoid coil resistance is normal, check the replenishment pump outlet pressure, and check the oil cleanliness.

Problem 3: Abnormal noise or excessive vibration

Possible causes: Air mixed into the closed system, cavitation caused by a clogged suction filter element, excessive coaxiality of the coupling, and bearing wear.

Troubleshooting: Check the sealing of the suction line, clean or replace the suction filter element, and recalibrate the coupling coaxiality (≤0.10). (mm), bearing disassembly and inspection

Problem 4: External oil leakage

Possible causes: Aging shaft end seal, loose bolts at the housing mating surface, excessive back pressure at the drain port

Troubleshooting direction: Replace the shaft end seal ring (note that the lip should face the oil chamber), tighten the bolts to the specified torque, check if the drain line is unobstructed, and ensure that the back pressure is ≤2.5 bar

Problem 5: Abnormal oil temperature rise (above 70℃)

Possible causes: Long-term overpressure operation of the system, insufficient flow of the flushing valve, cooler blockage, improper oil viscosity

Troubleshooting direction: Check if the system working pressure exceeds the rated value, check if the closed system flushing valve is working properly, clean the radiator, and replace with hydraulic oil of appropriate viscosity

Six questions: What are the differences between the products manufactured by your factory and the original factory products?

The core difference is only two words: price.

In terms of performance and quality, our goal is to benchmark against the original factory. APV series products are designed according to European industry standards, and the products manufactured by our factory are completely interchangeable with Rexroth, Danfoss, and other products of the same specifications. Rated pressure 350 bar, maximum pressure 420 bar, displacement 88.9 cc/r, power 132 kW—these key parameters are exactly as advertised. Our products inherit all the core characteristics of the APV series: high power density design, weighing only about 60kg; modular structure for easy maintenance; low-noise operation; and multiple control methods available (including electro-proportional, hydraulic, and manual servo).

Several advantages of our products:

Strict quality control,

100% factory inspection: Every unit undergoes pressure resistance testing, flow testing, leakage testing, and performance verification to ensure zero-defect delivery. The factory is ISO 9001 quality management system certified.

Completely interchangeable with original parts:

Mounting flanges and oil port threads are perfectly matched to the original parts, allowing for direct without any modifications.

Flexible control methods:

Supports multiple control methods including electronic proportional control (EP), hydraulic control (H), and manual servo control. Customization is available to meet customer needs.

Significant price advantage:

Original parts are expensive and have long delivery times; we can offer prices at 30%-50% of the original factory price.

Stable supply:

Standard orders ship in 3-7 days; large-volume orders are delivered in 15-20 days.

Seven questions: What practical problems can I help you solve?

You are a distributor:

• Profit margins for imported parts are getting thinner and thinner; customers find them too expensive and can't afford the wait. Our products allow you to achieve the same quality at half the price, significantly increasing your profit margin.
• Worried about inventory backlog? MOQ as low as 1-5 units, trial orders are welcome before scaling up.
• One-year warranty, comprehensive after-sales technical support, customer peace of mind, and your peace of mind.
• Providing distributors with product training, troubleshooting guidance, and after-sales repair service support.

You are an OEM manufacturer:

• Need private label customization? OEM/ODM private label customization is supported; packaging and labeling can be your brand. The APV series offers various control solutions and interface customization services, including manual, hydraulic, and electrical control.
• Bulk purchases of 50 units or more enjoy a 15% discount; long-term cooperation offers even better pricing.
• Complete factory inspection report provided with each shipment, ensuring quality traceability.

You are a repair service provider:

• End customers are most afraid of expensive and slow parts waiting times when repairing equipment. Using our parts in your repair quotes can save customers 50%-70% on costs, significantly enhancing your competitiveness.
• Urgent orders can be shipped within 24 hours; every day your customer's downtime is reduced, your reputation grows.
• We also supply repair kits, plungers, distributor plates, and other repair parts to support your pump remanufacturing business.
• We provide detailed repair manuals and troubleshooting guides for our APV series hydraulic pumps to help improve repair efficiency.

Eight Questions: Why choose to source from us in China?

China's hydraulic manufacturing industry is vastly different from what it was ten years ago. From casting to precision machining, from seals to bearings, the industrial chain is highly mature. For mature technologies like the APV series, medium- and high-pressure closed-loop pumps, Chinese manufacturing is fully capable of achieving the same level of performance as the original equipment manufacturer (OEM).

We have been deeply involved in the APV series product market for many years, accumulating rich experience in closed-loop hydraulic systems for concrete mixer trucks, road machinery, and mining machinery. Get the same specifications and interchangeability at 30%-50% of the price of OEM parts, plus a one-year warranty and full technical support—this is not just empty talk, but a promise we fulfill every day. Procuring hydraulic pumps of equivalent quality from China reduces overall costs by 40%-60% compared to suppliers in Europe and America.

Nine Questions: What are the specific product parameters? How can I contact you?
