AL A10FM28/52R hydraulic motor use in industrial machinery and CNC lathes

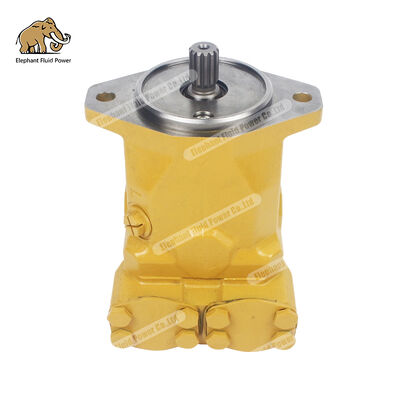

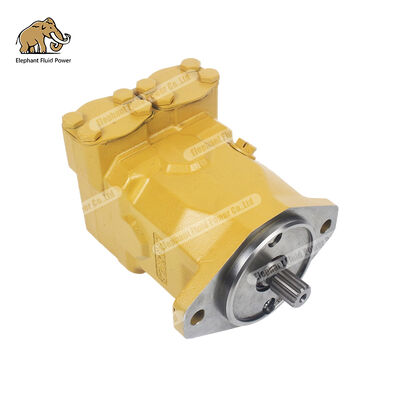

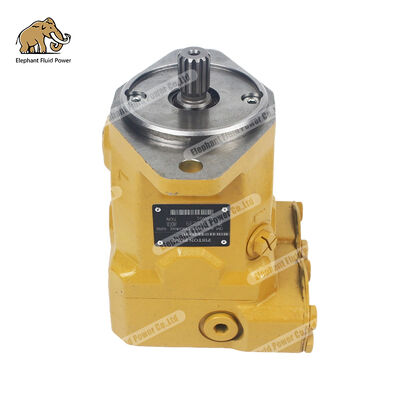

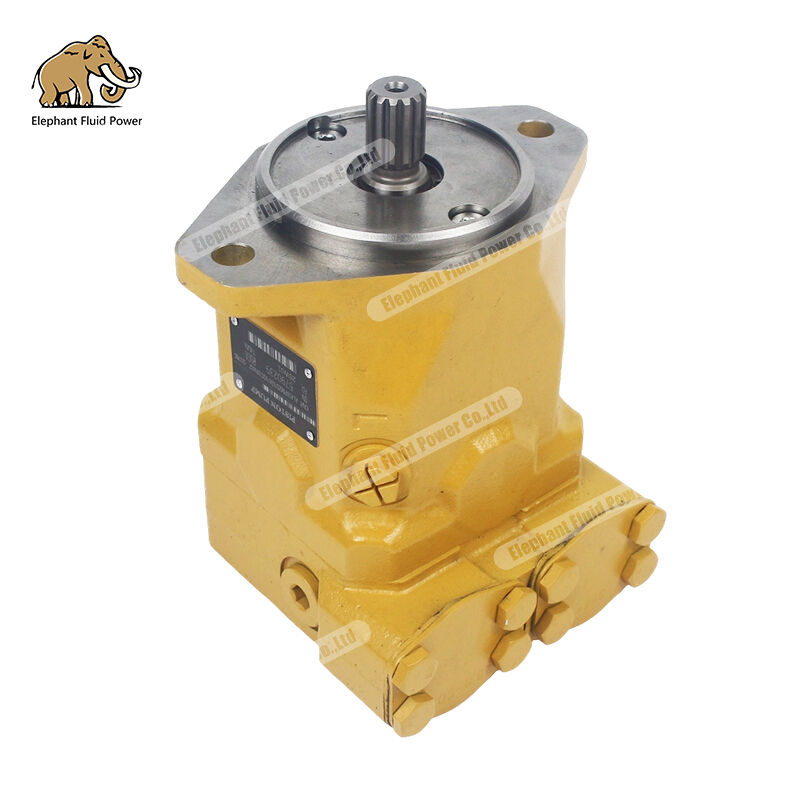

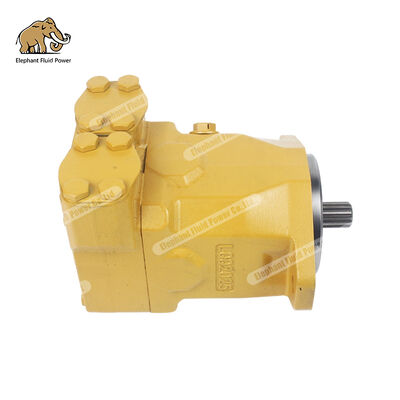

AL A10FM28/52R-VSC10N002-SO768 Replacement Hydraulic Motor

 Q&A: Explaining Everything About This Rexroth Replacement Part

Hello! I am from a professional hydraulic motor manufacturer in China, specializing in replacement products for Rexroth A10FM/A2FM series. Today, I'll be discussing the AL A10FM28/52R-VSC10N002-SO768 hydraulic motor in a Q&A format—if you're struggling to find a replacement, I hope this answer will help you.

Question 1: What exactly is the A10FM28/52R-VSC10N002-SO768?

This is a swashplate axial piston fixed displacement motor from the Rexroth A10FM series, a mainstay model for medium-pressure standard applications in the Rexroth product line. The order number MNR is R992000916, Made in Germany, indicating it's a standard product manufactured by Rexroth in Germany.

The A10FM series employs a swashplate hydrostatic drive design, suitable for hydrostatic transmission in both open and closed circuits. This motor has a displacement of 28 cc/r (geometric displacement 28.5 cm³/rev), converting hydraulic energy into mechanical rotational output in a hydraulic system to drive equipment to perform corresponding mechanical actions.

The information in this model code can be broken down as follows: A10FM represents the swashplate axial piston fixed displacement motor series; 28 represents the displacement specification; 52 represents series 5; R represents the direction of rotation (clockwise when viewed from the drive shaft); V represents that the seal is FKM fluororubber; SC10N002 represents the specific specifications of the drive shaft and mounting flange; SO768 is a customer-specific configuration number.

Second question: Where is this motor installed? What equipment is it used on?

The A10FM series is Rexroth's main product line for medium-pressure applications, suitable for mobile machinery and industrial fields. The A10FM28 is a medium-displacement model with moderate specifications, widely used in various standard medium-pressure hydraulic transmission scenarios.

Specific application areas include: industrial machinery, CNC lathes, shoemaking machinery, packaging and printing, woodworking machinery, plastics machinery, construction machinery, air compressors, and various hydraulic systems. It is a long-term, reliable partner in the construction of hydraulic equipment, pneumatic equipment, and hydraulic systems. Simply put—A10FM28 can handle any application requiring stable and reliable medium-pressure hydraulic transmission, with space constraints, and high power density.

Three questions: What are its specific performance parameters?

The key technical parameters of A10FM28 are as follows:

The A10FM28's displacement range falls within the mid-displacement specifications of the A10FM series, which includes 11 displacement options: 10, 11, 14, 16, 18, 23, 28, 37, 45, 58, and 63 cc/rev. The 28 cc/rev is a widely used model in this series.

In terms of performance characteristics, the A10FM series features proven A10 rotating component technology, long service life, high permissible output speed, high power-to-weight ratio, compact design, space-saving cartridge mounting, low noise level, and SAE-compliant mechanical and hydraulic connection interfaces. Optional speed sensors and built-in anti-cavitation valves are available for specific applications such as fan drives.

Four Questions: How to install and use correctly? Are there any common pitfalls?

① Ensure oil filling before installation.

During commissioning and operation, the axial piston unit must be filled with hydraulic oil. This must also be confirmed after relatively long shutdowns, as the axial piston unit may drain oil back to the tank through the hydraulic lines. The drain line (L1) must lead to the oil tank through the highest available drain port, and the return back pressure must not exceed the specified value.

② Installation Location Selection

A10FM28 recommends installation locations 1 and 2. If the motor is installed below the lowest oil level in the tank, it is considered "under-tank installation"; if installed above the lowest oil level, it is considered "above-reservoir installation." Connection F is part of the external piping and must be provided by the client to simplify filling and venting.

③ Drain Line Layout Requirements

If multiple units share a drain line, it must be ensured that the permissible housing pressure of each unit does not exceed the limit under any operating conditions (especially during cold starts). The shared drain line must be large enough; otherwise, separate drain lines must be laid for each unit.

④ Hydraulic Oil Selection

HLP mineral oil conforming to DIN 51524 must be used to ensure good lubrication and wear protection. Oil cleanliness is critical; it is recommended to meet ISO 18/16/13 or higher standards.

⑤ Key Points for Pre-Debugging Inspection

Before installation, check the motor for damage and ensure the output shaft rotates freely.

If the motor has been stored for an extended period, drain the oil and flush it to prevent internal moving parts from sticking.

The mounting bracket must have sufficient rigidity, and the motor and load should be coaxially connected.

Pay attention to the inlet and outlet directions of the main oil circuit to ensure no reverse flow occurs.

⑥ Key Points for Regular Maintenance

Change the hydraulic oil and filter element every 1000 hours.

Regularly check the condition of the seals; replace them immediately if aging or leakage is found.

Regularly check the tightening torque of the mounting bolts.

If the motor has been idle for more than 6 months, it must be re-inspected before being put back into use.

Five Questions: What if problems arise during use?

The common faults and troubleshooting methods for A10FM series hydraulic motors are as follows:

Problem 1: Low speed or insufficient torque

• Possible causes: Insufficient oil supply, clogged suction filter, excessive internal leakage, unsuitable oil viscosity, insufficient oil supply from the hydraulic pump
• Troubleshooting direction: Check the oil supply system, clean the filter screen, replenish oil; check for air leaks in the suction line; if there is a serious internal leak, it indicates wear of the plunger assembly or distributor plate, requiring disassembly and inspection.

Problem 2: Abnormal noise or vibration

• Possible causes: Air mixed into the system (air leak in the suction line), oil contamination, worn or damaged bearings, excessive coaxiality of the coupling
• Troubleshooting direction: Check the sealing of the suction line, apply soapy water to detect leaks; replace with clean hydraulic oil; disassemble and inspect the bearings—if the bearings have clearance or scratches and discoloration on the roller surface, they must be replaced; recalibrate the coaxiality of the coupling.

Problem 3: External oil leakage

• Possible causes: Aging or damaged shaft end seal, joint...

Problem 4: Loose bolts, aged pipe joint seals

• Troubleshooting: Replace the shaft end seal (note that the lip faces the oil chamber), tighten the bolts to the specified torque, and replace the seal.

Problem 5: Overheating

• Possible causes: Long-term overpressure operation, cooling system malfunction (radiator blockage, fan not running), oil deterioration or improper viscosity, excessively high relief valve setting pressure.
• Troubleshooting: Check if the system working pressure exceeds the limit, clean the radiator, replace the hydraulic oil, and readjust the relief valve pressure to the rated value.

Problem 6: Pressure cannot be built up or is insufficient

• Possible causes: Relief valve core stuck or spring fatigue, severe internal pump leakage, air leakage in the suction line.
• Troubleshooting: Clean the relief valve core, replace the fatigued spring; check the suction line joint seal; if the volumetric efficiency is below 80%, disassembly and overhaul are required.

Troubleshooting approach: If the user does not have the conditions for disassembly and repair, do not attempt to disassemble and repair it themselves; contact a professional motor manufacturer for repair. Fault diagnosis follows a process of "visual inspection → data acquisition → segmented isolation and troubleshooting → fault location → repair plan → repair testing → verification closed loop".

Six Questions: What are the differences between your factory's replacement products and the original manufacturer's?

The core difference can be summed up in two words: price.

In terms of performance and quality, our goal is to match the original manufacturer's. The A10FM28 replacement motor is completely interchangeable with Rexroth's original specifications. Nominal pressure 280 bar, peak pressure 350 bar, maximum speed 4,700 rpm, torque 127 Nm (at 280 bar), output power 62.5 kW—these key parameters are identical.

Our products inherit all the core characteristics of the A10FM series: proven A10 rotating component technology, high power density, compact structure, plug-in design to save installation space, and low-noise operation.

Several advantages of our products:

• Strict quality control, full inspection before shipment: Every unit undergoes pressure testing, flow testing, and leakage testing to ensure zero-defect delivery. The factory is ISO 9001 quality management system certified, and the entire production process is traceable.
• Completely interchangeable with the same specifications: The mounting flange uses an ISO 3019-1 two-hole flange, and the drive shaft uses a spline shaft conforming to SAE J744 standards. Dimensions and oil port thread specifications are perfectly matched, allowing for direct replacement without any modifications.
• Sealing material: Uses FKM fluororubber seals, offering excellent high-temperature and oil resistance.
• Significant price advantage: Original parts are expensive and have long delivery times; we can offer prices 30%-50% lower than original parts.
• Stable supply: Standard orders ship in 3-7 days, large-volume orders in 15-20 days.
• Currently, many domestic hydraulic motor manufacturers can produce replacements for the A10FM series, and mature hydraulic industry clusters have formed in Zhejiang, Ningbo, and other regions. Compared to European and American suppliers, sourcing hydraulic motors of equivalent quality from China can reduce overall costs by 40%-60%.

Seven questions: What practical problems can you help my customers solve?

You are a distributor:

• Profit margins for imported parts are getting thinner and thinner; customers find them too expensive and can't afford the wait. Our products offer the same quality at half the price, significantly increasing your profit margin.
• Worried about inventory buildup? MOQ as low as 1-5 units, allowing for trial orders before scaling up.
• One-year warranty, comprehensive after-sales technical support, giving customers peace of mind and giving you peace of mind.
• Ample finished product inventory ensures no stockouts impact business.
• We provide distributors with product training, troubleshooting guidance, and after-sales repair support.

You are an OEM manufacturer:

• Need private label customization? We support OEM/ODM private label customization; packaging and labeling can be your brand.
• Enjoy a 15% discount on bulk purchases of 50 units or more; long-term partnerships offer even better pricing.
• Complete factory inspection reports are provided with each shipment, ensuring quality traceability.
• We can jointly develop optimized solutions for specific equipment, providing a one-stop service from design to mass production.

You are a repair service provider:

• End customers are most afraid of expensive and slow parts waiting times when repairing equipment. Using our replacement parts in your repair quotes can save customers 50%-70% on costs, significantly enhancing your competitiveness.
• Urgent orders can be shipped within 24 hours; every day your customer's downtime is reduced, your reputation grows.
• We also supply repair kits, plungers, distributor plates, and other repair parts to support your motor remanufacturing business.
• We provide detailed repair manuals and troubleshooting guides for our A10FM series hydraulic motors to help improve repair efficiency.

Eight Questions: Why choose to source from us in China?

China's hydraulic manufacturing industry is vastly different from what it was ten years ago.

A complete hydraulic industry cluster has formed, with a highly mature industrial chain, from casting to precision machining, from seals to bearings. Our products of equivalent quality have an overall cost 40%-60% lower than those from European and American suppliers.

As a professional hydraulic motor manufacturer, we have accumulated rich production and application experience in A10FM series replacement products. Get products of the same specifications and interchangeability at 30%-50% of the price of original parts, plus a one-year warranty and full technical support—this is not just empty talk, but a promise we fulfill every day.

Hydraulic products made in China are gaining an increasingly important position in the global market. Sourcing hydraulic motors from China not only offers significant cost advantages but also provides flexible customization capabilities and a rapid-response delivery system.

Nine Questions: What are the specific product parameters? How can I contact you?
