Kawasaki K3VL Series Hydraulic Piston Pump
OEM Kawasaki K3VL Series Schwing hydr ACC pump K3VL28 Constant pressure Hydraulic Piston Single Pump for Concrete Pump
Product Overview
The K3VL series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile and industrial applications. Through extensive research and development, these pumps feature drastically reduced pressure pulsation and offer multiple control options including load-sensing, pressure constant, horsepower control, and remote unload/variable pressure controls.
Key Features
- High Pump Efficiency
- Low Noise Operation
- Wide Range of Control Options
- Brand New - Factory Direct Quality
- Same Casing Size - Perfect Fit for Original Equipment
- Same Internal Spare Parts - Identical Components
- Same Performance as Original - Matches OEM Specifications
- Direct Factory Pricing - Competitive Pricing Without Middlemen
Technical Specifications
| Model Series |
K3VL28 |
K3VL45 |
K3VL80 |
K3VL112 |
K3VL140 |
K3VL200 |
K3VL200H |
| Displacement (cm³) |
28 |
45 |
80 |
112 |
140 |
200 |
200 |
| Rated Pressure (MPa) |
32 |
| Peak Pressure (MPa) |
35 |
| Max Self Priming Speed (min⁻¹) |
2,600 |
2,700 |
2,400 |
2,200 |
2,200 |
1,900 |
2,200 |
| Mass (approx.) (kg) |
20 |
25 |
35 |
65 |
65 |
95 |
130 |
Specific Model Details
| MODEL |
K3VL80-B-10RSM-T251 |
| MOQ |
1 pcs |
| Casing |
Same with Original |
| Internal Spare Parts |
Same with Original |
| Performance |
Same with Original |
| Nameplate |
Support Customized |
| Color |
Parkerising, Black, Grey, White, Yellow |
| Packing |
Wooden Box |

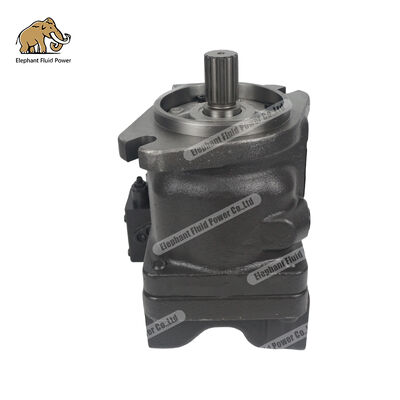

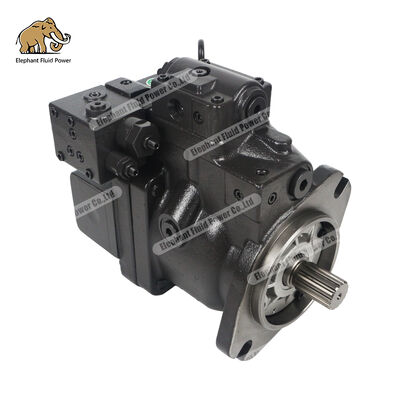

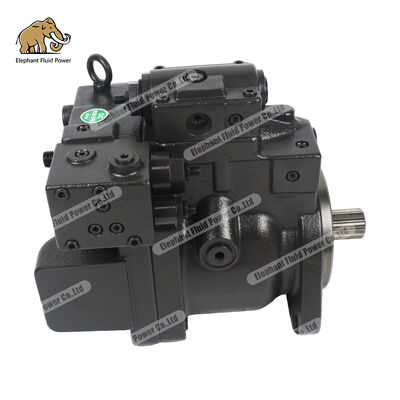

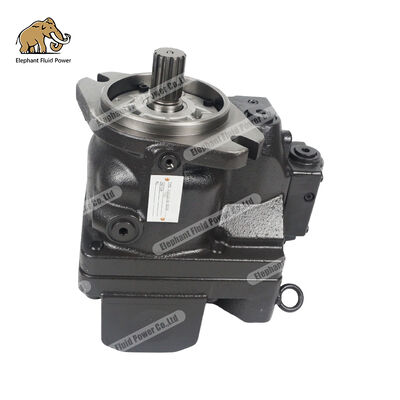

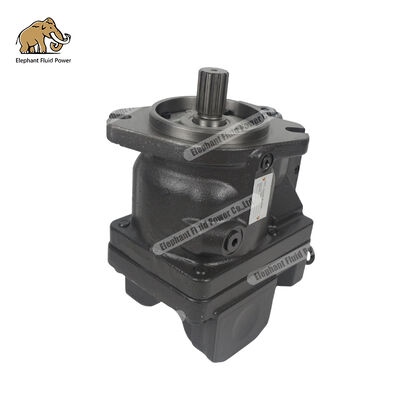

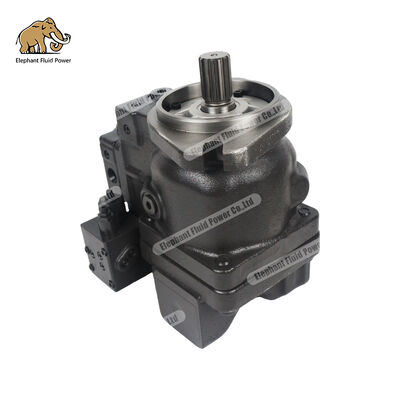

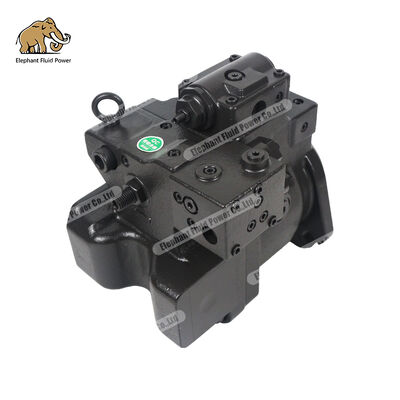

Product Images
Manufacturer Information
Elephant Fluid Power is a Chinese direct hydraulic pump factory specializing in Kawasaki K3, K5, K7 series single and tandem pumps. We provide OEM-quality replacements with identical specifications at competitive factory prices.
Special Note for Wholesalers
If you are a wholesaler, hydraulic company, or new machine manufacturer, competitive pricing is available. We're committed to helping you succeed in your market.
Additional OEM Products
We also produce OEM hydraulic pumps for other leading brands:
- OEM Rexroth
- OEM Danfoss
- OEM Parker
- OEM Poclain
Application-Specific Products
For Concrete Mixer Truck
| Brand |
Models |
| EATON |
4623 4633 5423 5433 6423 6433 7623 |
| REXROTH |
A4VTG90 A2FM90 A2FM80 A4VTG70 A2FM63 |
| SAUER |
PV23 MF23 PV22 MF22 TMM089 |
| DANFOSS |
90R100 90M100 |
| PMP |
PMP90 PUMP PMP90 MOTOR |
| COMPLETE REDUCERS |
| ZF |
P3301, P4300, P5300, P7300, P5300cp with water port, PLM7 PLM9, CLM10, CLM12, CLM16 |
| PMP |
PMB6R100, PMB6.5R120, PMB7.1R120, PMB7R130, PMB8.0, PMB8.1 With Water Port |
| Bonfiglioli |
575L, 577L, 580L |
| Sauer |
TM51.2, TM61.2, TM71.2 |
For Concrete Pump
PM, Schwing, Sany, Zoomlion, CIFA, Hydraulic part numbers, all OK for us.
| Component Type |
Models |
| MOTOR |
OMH500 OMH750 BMER475 BMER750 BRH B470 BRH L750 OMP160 8Y-1000 / J6K-985 ... |
| GEAR PUMP |
5.5 CM3 14 R CM3 16 R CM3 14+11 CM3 31+31+11 CM3 31+11 CM3... |
| PISTON PUMP |
A2F12 A2F23 A2F32 A2FO16 A2FO23 A2FO32 A4FO22 A4FO28 A4VG110EP A4VG125EP A4VG140EP A4VG140BR A4VG175BR A4VG180 A7VO55 A7VO80 A20VLO190 A10VSO18 A10VSO28 A10VSO74 A10VSO100 A11VO40 A11VO60 A11VO130 A11VLO190 |
Spare Parts for Concrete Mixer Truck and Concrete Pump
| Component Type |
Parts |
| PUMP SPARE PARTS |
PISTON, CYLINDER BLOCK, RETAINER PLATE, BALL GUIDE, VALVE PLATE, SHAFT, SHAFT SEAL, SWASH PLATE, SHOE PLATE, BEARING PLATE, CONTROL VALVE, CHARGE PUMP, SEAL KIT... |
| REDUCER BEARING |
OIL SEAL, BEARING |
| COOLER |
18L 20L 24L 26L |
| EQUIPMENT |
RESCUE EQUIPMENT FOR CONCRETE MIXER TRUCK |
Reference Models
Partial list of compatible models - contact us for complete compatibility information:
K3VL/45/BLNR-M-1V
K3VL112/B-10RCM-L1
K3VL112/B-10RKS-P0/1-H4
K3VL112/B-10RWM-L1
K3VL112/B-1ALSM-P0
K3VL112/B-1ARMM-L1/1-S6
K3VL112/B-1ARSM-L0/1-M1
K3VL112/B-1BBRMM-L0
K3VL112/B-1BBRWM-L0
K3VL112/B-1BLSM-P0
K3VL112/B-1BRKM-L0/1-H1
K3VL112/B-1BRKS-P0/1-M1
K3VL112/B-1BRMM-L0
K3VL112/B-1BRSS-L0
K3VL112/B-1BRWS-L0
K3VL112/B-1CLCM-P0/1-E0
K3VL112/B-1CLCM-P0/1-H1
K3VL112/B-1CLCS-L0
K3VL112/B-1CLSM-P0
K3VL112/B-1CLWM-L0/1-H1
K3VL112/B-1CLWM-L0-1
K3VL112/B-1CLWS-L0
K3VL112/B-1CRCM-P0/1-E0
K3VL112/B-1CRCM-P0/1-H1
K3VL112/B-1CRKM
K3VL112/B-1CRKS-L1
K3VL112/B-1DRSM-P0
K3VL112/B-1DRWM-L0
K3VL112/B-1NLCS-LO
K3VL112/B-1NLSM-L0
K3VL112/B-1NLWM-L0
K3VL112/B-1NRCS-L1/1-H1
K3VL112/B-1NRKM-L0/1-E0
K3VL112/B-1NRKM-L0/1-H1
K3VL112/B-1NRSM-L0/1-H1
K3VL112/B-1NRSS-L0
K3VL112/B-1NRSS-L0-/1-M1
K3VL112/B-1NRSS-PN24D
K3VL112/B-1NRWM-L0
K3VL112/B-1RLCM-L1
K3VL112/B-1RLSM-P0
K3VL140/B-10RJM-P0TB008
K3VL140/B-10RKS-P0
K3VL140/B-10RMM-P0
K3VL140/B-10RMM-P0/1-H1-L123
K3VL140/B-10RSS-P0/1-H2
K3VL140/B-1ALKM-P0
K3VL140/B-1ALKM-PO
K3VL140/B-1ALSM-L1
K3VL140/B-1ARMM-P0/1-E0
K3VL140/B-1ARSM-P0/1-E0
K3VL140/B-1ARSS-L0/1-H1
K3VL140/B-1BLSM-L0
K3VL140/B-1BLXM-PM24D
K3VL140/B-1BRCS-PV
K3VL140/B-1BRSM-L02F-TB176
K3VL140/B-1CLMM-L1
K3VL140/B-1CLSM-L0/1-H1
K3VL140/B-1CRKS-L0/1-H1
K3VL140/B-1CRSS-P0
K3VL140/B-1DLSM-
K3VL140/B-1DLSM-L1
K3VL140/B-1DRMM-P0
K3VL140/B-1NLCM-L0
K3VL140/B-1NLCM-L1/1-H4
K3VL140/B-1NLMM-L0
K3VL140/B-1NLSM-L1
K3VL140/B-1NLSS-P0/1-E0
K3VL140/B-1NRKM-L0
K3VL140/B-1NRMM-PM24D
K3VL140/B-1NRSS-L0/1-E0
K3VL200/B-10RKS-P0/1-H1
K3VL200/B-1ARSS-P0
K3VL200/B-1BRSS-L0/1-H2
K3VL200/B-1CRKS-L0
K3VL200/B-1DRKS-PV
K3VL200/B-1DRSS-P0/1-H1
K3VL200/B-1ELFM-L0/1-E0
K3VL200/B-1ERKM-P0/1-H5
K3VL200/B-1NLKM-L0
K3VL200/B-1NLSM-L0
K3VL200/B-1NLSM-L0/1-E0
K3VL200/B-1NLSS-LO
K3VL200/B-1NRKM-L1
K3VL200/B-1NRKM-PO
K3VL200/B-1NRSS-L0
K3VL200/B-1NRSS-L0/1-E0
K3VL200/B-1NRSS-PN24D
K3VL45/A-1AJRSM-PO/1
K3VL45/A-1AJRSM-PO/1串小泵
K3VL45/A-1AJRSM-PO-1
K3VL45/B-10RKM-L0
K3VL45/B-10RKM-P0/1-H1
K3VL45/B-10RMM-P0
K3VL45/B-10RSM-P0
K3VL45/B-10RSM-P0/1-E0
K3VL45/B-10RSS-P0
K3VL45/B-10RTM-P0
K3VL45/B-10RTS-PO-TB092五台*7500
K3VL45/B-1ALSM-P0
K3VL45/B-1ALSM-PM
K3VL45/B-1ALSS-L0/1-H4
K3VL45/B-1ARKM-P0/1-E0
K3VL45/B-1ARSM-P0
K3VL45/B-1ARSM-P0/1-E0
K3VL45/B-1ARSS-L1/1-H1
K3VL45/B-1BBLSM-P0/1-E0
K3VL45/B-1BBLSM-P0/1-H1
K3VL45/B-1BBLSM-PM
K3VL45/B-1BBLTM-P0
K3VL45/B-1BBRKM-P0
K3VL45/B-1BBRSM-P0/1-E0
K3VL45/B-1BBRSM-P0/1-H1
K3VL45/B-1BBRSS-L0
K3VL45/B-1BBRTM-P0
K3VL45/B-1BRSM-L0
K3VL45/B-1NLKS-L1/1-L2
K3VL45/B-1NLSM-L0
K3VL45/B-1NLSM-P0/1-E0
K3VL45/B-1NLTS-P0
K3VL45/B-1NRKM-L1
K3VL45/B-1NRKM-P0/1-H1
K3VL45/B-1NRMM-P0
K3VL45/B-1NRSM-L0
K3VL45/B-1NRSM-L0/1-H1
K3VL45/B-1NRSS-L0
K3VL45/B-1NRSS-L0/1-E0
K3VL45/B-1NRSS-L0/1-M1
K3VL45/B-1NRSS-PN24D
K3VL45/B-1RLTM-L0
K3VL45/B-1RRTS-L0
K3VL80/B-10RKM-L0
K3VL80/B-10RKS-L1/1-L5
K3VL80/B10RKS-PO/1-L2
K3VL80/B-10RMM-P0/1-H1
K3VL80/B-10RSM-L0
K3VL80/B-10RSM-L1/1-TB511
K3VL80/B-10RSM-LN24D
K3VL80/B-10RSM-P0/1-E0
K3VL80/B-1ALSM-PN24D
K3VL80/B-1ALSS-L0/1-H2
K3VL80/B-1ALSS-P0/1-E0
K3VL80/B-1ARMM-P0/1-L3
K3VL80/B-1ARSS-P0/1-L1L
K3VL80/B-1BBLSM-P0
K3VL80/B-1BBLSM-PM
K3VL80/B-1BBRSM-P0
K3VL80/B-1BBRSS-L1
K3VL80/B-1BLSS-L0/1-H1
K3VL80/B-1BLSS-L1
K3VL80/B-1BRKM-LO/1-H1
K3VL80/B-1BRMM-P0/1-M4
K3VL80/B-1CLSM-L1
K3VL80/B-1CLSM-P0/1-E0
K3VL80/B-1CLSM-P0/1-H1
K3VL80/B-1CLSS-L0
K3VL80/B-1CRMM-P0/1-H1
K3VL80/B-1CRSM-P0/1-E0
K3VL80/B-1CRSM-P0/1-H1
K3VL80/B-1NLKS-P0
K3VL80/B-1NLSS-L0
K3VL80/B-1NRKM-P0
K3VL80/B-1NRMM-L0/1-M2
K3VL80/B-1NRMM-P0
K3VL80/B-1NRSM-L1
K3VL80/B-1NRSS-L0/1-M1
K3VL80/B-1NRSS-P0/1-E0
K3VL80/B-1NRSS-PN24D
K3VL80/B-1NRSS-S0
K3VL80/B-1RLSM-L0
K3VL80/B-1RRKS-P0/1-H1
K3VL80/B-1RRSM-L0
K3VL80/B-1RRSS-P0/1-H1
Note: This is a partial list. Contact us for complete compatibility information.
