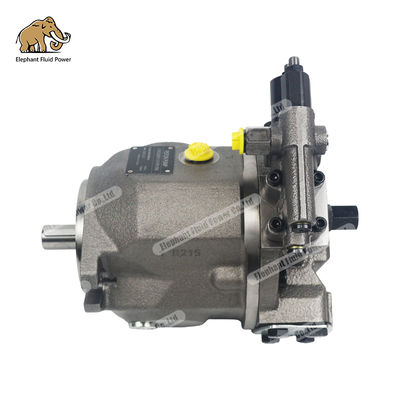

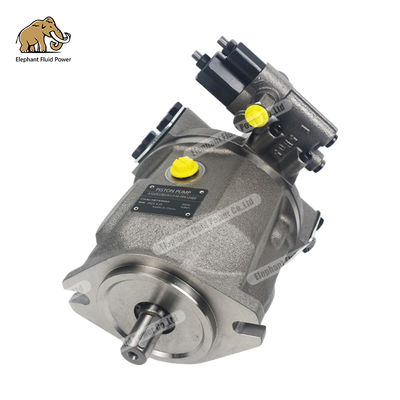

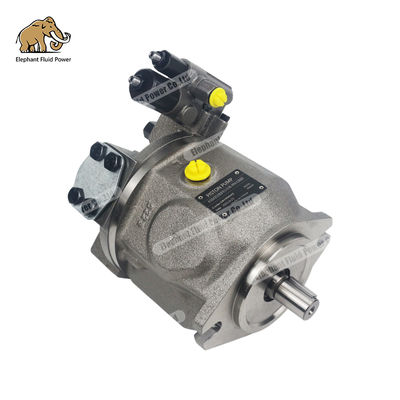

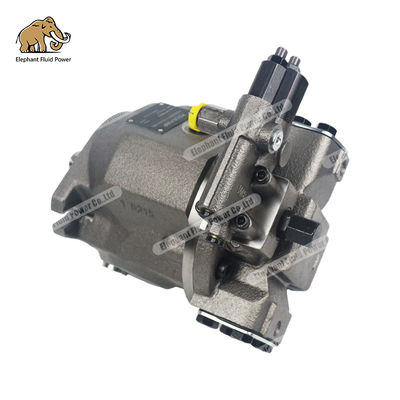

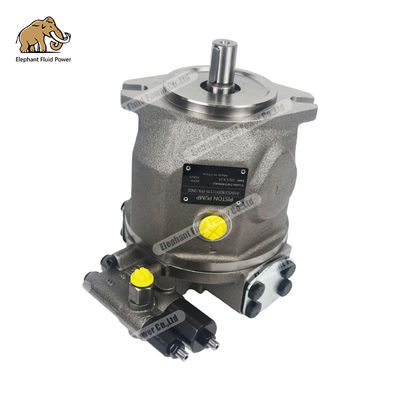

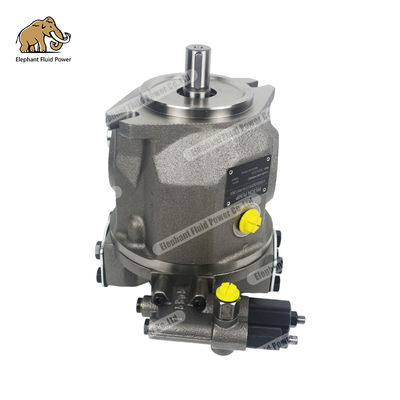

OEM Quality Axial-Piston Pump A10VSO28 Replacement with 100% Interchange for Construction Machine Repair and 2 Drain Ports

Type code

01         02            03           04           05                          06           07                          08           09           10           11           12           13

A10V(S)

O

/

31

-

V

Version                                                                                                                                                                  18     28     45     71     88    100   140

01

Standard version (without code)

High-speed version (external dimensions are the same as the standard version)

-

-

-

H

Axial piston unit

02

Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar

-

-

-

-

-

-

A10VS

-

A10V

Operating mode

03

Pump, open circuit

O

Size (NG)

04

Geometric displacement, see table of values on pages 6 and 7

18

28

45

71

88

100

140

Control device

05

Two-point control, direct operated

DG

Pressure controller                 hydraulic

DR

with flow controller            hydraulic

X-T open

DFR

X-T plugged with flushing function

DFR1

X-T plugged without flushing function

DRSC

with flow and differential pressure control, electrically variable

EF1)

with pressure cut-off

hydraulic       remote controlled

DRG

electrical       negative control

U = 12 V

ED71

U = 24 V

ED72

electrical       positive control

U = 12 V

ER71

U = 24 V

ER72

Pressure-flow power control

-

DFLR

Series

06

Series 3, index 1

31

Direction of rotation

07

Viewed on drive shaft

clockwise

R

counter-clockwise

L

Sealing material

08

FKM (fluoroelastomer)

V

Drive shaft                                                                                                                                                            18     28     45     71     88    100   140

09

Splined shaft ANSI B92.1a

standard shaft

S

similar to shaft "S" however for higher input torque

-

-

R

reduced diameter, limited suitability for through drive (see table of values, page 9)

○

U

same as "U", higher torque; limited suitability for through drive (see table of values, page 9)

-

W

Mounting flange

10

ISO 3019-1 (SAE)

2-hole

C

4-hole

-

-

-

-

-

-

D

1)   See data sheet 92709

Rexroth

A2F12/23/28/55/80/107/160/200/225/250/335/500

A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500

A7V28/55/80/107/160/225/250/355/500/1000

A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500

A4VSO45/71/125/180/250/500/1000

A4V40/56/71

A4VG28/40/45/50/56/71/90/125/140/180/250

A4VTG71/90

A10VSO10/16/18/28/45/63/71/85/100/140

A10VG18/28/45/63

A11VO60/75/95/130/145/160/190/250/260

Kawasaki

K3SP36C

K3V63DT/112DT/140DT/180DT/280DT

K3VL28/45/60/80/112/140/200

K3VG63/112/180/280

K7V63/100

K7VG180/265

K5V80/140/160/200

NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270

NX15

NVK45

KVC925/930/932

M2X55/63/96/120/128/146/150/170/210

M5X130/150/173/180/500

MX50/80/150/173/200/250/450/500/530/750

KAYABA

MAG150/170

KYB87

MSG18P/27P/44P/50P

MSF series

Komatsuu

HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650

Libherr

LPVD 35/45/64/75/90/100/125/140/165/225/250

FMV075/100

LMF(V)45/64/75/90/100/125/140

Toshiba

PVB80/92

PVC80/90

SG 015/02/025/04/08/12/15/17/20/25

Linder

HPV55/75/105/135/165/210/280

HPR75/90/100/130/160

MPR28/45/63/71

HMR75/105/135/165

HMF28/35/50/

BPV35/50/70/100/200

B2PV35/50/75/105/140/186

BMF35/55/75/105/140/186/260

BMV35/55/75/105/135

BPR55/75/105/140/186/260

Sauer

PV90R(L)(M)030/42/55/75/100/130/180/250

PV42-28/41/51

SPV15/18

KRR(LRR)025C/030D/038C/045D

MR(MS)070/089/227/334

Eaton

3321/3331

4621/4631

5421/5431

78461/78462

Vicker

PVE12/21/45

TA19/MFE19

PVM 018/020/045/050/057/063/074/081/098/106/131/141

PVH 57/74/98/131/141

PVB 5/6/10/15/20/29/45/90

Yuken

A10/16/22/37/40/45/56/70/90/100/125/145/220

A3H16/37/56/71/100/145/180

Parker

PVP16/23/33/41/48/60/76/100/140

PV 016/020/023/028/032/040/046/063/080/092/140/180/270

P2/3-060/075/105/145

PAVC 33/38/65/100

Hitachi

HPV050/102/105/118/135

HMGC16/32/48

HMGF35/36/38/57

Tokiwa

MKV23/33

Uchida

A10VD17/23/28/40/43/71

AP2D12/14/18/21/25/28/36/38/42

A8VO55/59/80/86/107/115/172

Nachi

YC35-6

PVD-2B-32/34/36/38/40/42/45/50

PVD-3B-54/56/60/66

PZ-6B-180/220

PVK-2B-50/505

PZ-4B-100

PVD-00B-14/16P

PVD-1B-23/28/32/34
