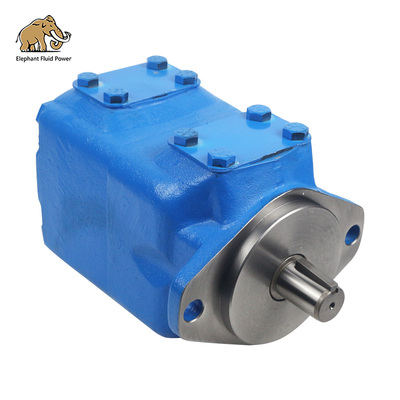

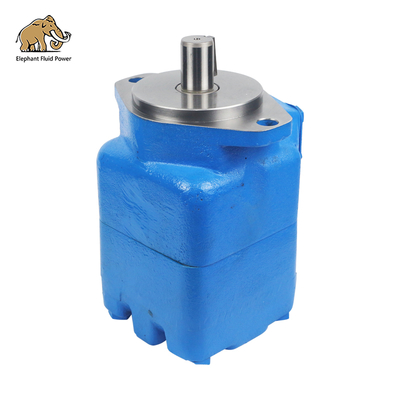

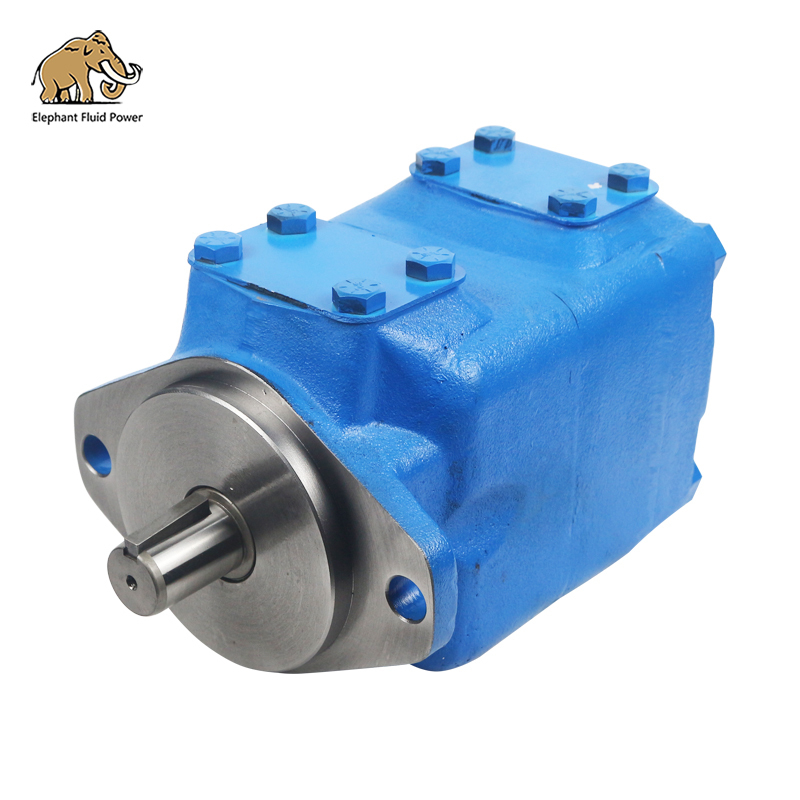

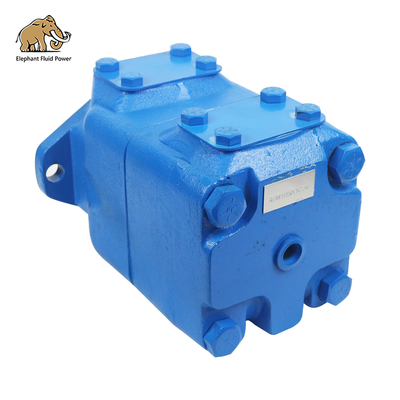

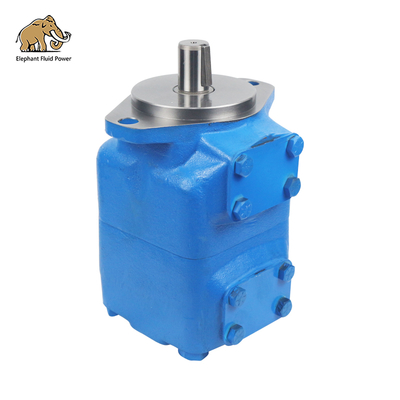

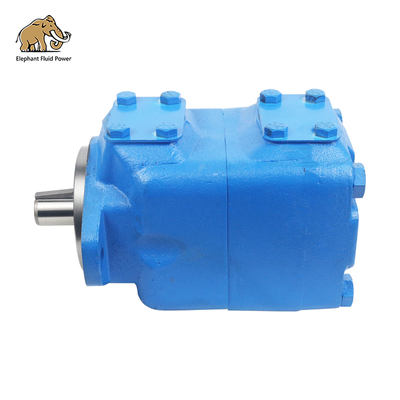

Eaton Vikers M Series Vane Motor 46M185A1C20 Replacement
Product Specifications
| Attribute |
Value |
| Application |
Excavator Maintenance & Repair |
| Structure |
Vane Motors |
| Warranty |
12 Months |
| Power |
Hydraulic |
| Lead Time |
5-7 Days |
| Service |
Technical Support Provided |
Product Description
Elephant Fluid Power manufactures high-quality Eaton Vikers M Series Vane Motor 46M185A1C20 replacements, offering competitive pricing, fast lead times, and a one-year warranty.
Technical Specifications
| Series |
Torque Nm/6,9 bar (lb in/100 psi) |
Displacement cm3/r (in3/r) |
Flow Input @1200r/min L/min (USgpm) |
Maximum Speed & Pressure |
Approx. Weight Kg (lb) |
| 25M |
4,7 (42) |
43,9 (2.68) |
52,6 (13.9) |
3600 r/min @ 34 bar (500 psi) |
18 (40) |
| 35M |
9,0 (80) |
83,6 (5.10) |
100,3 (26.5) |
4000 r/min @ 34 bar (500 psi) |
29 (64) |
| 45M |
14,7 (130) |
138,0 (8.42) |
165,4 (43.7) |
2600 r/min @ 155 bar (2250 psi)
3000 r/min @ 172 bar (2500 psi) |
39 (85) |
| 50M |
24,9 (220) |
231,2 (14.11) |
277,5 (73.3) |
2800 r/min @ 34 bar (500 psi)
3200 r/min @ 34 bar (500 psi)
2200 r/min @ 155 bar (2250 psi)
2400 r/min @ 172 bar (2500 psi) |
73 (160) |
Available Vane Motor Models
25M30A1A20117
35M115A1C20141
F8-25M55A11C20
45M130A1C20141
25M35A1C20
25M42A1C20
25M30A1C20117
F8-35M95A11C20
F8-25M65A1C20
F8-45M130A11C20
25M65A11C20139
35M80A1C20141
Frequently Asked Questions
What Is Our Main Application?
- Hydraulic systems
- Agriculture machinery
- Construction machinery
- Automotive applications
- Local distributors
What Are The Payment Terms?
Full orders: 30% deposit, balance before shipment.
Small orders/samples: Full payment in advance.
Can I Mark My Own Brand On The Pump?
Yes. Full orders can be marked with your brand and code.
What Is Our Main Export Market?
Europe (41.7%): Italy, Germany, England, France, Holland, Greece, Spain, Portugal, Switzerland, Finland, Czech Republic, Russia, Poland
Asia (40.5%): China, Korea, Singapore, India, Turkey, Iran, Vietnam, Saudi Arabia, Syria, Israel, Lebanon
How Long Is The Guarantee?
We provide a 1-year guarantee on all products.
Available Vane Pumps and Cartridges
| Series |
Model |
| T6 Single Pump |
T6C, T6D, T6E |
| T6 Double Pump |
T6CC, T6DC, T6EC, T6ED, T6DR, TGC |
| T6 Treble Pump |
T6DCC, T6DDCS, T6EDC, T6EDCS |
| Denison Cartridge Kits |
T6C, T6D, T6E, T7B, T7D, T7E |
Company Expertise
Our company specializes in repairing various imported and domestic hydraulic components including plunger pumps, motors, and reducers. Equipped with advanced hydraulic pump test benches and staffed by professional hydraulic system engineers with extensive maintenance experience.
Our products are widely used in:
- Roadheaders and excavators
- Concrete mixers and pump trucks
- Pumping stations and pavers
- Road rollers and mixers
- Hydraulic hoists and steel rolling machines
- Injection molding machines and petroleum equipment
We serve industries including construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, and environmental protection.
