Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts

Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts
Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts

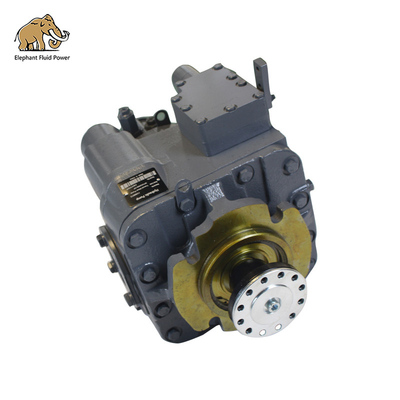

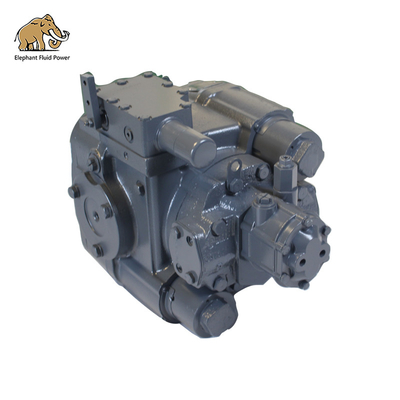

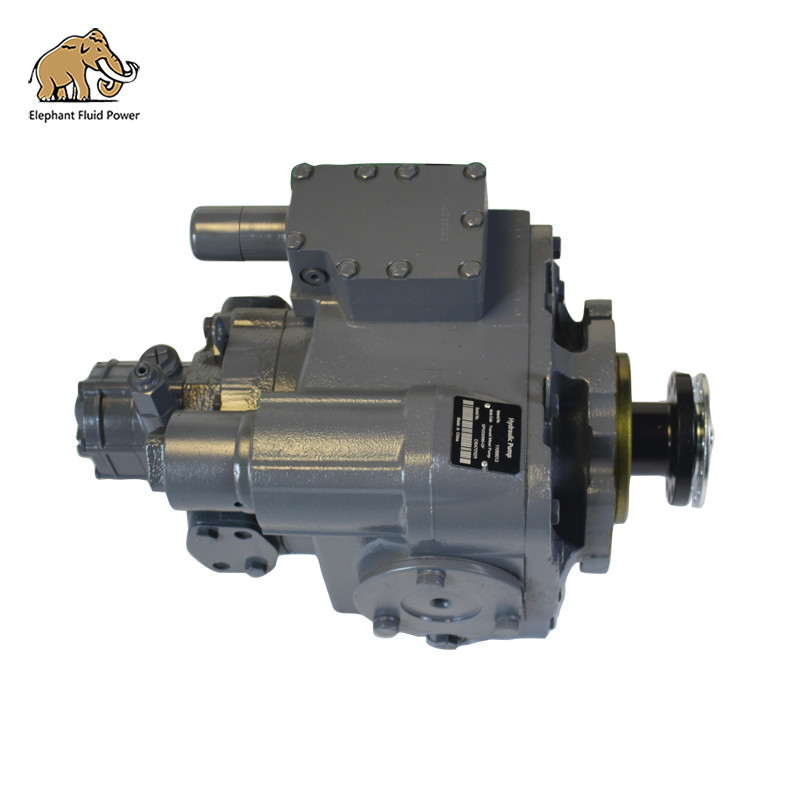

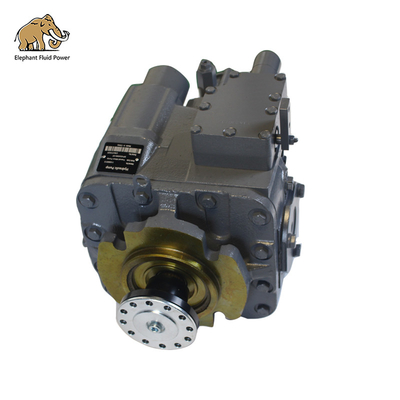

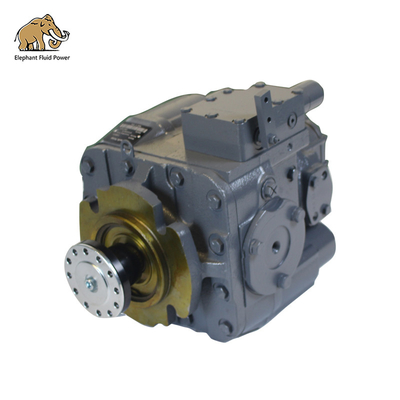

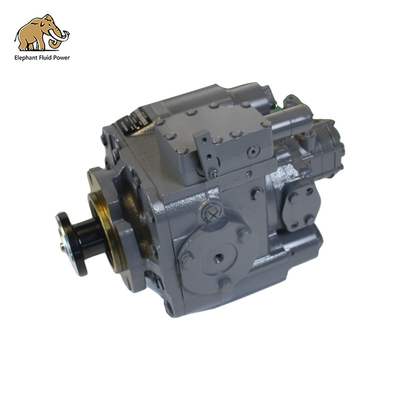

Large Image :  Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: ISO9001,CE
Model Number: PV23
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton,wooden or as your requirements
Delivery Time: 3-5 days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 30000 sets per month

Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts

Description
Advantage: Good Quality And Delivery Fast Compatible: 100% Replacement For Original
Delivery: 3-5 Days Horse Displacement:: 1,080cm3
Refueling Amount: 17dm3 Price: More Favorable Price
High Light:

PV23 Hydraulic Pump Concrete Mixer Parts

,

Concrete Mixer Repair Maintain Parts

,

PV23 Hydraulic Pump

Good Quality Best Price SPV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts


Elephant fluid power manufactures SPV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts,good quality,competitive price,fast lead time,1 year warranty.

Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts 0
Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts 1
Factory Price PV23 Hydraulic Pump Concrete Mixer Repair Maintain Parts 2




Technical Data:

Table of values (theoretical values, without efficiency and tolerances; values rounded)
Size Dimension Sauer-Sundstrand PV pump
PV20 PV21 PV22 PV23 PV24 PV25 PV26 PV27
Max. displacement cm3 33,3 51,6 69,8 89,0 118,7 165,8 227,3 333,7
Max. flow dm3min-1 119,5 159,9 196,1 230,5 278,9 348,1 429,59 557,2
4 6 4 1 4 8 8
Charge pump cm3 12,3 12,3 18,03 18,03 18,8 32,8 32,8 65,5
Max. pressure MPa 35
Nominal pressure MPa 21
Max. pressure of control MPa 3,5
Charge pressure MPa 0,8 - 2,0
Max. pressure in case MPa 0,25 continuous 0,5 intermittent
Maximum speed + min-1 3590 3100 2810 2590 2350 2100 1890 1670
Minimum speed min-1 500
Nominal speed min-1 1500
Kinematic viscosity range of working fluid
- starting
- operating
- optimum

1000
12 - 600
25 - 35
mm2s-1
Kind of working fluid   mineral oil
Operating temperature oC - 40 to + 50
Max. temperature of working fluid in tank oC 80
Purity of working fluid µm 10
Direction of shaft rotation   clockwise or counter clockwise
Maximum swash plate angle o ± 18 o
Weight kg 45 55 63 78 124 164 212 27






Elephant Fluid Power Co., Ltd. is a leading Chinese company specializing in the manufacturing and maintenance of a wide range of industrial equipment components. Our products find application in diverse sectors, including cement tanker trucks, excavators, rescue equipment for cement trucks, mixers, cranes, hydraulic motors, hydraulic pumps, and other industrial.
Gearbox Pump Motor
PLM-7 reducer / gearbox PMP7YR120 reducer / gearbox 4623-552 pump 4633 motor
PLM-9 reducer / gearbox PMP7.2R129 reducer / gearbox 5423-518 pump 5433-138 motor
CML-10 reducer / gearbox PMP7.1R130 reducer / gearbox 6423-279 pump 6433 motor
CML-12 reducer / gearbox PMP7.5R130 reducer / gearbox Eaton 4623-552 pump Eaton 4633 motor
CML16 reducer / gearbox PMP7.8R140 reducer / gearbox Eaton 5423-518 pump Eaton 5433-138 motor
P3301 reducer / gearbox PMP8.0R140 reducer / gearbox Eaton 6423-279 pump Eaton 6433 motor
P4300 reducer / gearbox PMP9YR140 reducer / gearbox PV22 pump MF22 motor
P5300 reducer / gearbox PMP7.5R134 reducer / gearbox PV23 pump MF23 motor
P7300 reducer / gearbox PMP7.5R135 reducer / gearbox SPV22 pump SMF22 motor
PLM-7 reducer / gearbox PMP7.5R136 reducer / gearbox SPV23 pump SMF23 motor
PLM-9 reducer / gearbox PMP6sp reducer / gearbox PV070 pump MF070 motor
CML-10 reducer / gearbox PMP 6.5sp reducer / gearbox PV089 pump MF089 motor
CML-12 reducer / gearbox PMP 7.1sp reducer / gearbox SPV070 pump SMF070 motor
CML16 reducer / gearbox PMP 7.5sp reducer / gearbox SPV089 pump SMF089 motor
P3301 reducer / gearbox PMP 6cp reducer / gearbox PV110 pump MF110 motor
P4300 reducer / gearbox PMP 6.5cp reducer / gearbox SPV110 pump SMF110 motor
P5300 reducer / gearbox PMP 7.1cp reducer / gearbox PV112 pump MF112 motor
P7300 reducer / gearbox PMP 7.5cp reducer / gearbox SPV112 pump SMF112 motor
PMB 6.0 reducer / gearbox 575L reducer / gearbox PV090 pump MF090 motor
PMB6R100 reducer / gearbox 577L reducer / gearbox SPV090 pump SMF090 motor
PMB6.5R120 reducer / gearbox 580L reducer / gearbox A4VTG71pump TMM070 motor
PMB7aspR120 reducer / gearbox 575S3W reducer / gearbox A4VTG90 pump TMM089 motor
PMB7.1R120 reducer / gearbox 577S3W reducer / gearbox 90C pump AA2FM63/A2FM90/61W Piston Motor
PMB7YR120 reducer / gearbox 580S3W reducer / gearbox 90A pump AA2FM80/A2FM90/62W Piston Motor
PMB7.2R129 reducer / gearbox PM51.2 reducer / gearbox MA4V090 pump AA2FM90/A2FM90/63W Piston Motor
PMB7.1R130 reducer / gearbox PM61.2 reducer / gearbox PMP P110 pump 90M75 motor
PMB7.5R130 reducer / gearbox PM71.2 reducer / gearbox PMP P90 pump 90M100 motor
PMB7.8R140 reducer / gearbox TMG51.2 reducer / gearbox PMH P110 pump MSF85 motor
PMB8.0R140 reducer / gearbox TMG61.2 reducer / gearbox PMH P90 pump PMP M110 motor
PMB9YR140 reducer / gearbox TMG71.2 reducer / gearbox A4VTG090HW100/33MRNC4C92F0000AS-0 pump PMH M90 motor
PMB7.5R134 reducer / gearbox P58 reducer / gearbox A4VTG90HW/32R-NLD10F001S pump PMH M110 motor
PMB7.5R135 reducer / gearbox P68 reducer / gearbox A4VTG71 hydraulic piston pump PMH M90 motor
PMB7.5R136 reducer / gearbox P70 reducer / gearbox T90R100-35-20 hydraulic piston pump A2FO23 PISTON pump
PMB 6sp reducer / gearbox P75S reducer / gearbox T90L100 hydraulic piston pump A2FO16 PISTON pump
PMB 6.5sp reducer / gearbox P75R reducer / gearbox T90R75hydraulic piston pump A2FO18 PISTON pump
PMB 7.1sp reducer / gearbox P80 reducer / gearbox T90L75hydraulic piston pump VB99-17 reducer / gearbox
PMB 7.5sp reducer / gearbox P90S reducer / gearbox A11VO40DRG/10R-NPC12N00 PISTON pump A2FO32/61L-VAB05 PISTON pump
PMB 6cp reducer / gearbox P90 reducer / gearbox A11VLO190LRDU2/11R-NZD12K02P-S PISTON pump HA4VTG090HW/33R
PMB 6.5cp reducer / gearbox TOP P58 reducer / gearbox A11VLO190LRDU2+A11VLO130LRDU2 PISTON pump A4VG125HDMT1/32R-NSF02F021-S Piston pump
PMB 7.1cp reducer / gearbox TOP P68 reducer / gearbox A11VLO190LRDU2/11+A10VO28DR/31-K PISTON pump PK86-BF reducer / gearbox
PMB 7.5cp reducer / gearbox TOP P70 reducer / gearbox A11VLO190LRDU2/11L-NZD12K02P-S PISTON pump VB99-09 reducer / gearbox
PMP 6.0 reducer / gearbox TOP P75S reducer / gearbox A11VLO260LRDU2/11R+A10VO28DR/31R pump VB99-10 reducer / gearbox
PMP6R100 reducer / gearbox TOP P75R reducer / gearbox A11VLO260LRDU2/11R-NZD12K67P-S PISTON pump ZHP P70 reducer / gearbox
PMP6.5R120 reducer / gearbox TOP P80 reducer / gearbox A11VLO260LRDU2/11R-NZD12K02P-S PISTON pump Transit Mixer Agitator Truck Concrete Transport Vehicle
PMP7aspR120 reducer / gearbox TOP P90S reducer / gearbox A11VLO260LRDH2/11R-NZD12K02 PISTON pump 8413503190
PMP7.1R120 reducer / gearbox TOP P90 reducer / gearbox A10VO28DR/31R-VSC12K01 PISTON pump 8412291000
ZTS P68 reducer / gearbox ZHP P75S reducer / gearbox A4VG180HD1MT1/32R-NSF02F021-S PISTON pump 8708919000
ZTS P70 reducer / gearbox DD33-MF reducer / gearbox A7VO55LRDS/63L-NZB01-S PISTON pump 8483402000
ZTS P75S reducer / gearbox ZHP P68 reducer / gearbox Concrete Mixer Truck Mixer Drum Cement Mixer SAUER,Bonfiglioli,TOPUNIOU,KYB,REXROTH,PMP
