4 Tons 5T 6T 8T 10T 15T 20T Planetary Hydraulic Winch Flat High Pulling For Rescue Truck

Large Image : 4 Tons 5T 6T 8T 10T 15T 20T Planetary Hydraulic Winch Flat High Pulling For Rescue Truck

Product Details:

Place of Origin:	Hebei Province China
Brand Name:	Elephant Fluid Power
Model Number:	Planetary Flat winch

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	Based on inventory
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 Sets/month

Contact Now

4 Tons 5T 6T 8T 10T 15T 20T Planetary Hydraulic Winch Flat High Pulling For Rescue Truck

Description

Name:	Planetary Flat Winch	Warranty:	1 Year
Condition:	Brand New	Quality:	Same With Original
Sample:	1 Unit Is Avaiable	Steering Position:	Rhd, LHD
Series:	Italy PMP Series	Color:	Customized,blue,gray,Silver/Black,Black Yellow Blue
After-sales Service Provided:	Online Support,Video Technical Support,Free Spare Parts,No After-sales Service,Engineers Available To Service Machinery Overseas
Highlight:	4 Tons planetary hydraulic winch , Rescue Truck planetary hydraulic winch

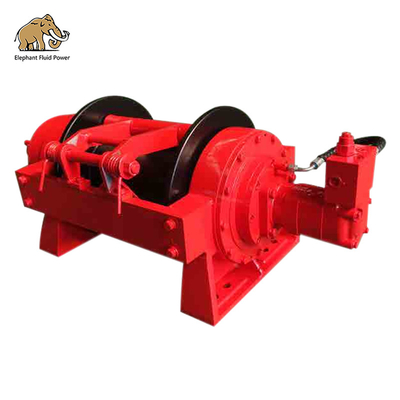

Direct Factory 4 Tons 5T 6T 8T 10T 15T 20T Planetary Flat winch High Pulling Truck Hydraulic Winch for Rescue Truck

Hydraulic winch machine is designed with a working capacity of 4 Tons to 20Tons, satisfying most demands of
towing and lifting, rescue and road clearance, forestry utilities, oil & gas, and mining & construction appliions.

The hydraulic winch can be horizontally and vertically mounted to a standard air clutch, providing fast ling output, limiting time in the danger zone, thereby reducing wear on components, and increasing efficiency and productivity on the job.

Most models can be either foot or side mounted for adaptability and ease of maintenance. Compact size reduces cable ch between drum flange and housing support end.

Elephant fluid power company' winches are manufactured to meet ISO 4301, ISO 9001, SAE J706 for the USA and CE standards for the EU.

PRODUCTS SPEACITIONS

Model	Max.output torque (N.m)	Max Line pull(kn)			max Line speed (m/min)			brake torque (N.M)	hydraulic motor
Model	Max.output torque (N.m)	1st.layer	2nd layer	3rd layer	1st.layer	2nd layer	3rd layer	brake torque (N.M)	hydraulic motor
DJ010D	1500	11.8	11.1	10.5	74	78	83	900	BM-160
DJ3D	4300	33	30	28	17	18.7	20.4	460	R2K-195
DJ5	8750	50	46	42	7	7.7	8.4	304	BMS-160
DJ5D	7600	59	53	48	11.4	12.7	14	470	R2K-245
DJ-8	7290	78.4	69.3	62	5.6	6.7	7.5	380	BMER2-160
DJ8EXA	8545	78.4	67.8	59.8	8.2	9.4	10.6	720	BMSY-200
DJ8X	8545	78.4	67.8	59.8	8.2	9.4	10.6	720	BMSY-300
DP8A8	8545	78.4	67.8	59.8	7.6	8.8	9.9	720	BMS-160
DJ10	12485	98	84	73	4.8	5.5	6.3	430	BMS-200
DJ10A8	10584	98	85.5	75.6	7.4	87.5	9.6	720	BMER2-250
DJ12	12485	120	104	91	6	6.9	7.8	430	BMS-250
DJ15	17050	147	125	110	8	9.4	10.6	560	BMS-315
DJ20	23130	196	165	142	5.6	6.7	7.6	760	BMT-390
DJ24	35000	160	140	120	4	4.5	5	1200	BMT395/245
DJ25	37975	245	209	181	6.2	7.4	8.4	800	BMT-310
DJ40	65000	400	340	300	2	2.3	2.6	1800	BMT395-315
DJ50	78400	490	403	342	2.1	2.6	3.1	1050	BMT400

Feel Free to contact us for full E-alog for checking the full models, drawings, and technical data!

Hydraulic winch machine is designed with a working capacity of 4 Tons to 20Tons,

Lead Time: Around 30 days

Warranty: 12 Months

Quality Condition: Brand NEW, 100% tested before delivery.

Elephant fluid power company' winches are manufactured to meet ISO 4301, ISO 9001, SAE J706 for the USA and CE standards for the EU.
