Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev

Name: Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev
Brand: Elephant Fluid Power Co.,Ltd
SKU: 333 G5392
Price: 857.00 USD
Availability: InStock

All Products

Hydraulic Piston Pump Parts
(452)

Hydraulic Vane Pump Parts
(26)

Construction Machinery Spare Parts
(578)

Hydraulic Tractor Pumps
(78)

Hydraulic Piston Pumps
(201)

Hydraulic Orbit Motor
(28)

Hydraulic Directional Valve
(44)

Orbitrol Steering Unit
(21)

Hydraulic Pump Bearings
(18)

Hydraulic Pump Seal Kit
(11)

Hydraulic Charge Pump
(14)

Hydraulic Pump Control Valve
(31)

Best Products

Rexroth A4vtg90 Hydraulic Piston Pump Concrete Mixer Truck Maintain Repair Rebuild Parts

A4vg180 Rexroth Motor Parts Hydraulic Axial Piston Pump For Mixing Drum

A10vo28 Rexroth Axial Piston Pump To Concrete Truck Maintain Repair

Customer Reviews

Very satisfied, good quality, fast delivery, saving a lot of costs for my pump

—— Martin

Wow, it’s perfect. Because I don’t know the model of the pump, I provided the size to them. They send the right accessories to me, and the installation is completely suitable. Thank you.

—— Filippo

I'm Online Chat Now

Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev

Large Image : Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Elephant Fluid Power
Model Number:	333 G5392

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	25 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10,000 Sets/month

Contact Now

Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev

Description

Name:	Jcb Hydraulic Pump	Quality Standard:	OEM
Code Number:	333 G5392	Material:	Iron
Warrenty:	12 MONTHS	Standard:	OEM
Highlight:	Parker twin hydraulic pump , JCB 3C twin hydraulic pump

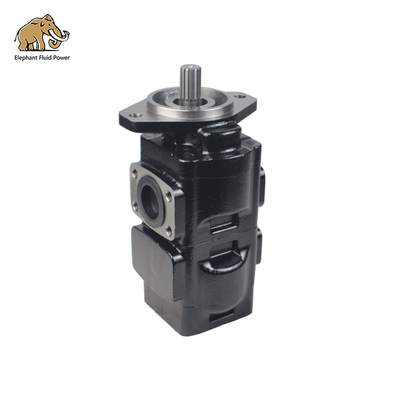

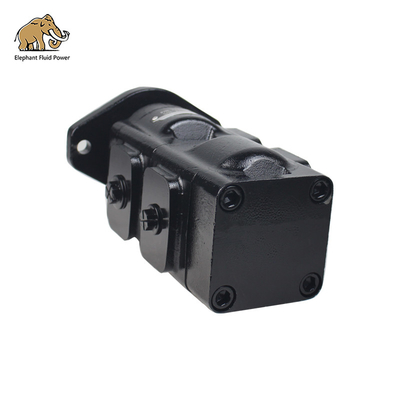

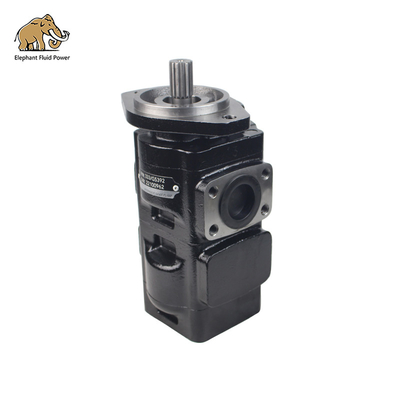

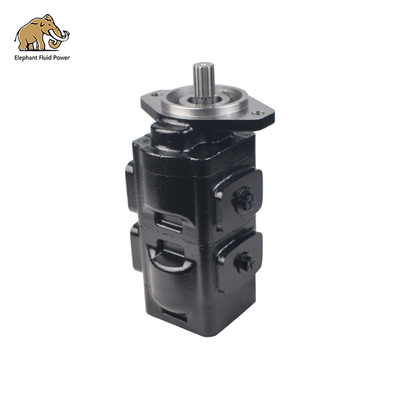

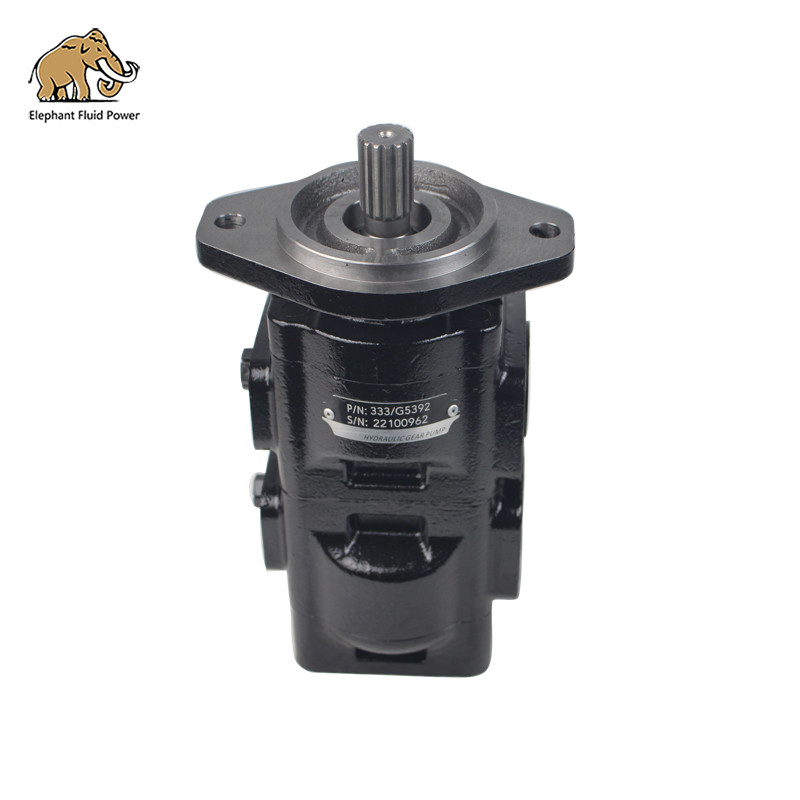

Genuine Parker/JCB 3C Twin hydraulic pump 333/G5392 29 + 23cc/rev

Key Information

Rotation: Clockwise (looking from shaft end)
1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
SAE B 2 hole mounting flange
Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 275 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

220/925586 - 333/C5234 - 333/G5392

Weight

26KG

JCB CODE

332/F9030 20/925580 7029120047

333/G5390 332/G7135

332/F9032

332/F9029 20/925579 20/925339 20/925338

332/F9031 20/925581 333/G5391

20/925340 7029120005

20/925341

20/925366 220/925586 333/C5234 333/G5392

20/925337

20/925578 20/925586 332/F9028

20/912800 20/903100 20/902900

20/903200 20/911200

20/902900

20/903000

20/903300

20/925592 20/925357

7049520006332/E6671

919/75002

20/925732

20/925588 20/925356 7029530002

20/925591 20/918300

Parker series

Parker series	PGP620 Sereis
PGP625 Sereis	PGP315 Sereis
P7600 Series	PGP330 Sereis
PGP350 Sereis	PGP360 Sereis

Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev 0

Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev 1

Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev 2

Genuine Parker / JCB 3C Twin Hydraulic Pump 333/G5392 29 + 23cc/Rev 3
