Product Details:
|
| Price: | More Favorable Price | Advantage: | Good Quality And Delivery Fast |
|---|---|---|---|
| Compatible: | 100% Replacement For Original | Delivery: | 3-5 Days |
| Horse Displacement:: | 1,080cm3 | Refueling Amount: | 17dm3 |
| High Light: | OEM hydraulic winches,2T hydraulic winches |
||
| Model | W.L.L. 1st layer |
W.L.L. top layer |
Rope Speed |
Rope diam. |
Capacity of Rope |
Working Pressure |
Max Supply Oil Flow |
| kgf | kgf | m/min | mm | m | Mpa | L/min | |
| GW1000 | 1000 | 860 | 30 | 10 | 60 | 16 | 40 |
| GW2000 | 2000 | 1680 | 30 | 12 | 50 | 16 | 70 |
| GW3000 | 3000 | 2526 | 35 | 15 | 65 | 16 | 80 |
| GW4000 | 4000 | 3335 | 35 | 16 | 65 | 17 | 100 |
| GW5000 | 5000 | 4167 | 40 | 20 | 87 | 16 | 160 |
| GW6000 | 6000 | 4922 | 40 | 21.5 | 68 | 16 | 190 |
| GW8000 | 8000 | 6698 | 40 | 24 | 100 | 16 | 260 |
| GW10000 | 10000 | 7846 | 40 | 28 | 90 | 16 | 310 |
| GW12000 | 12000 | 10080 | 30 | 30 | 175 | 17 | 270 |
| GW15000 | 15000 | 9880 | 25 | 34 | 150 | 20 | 240 |
| GW18000 | 18000 | 14700 | 30 | 38 | 143 | 18 | 360 |
The reliability of our products has been proven strongly in diverse appliions, including not limiting industrial machinery, construction machinery, ship & deck machinery, off-shore equipment, mining and metallurgical machinery.
Appliion:

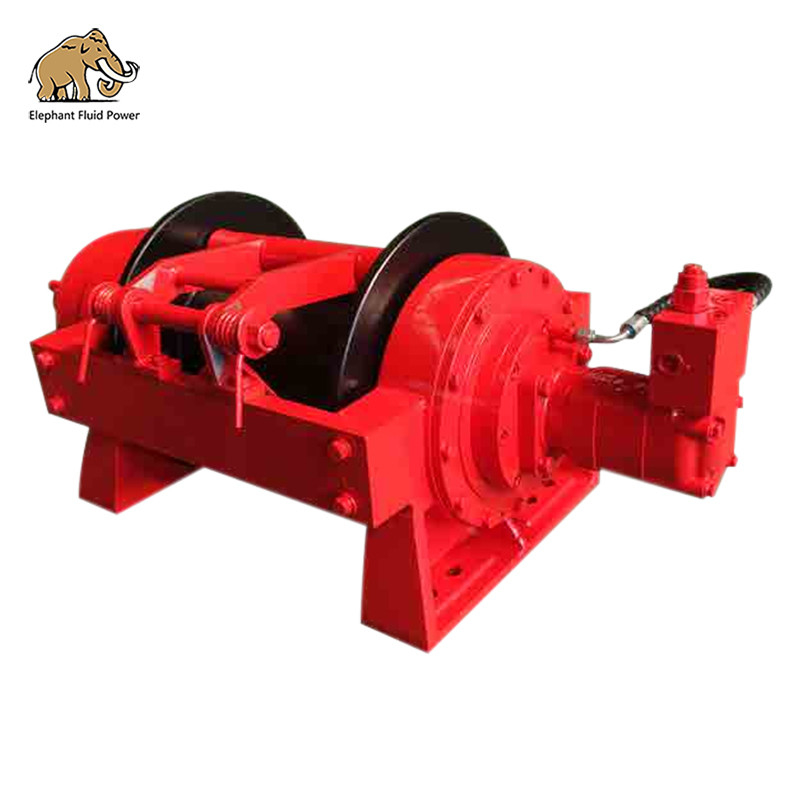

GW series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery
Besides, our product quality has been approved by multiple worldwide renowned certifie bodies. The certifiions, which our products have obtained, include EC-Type Examination Certifie, BV MODE, DNV GL Certifie, EC Attestation of Conformity, Certifie of Type Approval for Marine Product and Lloyd’s Register Quality Assurance. So far, besides china, our domestic market, we have widely exported our products to the United States, Germany, the Netherlands, Australia, Russia, Turkey, Singapore, Japan, South Korea, Malaysia, Vietnam, India and Iran. Our logistics and after sales services cover around the whole world promptly and reliably for our customers’ utmost interests.
