Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

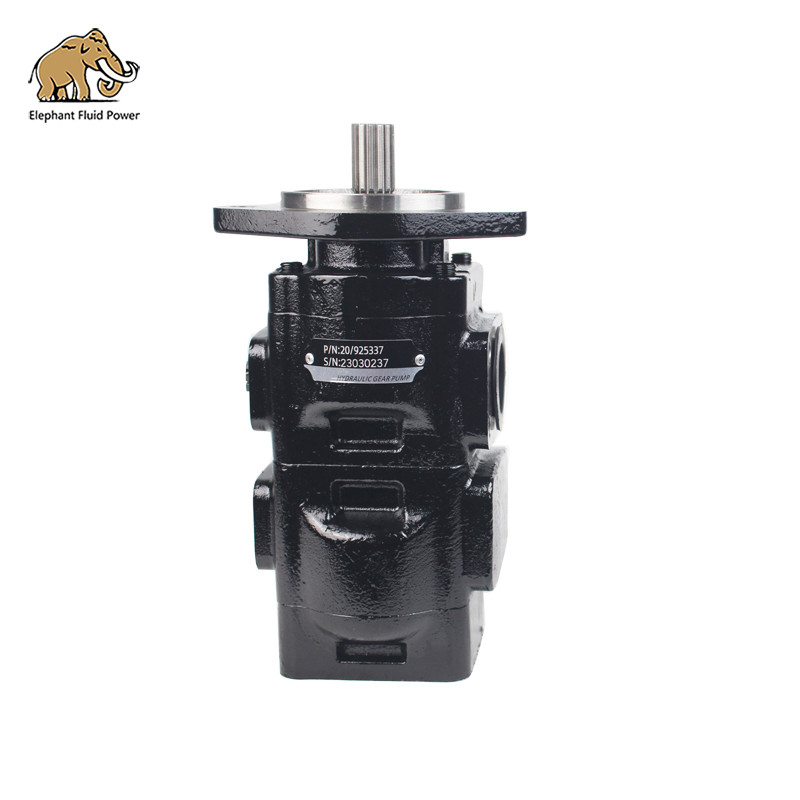

Large Image :  Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Model Number: 20/925337
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Elephant Fluid Power
Packaging Details: Carton box or wooden
Delivery Time: 5-8 days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 500000 sets per week

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

Description
Material: Iron Cast Appliion: JCB Equipment Repair
Interchange: 100% Quality: As Original
Service: After-sales Service Variety: Plenty
High Light:

OEM 20/925337 Parker Pump

,

Iron Cast Hydraulic Parker Pump

,

Hydraulic Parker Gear Pump

Elephant Fluid Power Made OEM Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump Replacement

Best Price Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump

Elephant Fluid Power offers Best Price Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump,equivalent quality as original,fast delivery time,one year warranty after-sales.

Techinical information:

  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Combined Single pump outlet: 1 1/16”-12 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Weight

  • 26KG

Replaces the following JCB part numbers

  • 20/925337

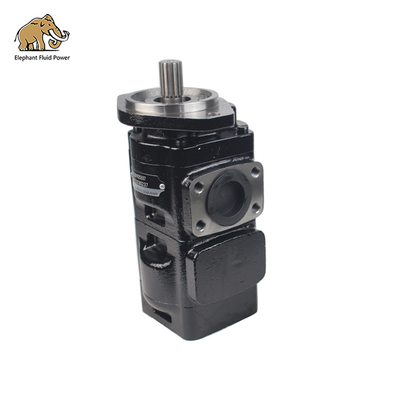

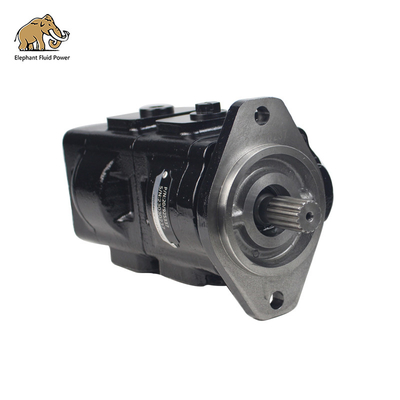

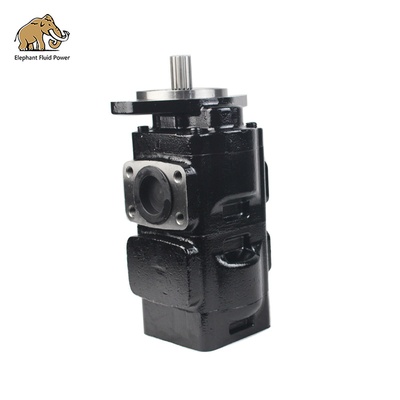

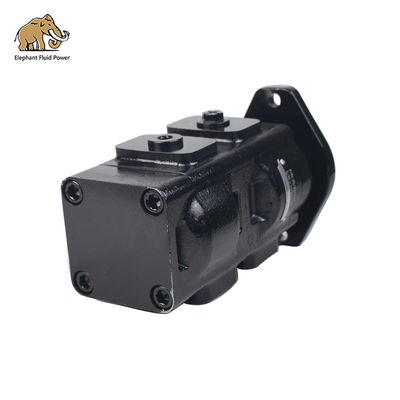

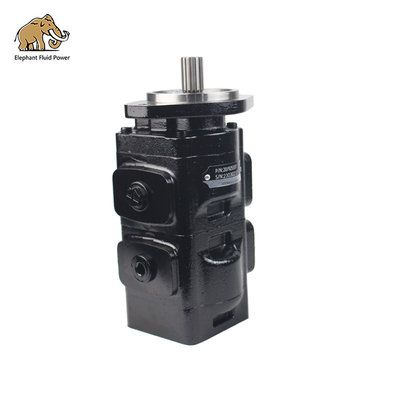

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin 0

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin 1

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin 2

JCB Pumps we supply:

At Elephant Fluid Power we have a wide range of aftermarket JCB parts, including an extensive range of HYDRAULICS parts.



  •  JCB Gear Pump   ( List as following)
  • JCB main Pump   ( K3V63 K3V112DT, K5V140DTP, HPV118, HPV145, K5V140DTP etc)
  • JCB piston Pump  ( Rexroth A10VSO, A20V Sereies )
  • Spare parts of JCB Main Pump, and Piston Pump   ( Piston, Cylinder block, valve plate, charge pump, control valve, seal kit ...)
  • JCB Steering (35/410900 35/410700 etc)

JCB CODE of Gear Pump
332/F9030              20/925580                   7029120047
333/G5390             332/G7135
332/F9032
332/F9029          20/925579         20/925339        20/925338
332/F9031            20/925581                     333/G5391
20/925340           7029120005
20/925341
20/925366          220/925586      333/C5234          333/G5392
20/925337
20/925578               20/925586           332/F9028
20/912800               20/903100            20/902900
20/903200             20/911200
20/902900
20/903000
20/903300 4074
20/925592                 20/925357
7049520006               332/E6671
919/75002
20/925732               7049532007
20/925588              20/925356                      7029530002
20/925591             20/918300





Our Hydraulic Pump - JCB gear pumps and piston pumps can be shipped to over 70 countries worldwide. If you need any help in choosing the right part or want to make sure the part is the right one for your machine, then our friendly team will be more than happy to help.Our products have been a famous brand in the world based on our quality and services.If you need any of them,you can contact me for more details.
