Product Details:
|
| Meterial: | Cast,Ductile Iron, Steel, Bronze And Others | Name: | Hydraulic Pump Spare Parts |
|---|---|---|---|
| Type: | MS(E)02,MS(E)05,MS(E)08,MS(E)11,MS(E)18,MS25,MS35,MS50,MS83,MS125... | Appliion: | Piston Pump Repair |
| Quality: | High Quality | Advantage: | Fast Delivery,Advantage Price |

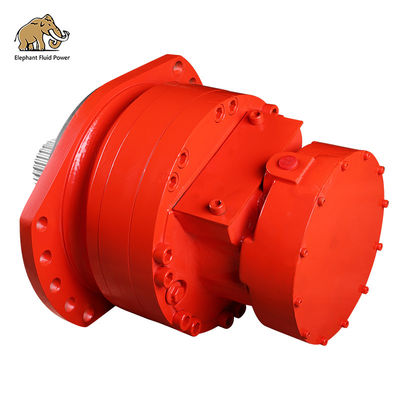

| High Light: | Poclain Ms18 Radial Hydraulic Motors,Poclain Ms18 ydraulic Piston Pump Parts,Radial Hydraulic Motors OEM |
||
1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Code | HMS18 | HMSE18 | ||||||||||
| Displacement Group | 6 | 8 | 9 | 0 | 1 | 2 | 0 | 1 | 2 | |||
| Displacement (ml/r) | 1091 | 1395 | 1571 | 1747 | 1911 | 2099 | 2340 | 2560 | 2812 | |||
| Theoretical Torque at 10Mpa (N.m) | 1735 | 2218 | 2498 | 2778 | 3337 | 3337 | 3721 | 4070 | 4471 | |||
| Rated Speed (r/min) | 100 | 100 | 100 | 80 | 80 | 80 | 60 | 63 | 50 | |||
| Rated Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |||
| Rated Torque (N.m) | 3580 | 4550 | 5150 | 5700 | 6250 | 6900 | 7650 | 8400 | 9200 | |||
| Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | |||
| Max. Torque (N.m) | 4420 | 5650 | 6350 | 7050 | 7700 | 8500 | 9450 | 10350 | 11400 | |||
| Speed Range (r/min) | 0-170 | 0-155 | 0-140 | 0-125 | 0-115 | 0-110 | 0-90 | 0-85 | 0-75 | |||
| Max. Power (kw) | Standard displacement is 70KW,variable displacement priority rotation 33KW,no priority is 25KW | |||||||||||
Appliions:
Mining Machinery: Coal Mine Drill, Heavy Duty Handling Car.
Engineering Machinery: Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Ditcher
