Truck Mounted Cranes Dcv100 Manual Hydraulic Valve

Truck Mounted Cranes Dcv100 Manual Hydraulic Valve
Truck Mounted Cranes Dcv100 Manual Hydraulic Valve Truck Mounted Cranes Dcv100 Manual Hydraulic Valve Truck Mounted Cranes Dcv100 Manual Hydraulic Valve

Large Image :  Truck Mounted Cranes Dcv100 Manual Hydraulic Valve

Product Details:
Place of Origin: China
Brand Name: Elephant fluid power
Certification: ISO9001,CE
Model Number: DCV100-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000 Sets per month

Truck Mounted Cranes Dcv100 Manual Hydraulic Valve

Description
Nom. Pressure: 35 MPA Max.Pressure: 31.5 MPA
Nom. Flow Rate: 200 L/M Back Pressure: ≤1
Tem.range: -40~+80 Visc.range: 10~400
Filtrating Accuracy: ≤10
High Light:

dcv100 manual hydraulic valve

,

truck mounted cranes manual hydraulic valve

,

dcv100 manual hydraulic control valve



Truck Mounted Cranes Directional Control Valve DCV100 Manual Control



When safe, rugged, long-life performance is needed, Hanjiu Hydraulic Directional Valve & Power Systems products are there to do the job. Hanjiu Offer a full line of directional control valves, hydraulic controllers and crane specific solutions for this market. Hanjiu offer a range of original quality and OEM replacement hydraulic components for Construction, Mobile, Heavy duty equipment.



Elephant Fluid Power has developed application specific control solutions for this market, which are intended to improve machine performance and lower the installed cost. Our long standing application knowledge of these machines has enabled Parker to develop features truly valued by the customer and the end-user.



Hydraulic hand valves enable operator to control hydraulic system and individual components.

We supply all types of hydraulic valves like Monoblock, Sectional, Manual, Joystick, Cable, Pneumatic, Solenoid, electro-pnematic, electro-hydraulic, etc. which are mostly used in marien applications, construction machinery, agricultural machinery, heavy road vehicles and industry.





Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS

Nom. Pressure
(MPa)
Max.Pressure
(MPa)

Nom. Flow rate (L/min)

Back Pressure(MPa)
hydraulic oil
Tem.range
(ºC)
Visc.range
(mm2/S)
filtrating accuracy
(μm)
35 31.5 200 ≤1 -40~+80 10~400 ≤10



DCV valve Flow Nom. Pressure Spool
DCV 20 20L/Min 100 ~315 BAR 1-12 sections
DCV 40 40L/Min 100 ~315 BAR 1-12 sections
DCV 45 45L/Min 100 ~315 BAR 1-12 sections
DCV 60 60L/Min 100 ~315 BAR 1-12 sections
DCV 100 100L/Min 100 ~315 BAR 1-12 sections
DCV 140 140L/Min 100 ~315 BAR 1-12 sections
DCV 200 200L/Min 100 ~315 BAR 1-12 sections





DCV directional control valve have the features of below

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional

Elephant Fluid Power manufacture both pressure compensated directional control valves, and directional control valves. Made of cast iron, our valves are durable and have a long life. They perform well, even in adverse conditions, due to their design. Depending on the specific application, there are multiple types of valves from us, please contact us to get more informations

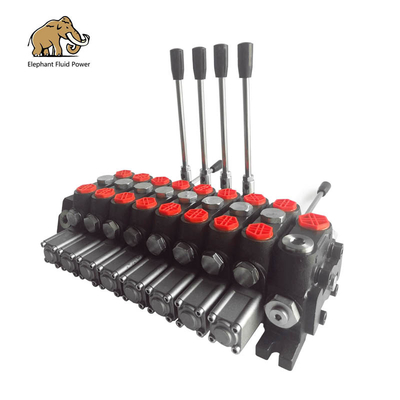

Truck Mounted Cranes Dcv100 Manual Hydraulic Valve 0

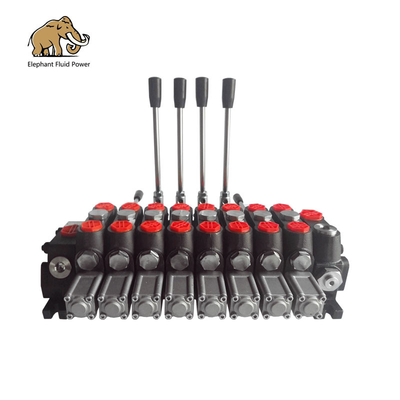

Truck Mounted Cranes Dcv100 Manual Hydraulic Valve 1

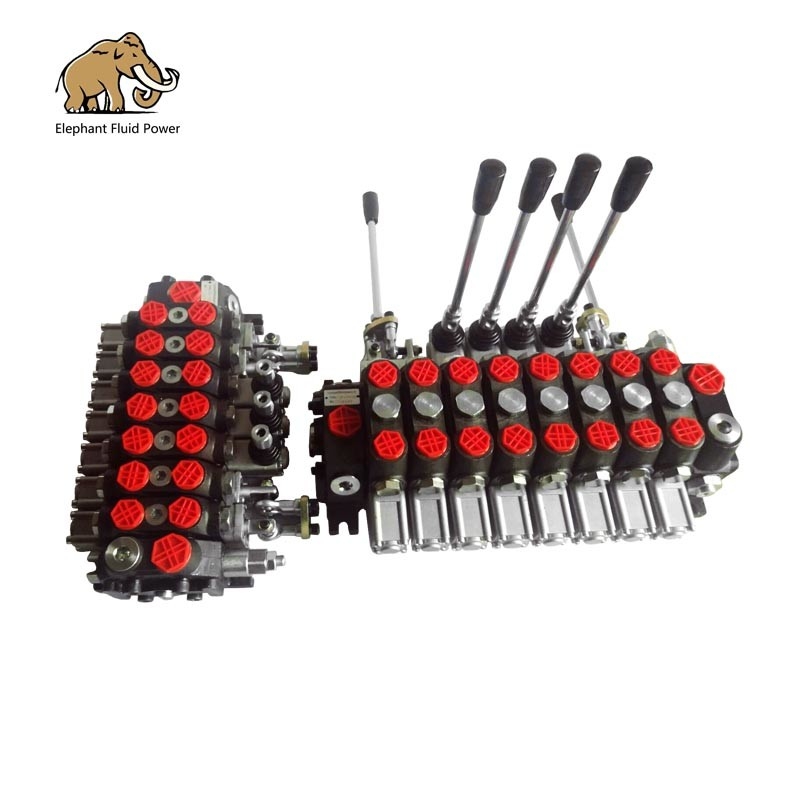

Truck Mounted Cranes Dcv100 Manual Hydraulic Valve 2
