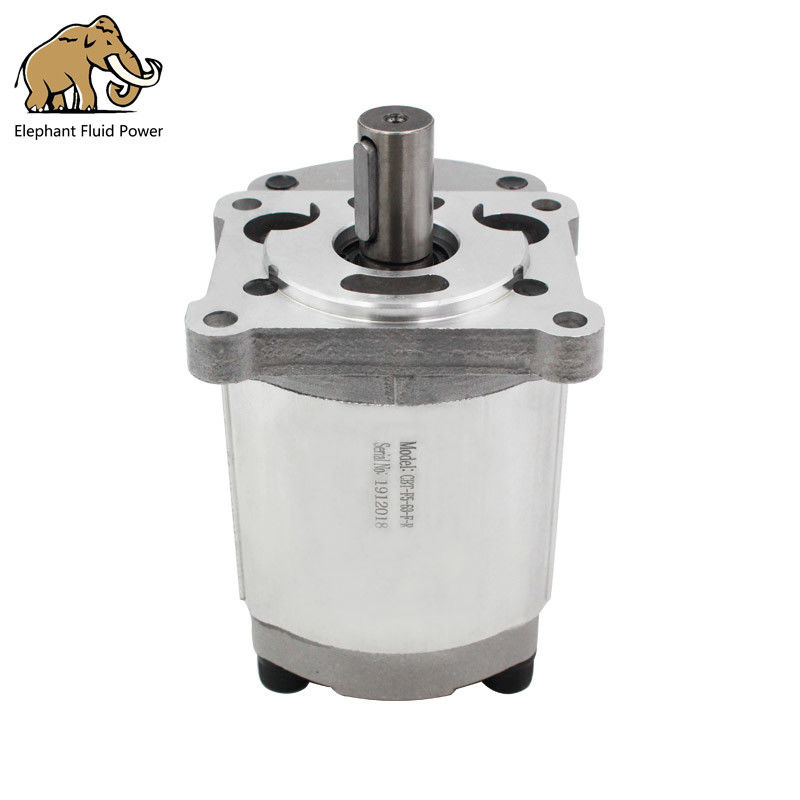

3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery

Customer Reviews
Very satisfied, good quality, fast delivery, saving a lot of costs for my pump

—— Martin

Wow, it’s perfect. Because I don’t know the model of the pump, I provided the size to them. They send the right accessories to me, and the installation is completely suitable. Thank you.

—— Filippo

I'm Online Chat Now

3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery

3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery
3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery 3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery 3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery 3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery 3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery 3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery

Large Image :  3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: SGS
Model Number: CBT-F5-63
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 5-30 Days
Payment Terms: T/T, L/C, Western Union

3000rpm CBT-F5-63 Hydraulic Gear Pump For Agricultural Machinery

Description
Quality: High Quality Pressure: High Pressure
Theory: Axial Flow Pump Certificate: CE SGS
Warranty: One Year Speed: 600-3000rpm
Application: Machinery Manufacturing Advantage: Good Quality And Delivery Fast
High Light:

CBT-F5-63 hydraulic gear pump

,

3000rpm hydraulic gear pump

,

SGS hydraulic gear pump

original reinforced tractor hydraulic gear pump CBT-F5-63 for agricultural machinery

CBT-F5-63 tractor hydraulic gear pump are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weig



product Description:

Product Name
original reinforced tractor hydraulic gear pump CBT-F5-63 for agricultural machinery
Inlet Outlet Connection
Flange
Shaft
plain/ square key
Application
mobile equipment,construction machinery, crane equipment, lift equipment, mining equipment, agriculture machinery, industry machines







Specification:


Model Disp.
(ml/r)
Pressure
(Mpa)
Speed
(r/min)
VE
(≥%)
L1 L2 A B D Weight
(kg)
Rated Max Rated Max Min   Inlet Outlet
CBT-F532 32


20



25



2500



3000



600

93
66 129 48 65 24 19

24
5.04
CBT-F550 50 72 140
51

78

30
5.6
CBT-F563 63 81.5 162 6.42
CBT-F580 80 83 167 6.6






Other similar gear pump:

CBN-*300
CBK-F100
CBY-2000
HGP-1A
RGP-F100
HGP-3A/1A
CBT-F300
CBK-F200
CB-B
HGP-2A
RGP-F200
CBS-D500
CBW-F300
CBK1000
CBQ
HGP-3A
RGP-F300
CBQZ
CBS-D300
CBW-F200
CBG
HGP-4A
RGP-F400
CBG
CBTS-F300
CBD1-F200
CBHC-F
GPY-F
GHP1
AZPS
CBS/F-D300
CBD2-F200
CBHZ-F
HGP-11A
GHP2
CBWL-F300
CBF-F400
CBQ-F500
CBHZA-F
HGP-22A
ALP1
CBNL-F500
CBT-F400
CBT-F500
CBNL-E300
HGP-33A
ALP2
CBN-F500/300







Why chose us:



Quality : High quality
Price : Very competitive
Servicvs : The best
Delivery : Fast delivery



Company Information:



The hydraulic pump is an important part of the tractor's hydraulic drive system. It uses hydraulic oil to transfer energy from pressure. The tractor's hydraulic gear pump is actually an electric generator. Elephant Fluid Power provides various brands of tractor hydraulic gear pumps.

In order for you to find the most suitable tractor hydraulic gear pump, our company provides different types of tractor hydraulic pump specifications for your reference. You can also contact our staff to help determine the most suitable hydraulic pump.

Our other main business:

Hydraulic piston pump and spare parts Hydraulic vane pump and spare parts
Hydraulic piston motor and spare parts Hydraulic orbital motor
Hydraulic steering unit Hydraulic gear pump
Directional control valve
