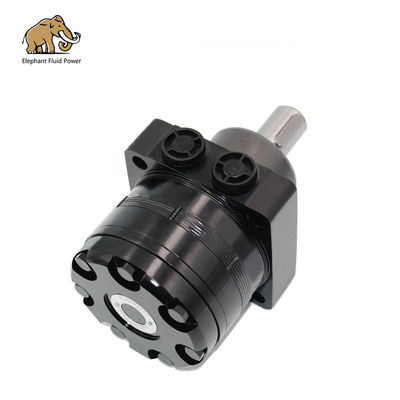

Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component

Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component
Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component

Large Image :  Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: ISO9001
Model Number: BMER
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box,Wooden box
Delivery Time: 10-30 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30000 Set/month

Bmer-2-250 Bmk Motor For Industrial Excavator Dynamic Fluid Component

Description
Meterial: Cast Iron Name: Hydraulic Motor
Model: BMK Application: Hydraulic Equipment
Warranty: 12-18 Months Displacement (cm3 /rev.): 419
Oiginal: Made In China Price: More Favorable Price
High Light:

bmer-2-250 bmk motor

,

industrial excavator bmk motor

,

dynamic fluid component bmk motor

hydraulic motors pdf BMER-2-250 for industrial excavator, Dynamic fluid component

BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.





Characteristic featutres:

.It has the characteristics of high working pressure, high working efficiency, good stability at low speed, high volume efficiency, good efficiency and long working life. On the basis of the standard structure, the multi-functional variant design can be designed according to the user's needs.




Specifications:



Type BMER
125
BMER
160
BMER
200
BMER
230
BMER
250
BMER
300
BMER
350
BMER
375
BMER
400
BMER
475
BMER
540
BMER
650
BMER
750
Geometric displacement
(cm3 /rev.)
118 156 196 228 257 296 345 371 405 462 540 647 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 185 160 140 115 100
int. 490 470 425 365 350 315 270 240 220 195 170 138 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1010 1085 980 1015 1050
int. 380 525 600 710 790 930 1035 1140 1180 1180 1240 1250 1180
peak 450 590 750 870 980 1120 1285 1360 1360 1260 1380 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 15.5 14.5 11.5 10.0 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 18.0 16.5 15.0 12.0 10.0
Max. pressure
drop (MPa)
cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 19 17.5 14 12 10.5
int. 24 24 24 24 24 24 24 24 22.5 19 17.5 15.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 25 20.5 20.5 17.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90 90 90

*Continuous pressure:Max.value of operating motor continuously.
*Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
*Peak pressure:Max.value of operating motor in 0.6 second per minute.





Application:

BMER series orbital hydraulic motor is an advanced hydraulic motor with high-speed distribution structure. The series of motors use inlaid-column rotary stator .Hydraulic motors, also known as oil motors, are mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, ship machinery, petrochemicals, port machinery, etc.



Why choose us?



High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids
Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)







Our company:

Elephant fluid power hydraulic motors, hydraulic pumps and other hydraulic accessories are widely used in engineering, agriculture, mining, navigation and other equipment. In order to let customers know their needs more clearly, we have pdf introductions of various hydraulic motors, pdf introductions of hydraulic pumps, and pdf introductions of related hydraulic accessories. In the pdf, we described the detailed parameters, usage and installation process of different products in detail, and also compared with other models, so that customers have a simple understanding of the hydraulic motors and hydraulic pumps they need. You can contact me or log on to our company website to find a staff member for a PDF introduction of related hydraulic products..At present, most popular Brands in Hydraulics are Danfoss, Char Lynn, M+S, HANJIU, each with its own merits, however the reason why more and more clients choose HANJIU is because it has obvious advantages over other brands in terms of delivery, service, quality and profit rate.
