16MPa Hydraulic Orbital Valve Steering Gear Large Displacement

16MPa Hydraulic Orbital Valve Steering Gear Large Displacement

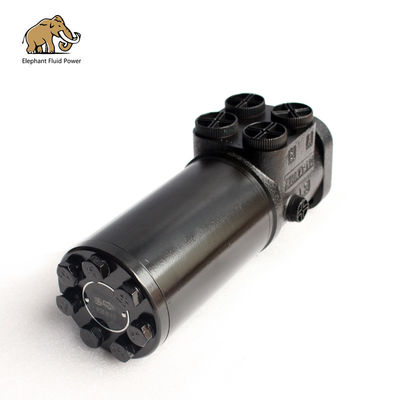

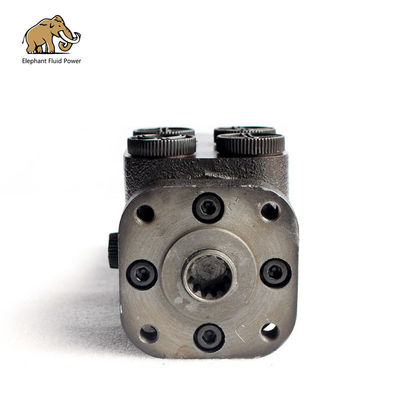

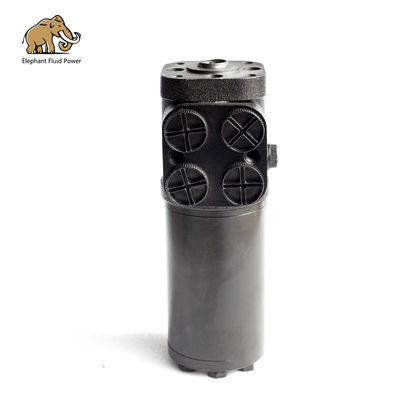

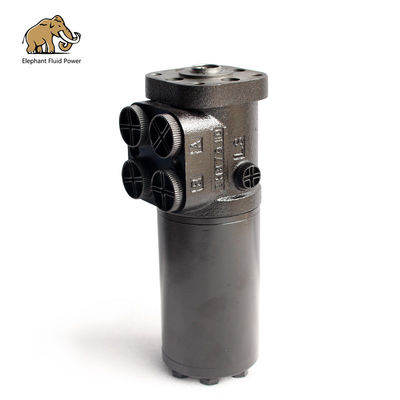

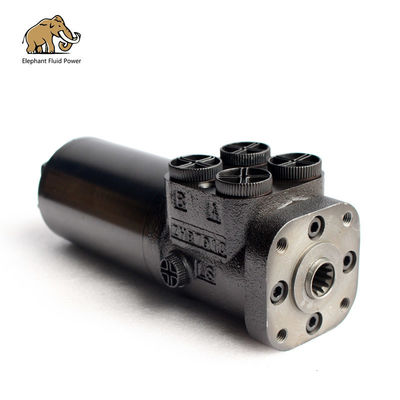

16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 16MPa Hydraulic Orbital Valve Steering Gear Large Displacement

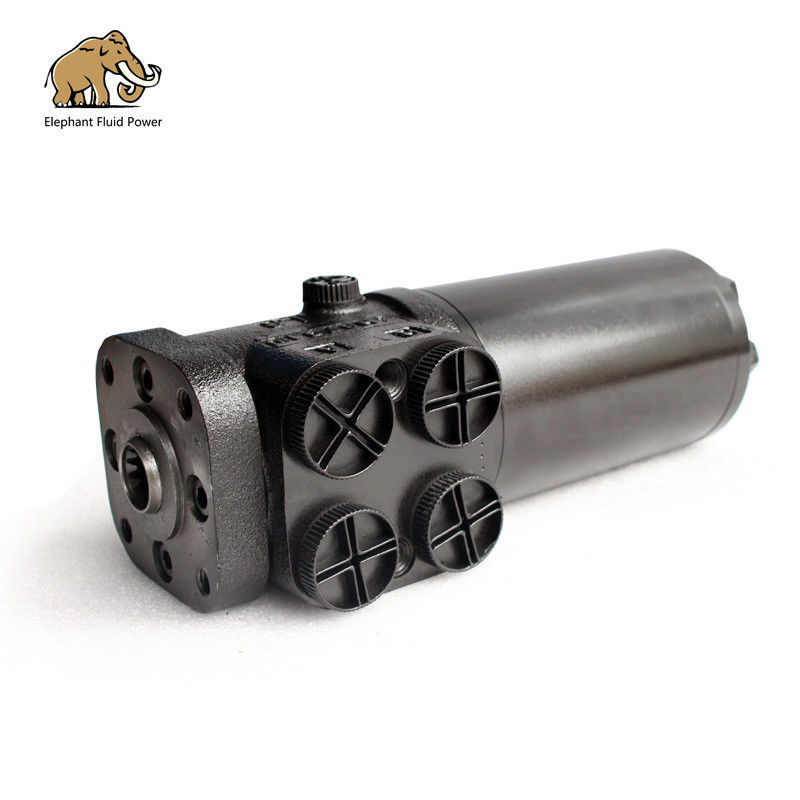

Large Image :  16MPa Hydraulic Orbital Valve Steering Gear Large Displacement

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: ISO9001,CE,SGS
Model Number: BZZ5-E1000B-B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month

16MPa Hydraulic Orbital Valve Steering Gear Large Displacement

Description
Material: Ductile Iron, Steel, Bronze And Others Name: Hydraulic Steering Unit
Model: BZZ5-E1000B-B Quality: High Quality
Original: Made In China Application: Loader
Other Name: Steering Gear Warranty: 12-18 Months
High Light:

Steering Gear hydraulic orbital valve

,

16MPa hydraulic orbital valve

,

16MPa hydraulic steering orbital valve

BZZ Series Orbitrol Steering Unit For Loader BZZ5-E1000B-B Steering Gear Large Displacement Full Hydraulic Steering







Product details:



Larger inlet pressure: 16MPa


Greater back pressure: 2.1MPa


Higher working oil temperature: 80



Power steering torque: 1.75.0Nm


Greater manpower steering torque: 136Nm


Open core unresponsive steering system


The system has the following characteristics and requirements:
The middle position of the steering gear is in an open state (open core), that is, when the steering gear is not working, the hydraulic oil passes through the steering gear and directly returns to the oil tank.
Simple steering system, more widely used
The system should use a fixed pump for oil supply



Advantages of steering gear:


1. The steering system is simple and low in cost;
2. The steering load does not directly act on the steering wheel, and the operation is comfortable;
3. The steering torque is low, and the steering wheel can be continuously turned freely;
4. There are many product specifications and a wide range of apprenticeships, ranging from 80-1250mlr, which can meet various needs;
5. Valve blocks with different functions and pressure levels can be connected according to the needs of the system;
6. In addition to the above advantages, the BZZ5 load-sensing full hydraulic steering gear also has the following characteristics:
·Regardless of the load pressure and the speed of the steering wheel, the corresponding flow can be allocated according to the demand of the steering oil circuit to ensure reliable, sensitive and light steering.
·The flow rate output by the oil pump, in addition to the required flow rate for the steering system, can be used by the auxiliary oil circuit to eliminate the power loss caused by excessive oil supply in the steering oil circuit and improve the system efficiency.



Specification:



Wheel Loader Hydraulic Steering Units
BZZ1 Series
BZZ2 Series
BZZ3 Series
BZZ5 Series



16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 0








Application:



The BZZ series steering gear has the characteristics of large steering thrust and low operating torque. It is suitable for hydraulic steering of low-speed heavy vehicles such as construction machinery, forklifts, large and medium horsepower tractors, combine harvesters and other hydraulic steering and hydraulic navigation operations of ships


16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 1

16MPa Hydraulic Orbital Valve Steering Gear Large Displacement 2
