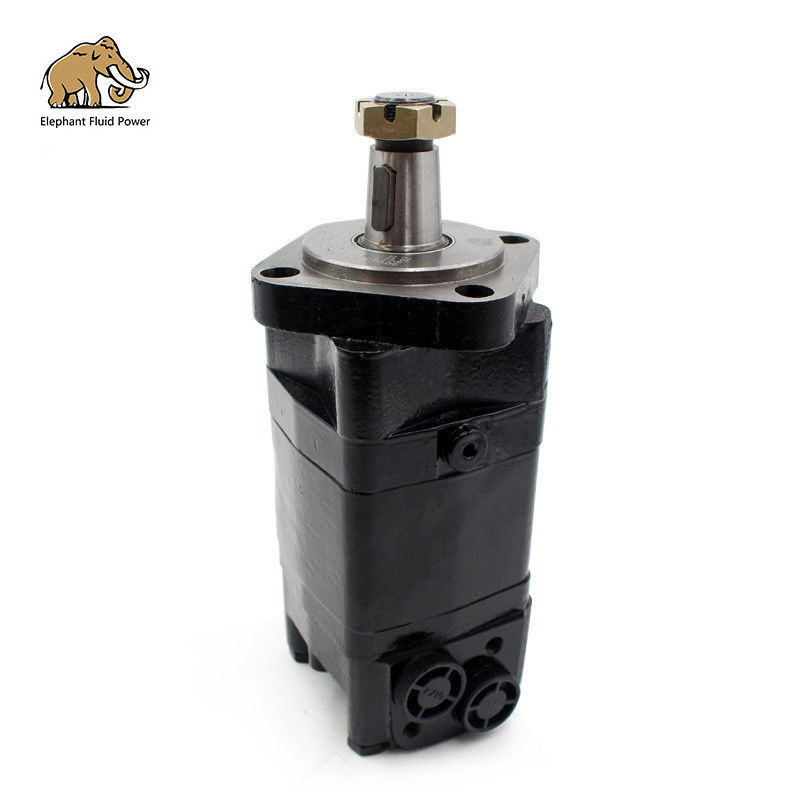

Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair

Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair
Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair

Large Image :  Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: ISO9001
Model Number: BMSY Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton,wooden case or as your requirements
Delivery Time: 3-15 days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 30000 sets per month

Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair

Description
Material: Cast Advantage: Good Quality And Delivery Fast
Compatible: 100% Interchange With The Original Ones Delivery: 3-15 Days
Application: Heavy Machine Repair Price: More Favorable Price
High Light:

Geroler charlin hydraulic motor

,

charlin hydraulic motor

,

Geroler hydraulic drive motor

Elephant Fluid Power BMSY new series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.







  BMSY BMSY BMSY BMSY BMSY BMSY BMSY BMSY BMSY
80 100 125 160 200 250 315 400 475
Displacement 4.92 6.15 7.63 9.39 11.83 14.83 18.97 24.04 28.98
in3/rev (cm3/rev) -81 -101 -125 -154 -194 -243 -311 -394 -475
Max Speed Cont. 800 748 600 470 375 300 240 185 155
rpm
  Int. 988 900 720 560 450 360 280 225 185
Max Torque Cont. 1991 2566 3230 4292 5185 6265 7787 7786 8053
in•lbf
  Int. 2212 2832 3540 4778 5707 7142 8495 8495 8495
Max Differential Cont. 2973 2973 2973 3045 3045 2900 2900 2320 2030
psi
  Int. 3265 3265 3265 3265 3265 3265 3265 2563 2175
Max Flow Cont. 17.1 19.81 19.81 19.81 19.81 19.81 19.81 19.81 19.81
gpm
  Int. 36.4 23.77 23.77 23.77 23.77 23.77 23.77 23.77 23.77
Weight   23.7 24.05 24.75 25 26.15 27.35 28.95 30.95 32.8
lbs



Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair 0

Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair 1



* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
* The new series motor is suitable for vehicles with greater loads and pressure drop.

If you have any questions, please contact customer service and I am at your service.

Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair 2

Geroler Charlin Hydraulic Motor BMSY Series Heavy Machine Repair 3
