OSPM Orbitrol Steering Unit

OSPM Orbitrol Steering Unit
OSPM Orbitrol Steering Unit OSPM Orbitrol Steering Unit OSPM Orbitrol Steering Unit OSPM Orbitrol Steering Unit OSPM Orbitrol Steering Unit OSPM Orbitrol Steering Unit

Large Image :  OSPM Orbitrol Steering Unit

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE,SGS
Model Number: 109S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month

OSPM Orbitrol Steering Unit

Description
Product Name: Hydraulic Steering Unit Displacement: 100CC
Model No: 109S Material: Cast,Ductile Iron, Steel, Bronze And Others
Warranty: 12-18 Months Quality: High Quality
Presure: High Pressure Application: Tractor
High Light:

OSPM Orbitrol Steering Unit

,

109S Orbitrol Steering Unit

,

109 S orbital steering valve sizing

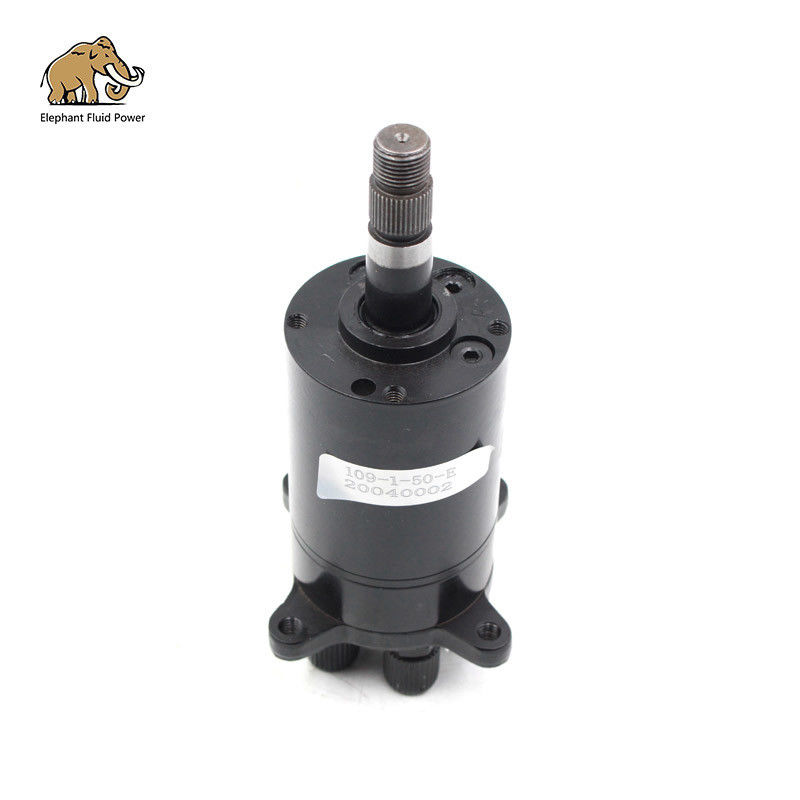

Tractor Hydraulic Orbitrol Steering Valves 109 Series , OSPM Series High Pressure 109-1-50-E







Product detail:



109 series hydraulic steering unit is an integrated orbital steering unit with 4/5 tooth structure.This kind of steering unit has a
small and exquisite structure with integrated check valve, relief valve and shock valves and its mounting dimension conforms
to international standard.It can obtain more steering output torque
through input of less power, with features of easy, flexible and reliable operation.




Specifications:



Parameters Type 109*-1-***-**-*
Displacement(mL/r) 20 32 40 50 63 80
Rated flow(L/min) 3~20
Rated Pressure(MPa) 12.5
Relief Valve Pressure Settings(MPa) 06,07,08,09,10
Shock Valves Pressure Settings(MPa) 12,13,14,15,16
Steering Torque(N·m) ≤1.8
Max.Cont.Preesure in Line T-PT(MPa) 1
Dimension L(mm) 87 92 96 100 105 113

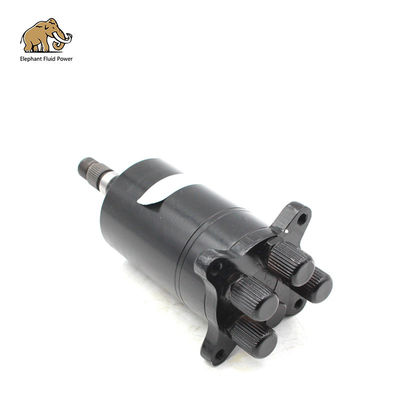

OSPM Orbitrol Steering Unit 0

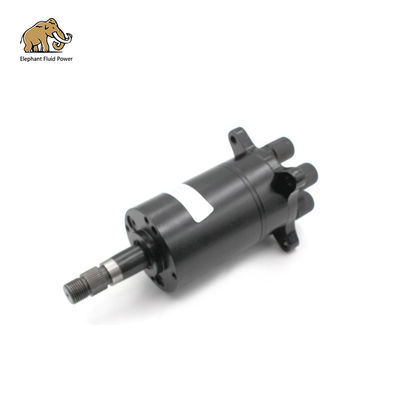

OSPM Orbitrol Steering Unit 1

OSPM Orbitrol Steering Unit 2

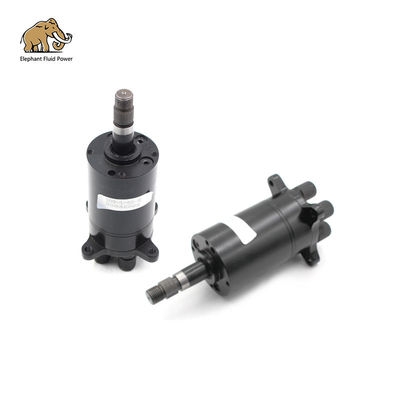

OSPM Orbitrol Steering Unit 3










Product application:



Widely used in mini vehicles, such as mini forklift, mini tractor (and
other agricultural machinery), mini earthmoving machinery,mini municipal vehicle, etc





Products Features:



1) We are professional manufacturer produce Hydraulic steering units .

2) Quality match than , M+S, Eaton.

3) Match than OEM spare parts code number.

4) Application Kubota K7561-41510





Products Features:



1  Small dimensions and low weight
2  End ports with integrated fittings
3  Easy installation and accessibility
4  Possibility of integrated steering column· Low pressure drop
5  Low input torque
6  Low system price
7  Low noise

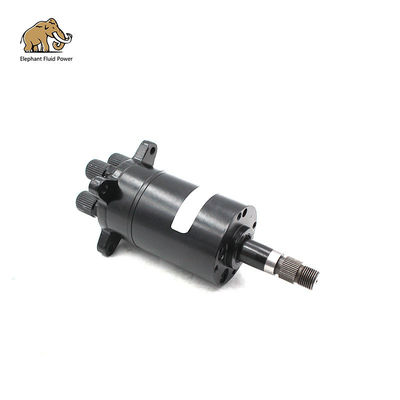

OSPM Orbitrol Steering Unit 4



OSPM Orbitrol Steering Unit 5
