BZZ5 Hydraulic Steering Control Valve

BZZ5 Hydraulic Steering Control Valve

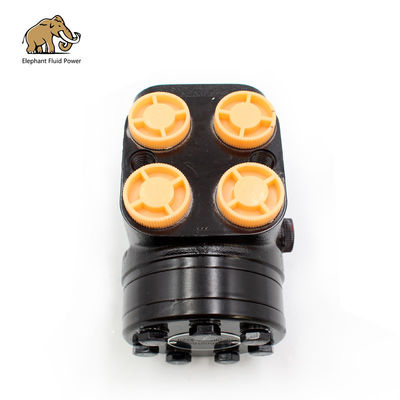

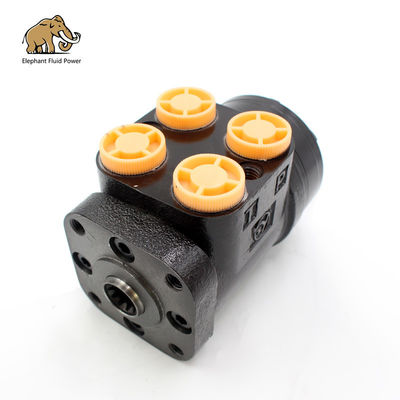

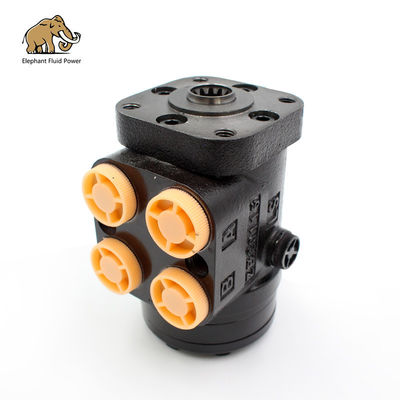

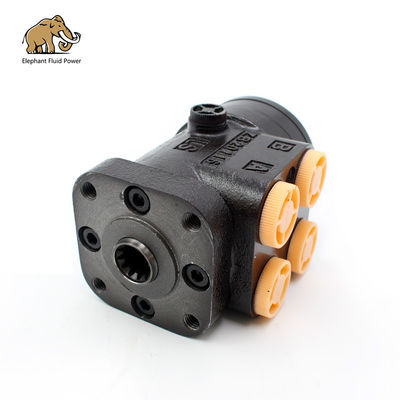

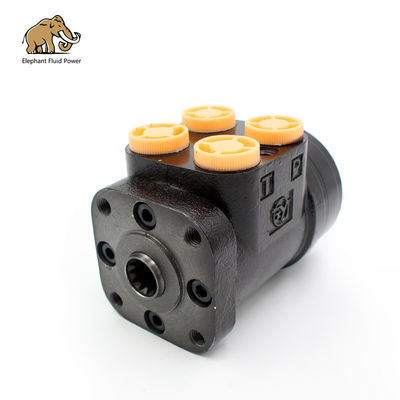

BZZ5 Hydraulic Steering Control Valve BZZ5 Hydraulic Steering Control Valve BZZ5 Hydraulic Steering Control Valve BZZ5 Hydraulic Steering Control Valve BZZ5 Hydraulic Steering Control Valve BZZ5 Hydraulic Steering Control Valve

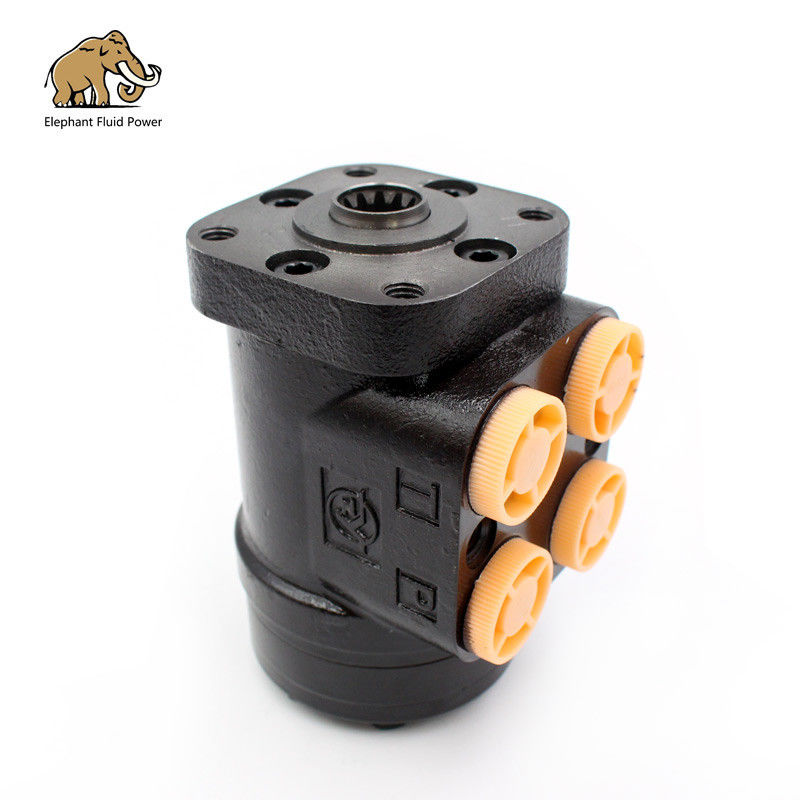

Large Image :  BZZ5 Hydraulic Steering Control Valve

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE,SGS
Model Number: BZZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month

BZZ5 Hydraulic Steering Control Valve

Description
Product Name: Hydraulic Steering Unit Displacement: 100CC
Model No: BZZ Material: Cast,Ductile Iron, Steel, Bronze And Others
Warranty: 12-18 Months Quality: High Quality
Dispalcement: 125cc Other Name: Hydraulic Power Unit
High Light:

BZZ5 hydraulic steering control valve

,

125cc hydraulic steering control valve

,

125cc orbital steering control valve

Eaton Hydraulic Parts Hydraulic Orbitrol Steering BZZ5-E125BC-D Hydraulic Power Unit Marine Hydraulic Steering







Product detail:



SCU can be used in the area of steering of vehicle and hydraulic rudder of ships where the operator can use it to control power steering force with light operating force.It is safety ,reliable and smooth in the function and operation.
The operation of steering units is hydrostatic. That is to say, there is no mechanical connection between the steering column and the steered wheels.Instead there are hydraulic pipes and hoses between steering unit and steering cylinders.
When the steering wheel is turned, the steering unit meters an oil volume proportional to the rate of rotation of the steering wheel.This volume of oil is directed to the appropriate side of the steering cylinder, while simultaneously the displaced oil is directed to tank.




Specifications:





Wheel Loader Hydraulic Steering Units
BZZ1 Series
BZZ2 Series
BZZ3 Series
BZZ5 Series



BZZ5 Hydraulic Steering Control Valve 0






Product application:



Hydraulic steering control unit(SCU) is widely used both in the steering system of vehicles and the marine rudder. The operator
can obtain bigger steering control force with less steering force, and its function is more safety and reliable, its operation is more
smooth and flexible.





Products Features:



 Can help you reduce the machinery cost without mechanical linkage device, and can offer reliable and   light structure.
 Can operate more flexible with light steering torque
 Can offer emergent manual steering in case of engine failure
 Can be steering at the continuous speed with less steering torque.
 Can offer various hydraulic system and different mounting choice
 Can link various steering pump and hydraulic steering system





Product Advantage:



 The steering load does not directly act on the steering wheel, and the operation is comfortable
 Low steering torque, the steering wheel can be continuously turned freely
 The product has many specifications and a wide range of displacement, from 50 to 1250 mlr, which   can  meet various needs
 According to system needs, valve blocks of different functions and pressure levels can be connected
 With all the performance of load sensing
 The middle position of the steering gear is in a disconnected state (closed core), that is, when the   steering gear is not working, the hydraulic oil is blocked by the steering gear, and the steering gear   inlet  has a higher pressure
 The steering circuit and other working circuits do not affect each other, and the main flow is given   priority to ensure the steering circuit. When the steering gear is in the neutral position, only a small   amount of flow passes through the steering gear, and the system saves energy



BZZ5 Hydraulic Steering Control Valve 1

BZZ5 Hydraulic Steering Control Valve 2
