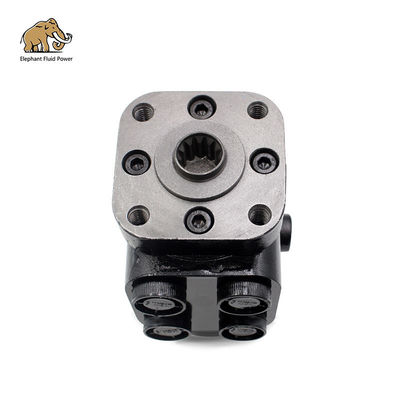

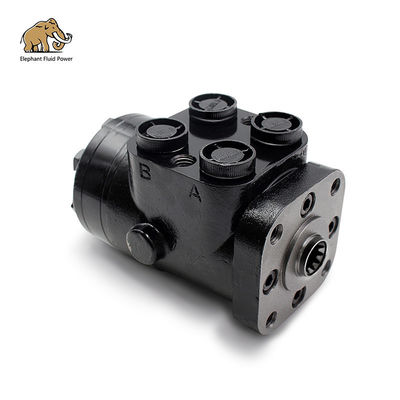

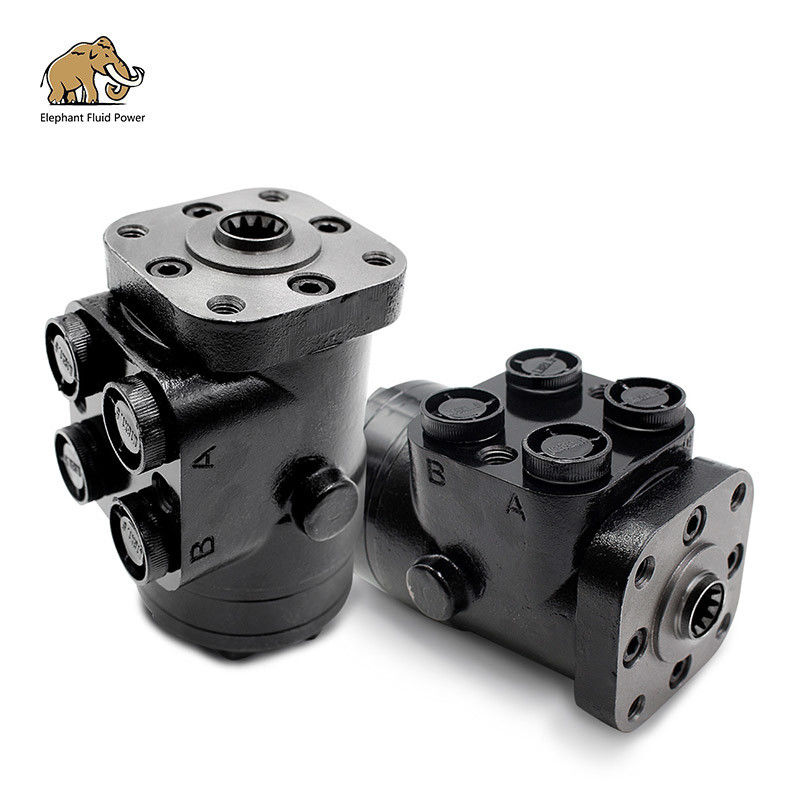

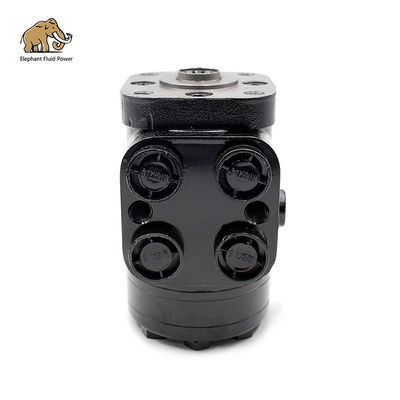

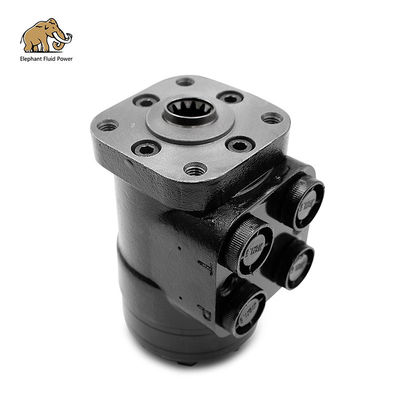

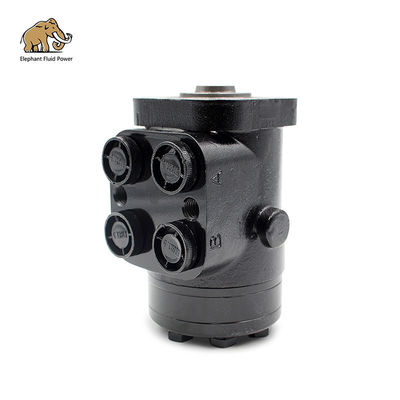

100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift

100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift
100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift

Large Image :  100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Model Number: BZZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month
Contact Now

100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift

Description
Product Name: Hydraulic Steering Unit Displacement: 100CC
Model No: BZZ Material: Ductile Iron, Steel, Bronze And Others
Warranty: 12-18 Months Quality: High Quality
Original: Made In China Appliion: Forklift
Highlight:

100CC hydraulic steering valve

,

Ductile iron hydraulic steering valve

,

Ductile iron orbital steering valve

BZZ1-125-B-D Hydraulic Steering Unit For Forklift Eaton Hydraulic Parts Hydraulic Power Unit Marine Hydraulic Steering





Product detail:



BZZ series hydraulic steering unit is consisted of one pair of rotary valve and one pair of
gerotor. Via the steering column, the steering unit links the steering wheel, when the steering
wheel rotates, the oil flows out of the supply pump of the steering system , through the rotary
valve and the gerotor , to the cylinder’s port left or right ( depend upon the rotation direction).
The gerotor supplies the oil to the steering cylinder in proportion to the angular rotation of the
steering wheel. If the oil flow out of the supply pump of the steering system is too small, the

steering unit can work as the manual pump



In open center systerm

Release the steering wheel, the rotary valve stays in the neutral position, the pump and the
tank is linked in open circuit. The constant pump is normally used in the open center steering
system when the valve stays in the neutral position.


In Close center systerm

Release the steering wheel, the rotary valve stays in the neutral position,the input port is
closed.the variable pump is normally used in the close center steering system when the
valve stays in the neutral position




Specifiions:





Wheel Loader Hydraulic Steering Units
BZZ1 Series
BZZ2 Series
BZZ3 Series
BZZ5 Series



100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 0






Product appliion:



Hydraulic steering control unit(SCU) is widely used both in the steering system of vehicles and the marine rudder. The operator
can obtain bigger steering control force with less steering force, and its function is more safety and reliable, its operation is more
smooth and flexible.





Products Features:



 Can help you reduce the machinery cost without mechanical linkage device, and can offer reliable and   light structure.
 Can operate more flexible with light steering torque
 Can offer emergent manual steering in of engine failure
 Can be steering at the continuous speed with less steering torque.
 Can offer various hydraulic system and different mounting choice
 Can link various steering pump and hydraulic steering system

100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 1



100CC Hydraulic Steering Valve Orbital Ductile Iron For Forklift 2



Tag:

BZZ Orbitrol Steering Unit,

1477343 Orbitrol Steering Unit,

0.5 Nm Orbitrol Steering Unit
