Product Details:
|
| Meterial: | Cast Iron | Name: | Hydraulic Motor |
|---|---|---|---|
| Model: | BMK10 | Appliion: | Port Equipment |
| Max.torque(N.m): | Cont.710N.m/int.1080N.m | Max Pressure Drop: | Cont.20Mpa/int.30Mpa |
| Max.speed(rpm): | Cont.610rpm/int.830rpm | Max Flow: | Cont.150l/min/int.170l/min |
| High Light: | Char lynn 10000 Hydraulic Orbit Motor,57.4 Cu Hydraulic Orbit Motor,57.4 Cu high torque low speed |
||

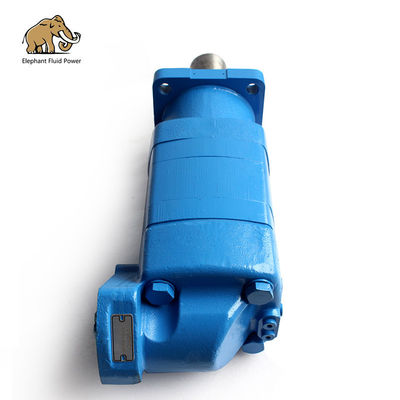

119-1031-003 Hydraulic Orbit Motor Low Speed Motor 57.4 Cu/In Charlynn 10000 Series Hydraulic Motor For Port Equipment
Product details:
Appliion:
Specifiions
| Main Specifiion | ||||||
| Type | BMK10 | BMK10 | BMK10 | BMK10 | ||
| 345 | 480 | 665 | 940 | |||
| Geometric displacement | 345 | 480 | 665 | 940 | ||
| (cm3 /rev.) | ||||||
| Main speed(rpm) | cont. | 501 | 354 | 254 | 179 | |
| int. | 784 | 552 | 396 | 279 | ||
| Max torque N.M | cont. | 1040 | 1475 | 2085 | 2700 | |
| int. | 1390 | 1965 | 2610 | 3440 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | |
| int. | 27.5 | 27.5 | 27.5 | 27.5 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | ||
| Model 119-1031 |
| 57.4 cu in displ |
| PSI 2750 cont |
| PSI 3500 int |
| PSI 3750 peak |
| Torque 23,910 in lbs cont |
| Torque 30,460 in lbs int |
| 179 RPM at 45 GPM |
| 279 RPM at 70 GPM |
| Rotation reversible |
| Mount SAE C 4 bolt |
| Shaft 2-1/4" dia x 4.49" w/1/2" keyway |
| Ports SAE 16 |
| drain SAE 6 |
| Size 16-1/4" x 6" x 6" |
| weight 110 lbs. |
Eaton similar type motors are available we belows:
At present, most popular Brands in Hydraulics are Danfoss, Char Lynn, M+S, HANJIU, each with its own merits, however the reason why more and more clients choose HANJIU is because it has obvious advantages over other brands in terms of delivery, service, quality and profit rate.
