Home ProductsHydraulic Orbit Motor

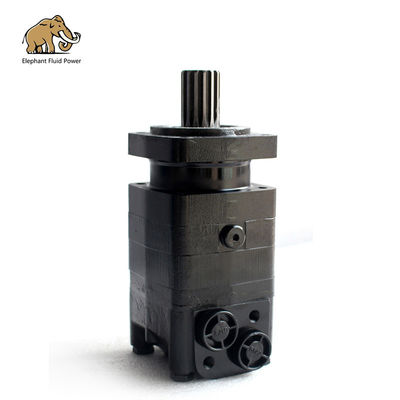

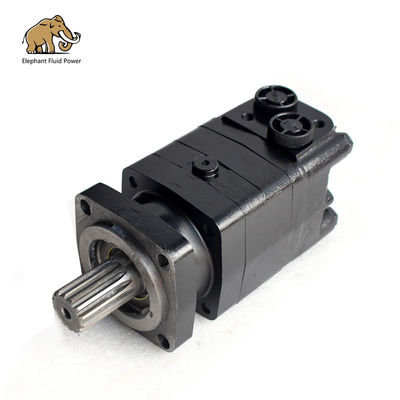

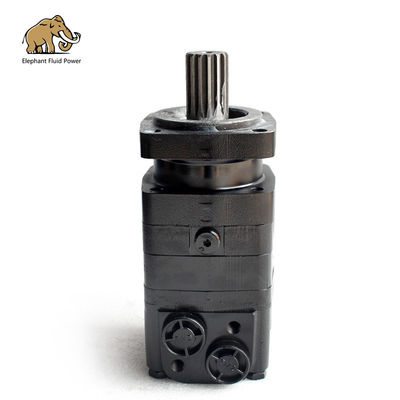

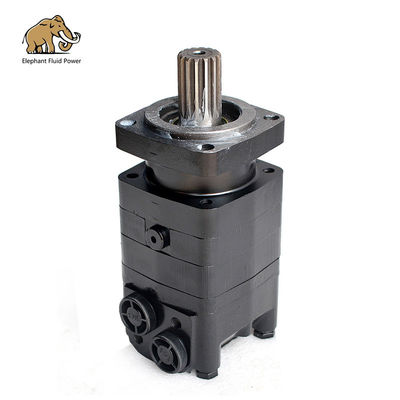

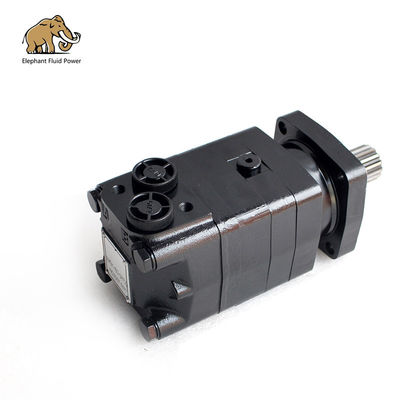

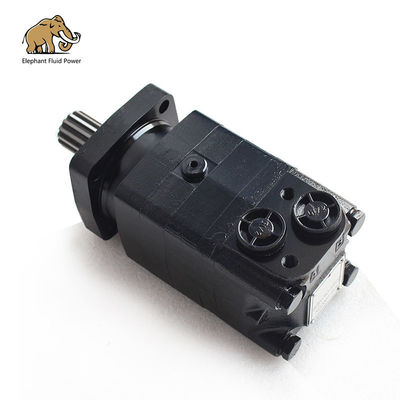

BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor

Customer Reviews
Very satisfied, good quality, fast delivery, saving a lot of costs for my pump

—— Martin

Wow, it’s perfect. Because I don’t know the model of the pump, I provided the size to them. They send the right accessories to me, and the installation is completely suitable. Thank you.

—— Filippo

I'm Online Chat Now

BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor

BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor
BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor

Large Image :  BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001
Model Number: BMSY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box,Wooden box
Delivery Time: 20-30 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30000 Set/month

BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor

Description
Meterial: Cast Iron Name: Hydraulic Motor
Model: BMSY Application: Hydraulic Equipment
Type: Torqmotor Gerotor Warranty: 12-18 Months
Original: Made In China Quality: High Quality
High Light:

BMSY Hydraulic Orbit Motor

,

800 rpm Hydraulic Orbit Motor

,

800 rpm orbit motor pumps

Hydraulic Motor Hydraulic Orbit Motor BMSY Danfoss Replacement

Product details:

The BMSY series motor adapts the advance Rolortorc™ gear set design with a disc distribution system flow and high pressure. These motors can be supplied with various option sfor multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. The low weight, advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system





Characteristic featutres:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and
reliable operation and high efficiency.

* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers
capacities of high pressure and high torque in the wide of applications.

* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume
efficiency and long life , provide smooth and reliable operation.

* The new series motor is suitable for vehicles with greater loads and pressure drop



Application:

Mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, marine machinery, petrochemical industry, port machinery, agricultural machinery, etc.



Specifications



Technical data for BMSY
Type

BMSY

BMSYS

80



BMSY

BMSYS

100

BMSY

BMSYS

125

BMSY

BMSYS

160

BMSY

BMSYS

200

BMR
BMRS
250

BMSY

BMSYS

315

BMSY

BMSYS

400

BMSY

BMSYS

475

Geometric displacement (cm3 /rev.) 80.6 100.8 125 154 194 243 311 394 475
Max. speed (rpm) cont. 800 748 600 470 345 300 240 185 155
int. 988 900 720 560 450 360 280 225 185
Max. torque (N·m) cont. 225 290 365 485 586 708 880 880 910
int. 305 390 480 590 705 860 1000 980 990
Max. output (kW) cont. 16 18 18 18.1 18.1 18 17 11 9
int. 20 22 23 25 24 23.8 20.2 12 11
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 21 21 20 20 16 14
int. 27.5 27.5 27.5 26 25 25 24 19 15
peak 29.5 29.5 29.5 28 27 27 26 21 17.5
Max. flow (L/min) cont. 25 75 75 75 75 75 75 75 75
int. 30 90 90 90 90 90 90 90 90
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 13.2 14.3






Competitive Advantage



High efficiency

High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids
Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)

At present, most popular Brands in Hydraulics are Danfoss, Char Lynn, M+S, HANJIU, each with its own merits, however the reason why more and more clients choose HANJIU is because it has obvious advantages over other brands in terms of delivery, service, quality and profit rate.

BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor 0

BMSY Hydraulic Orbit Motor Pumps 800 Rpm Torqmotor Gerotor 1
