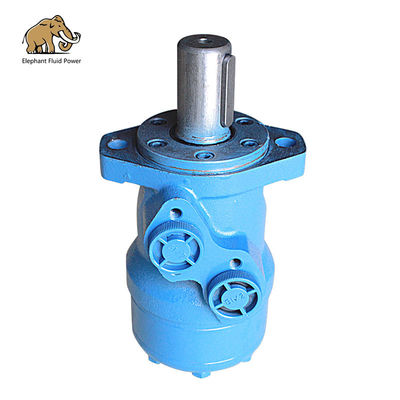

OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron

OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron
OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron

Large Image :  OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron

Product Details:
Place of Origin: China
Brand Name: Danfoss aftermarket
Model Number: BMR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 20-30 Days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month

OMR Low Speed High Torque Motors Hydraulic Pump 7kg Ductile Iron

Description
Material: Cast,Ductile Iron, Steel, Bronze And Others Type: Orbit Motor
Displacement: 160ml/r Oil Port: G 1/2
Drain: G 1/4 Direction: Left And Right
Warranty: 12-18 Months Other Name: Hydraulic Gertor Motor
High Light:

OMR low speed high torque motors

,

7kg low speed high torque motors

,

7kg hydraulic pump motor

Danfoss OMR 160 Hydraulic Motor After Market, BMR 160 Orbit Hydraulic Pump Motor





Product description:





1, BMR Hydraulic motor is a replacement OMR hydrdaulic motor

2, BMR hydraulic motor is also a replacement to , Eaton Char lynn, M+S, Parker

3, same installation, same measurement, same performance, 100% replace

4, fast delivery, much more lower price


Characteristic features:


1. The main shaft is equipped with deep groove ball bearings, which can bear certain axial and radial forces.

2. Adopting axial oil distribution structure, small volume and light weight.

3. Built-in 2 check valves, no external drain pipe is needed.

4. Cycloidal wheels with rollers are used. The friction is small. High mechanical efficiency.



Specifiion:


Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5



Technical data for BMR with 31.75 and 32 shaft:

Type BMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.







Apliion:



The bright body of this series of motors is made of ductile cast iron with sufficient strength. It is suitable for occasions with small loads and gaps. It is widely used in agriculture, forestry, plastics, machine tools, and mining machinery. Such as the adjustment of the injection molding machine. Sweeper, sawmill, work platform, etc.
