Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: ISO9001,CE
Model Number: BMM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 20-30 Days
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 30000 Set/month

20Cc Hydraulic Pumps And Motors Low Torque High Speed Fruit Harvester Parts

Description
Material: Cast,Ductile Iron, Steel, Bronze And Others Type: Orbit Motor
Application: Hydraulic System Fit: Fruit Harvester Plant
Displacement: 8cc - 50cc Direction: Left And Right
Warranty: 12-18 Months Another Name: Hydraulic Orbital Motor
High Light:

20Cc hydraulic pumps and motors

,

Ductile iron hydraulic pumps and motors

,

20Cc low torque high speed motor

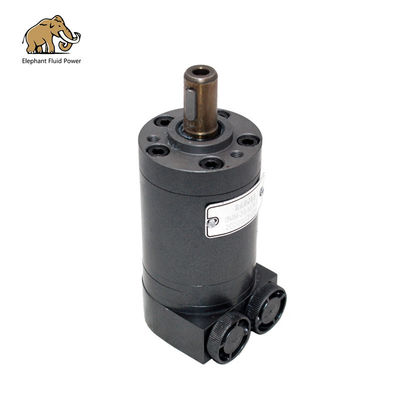

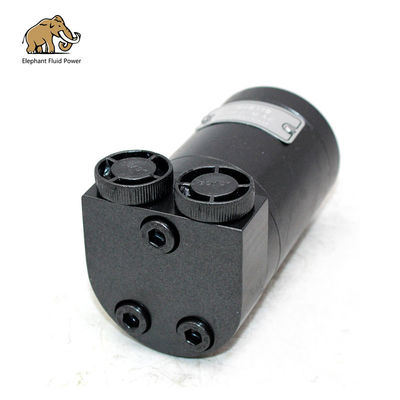

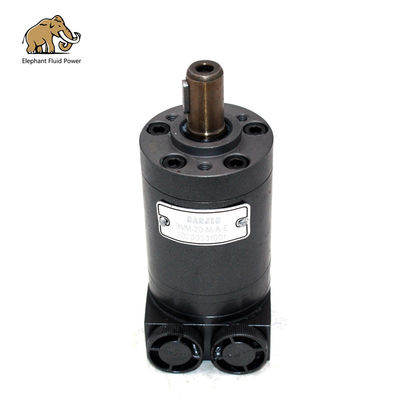

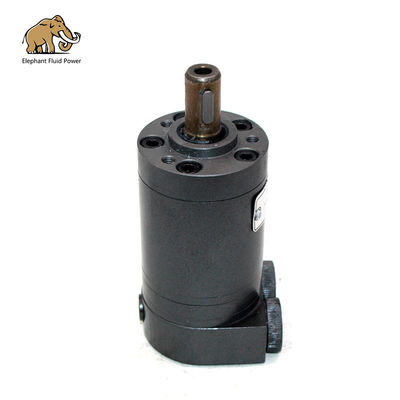

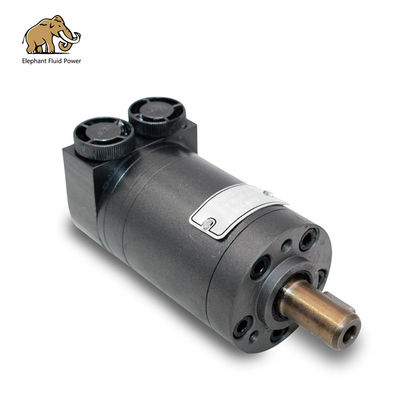

BMM Orbit Hydraulic Motor 20 Cc / R Cylindrical 16mm For Fruit Harvester Parts BMM-20-M-A-E





Product description:





This BMM-20-M-A-E can 100% replace with Danfoss OMM,and with top quality.



BMM series motor are small volume, economical type, which is designed with shaft
distribution flow, which adapt the Gerotor gear set design and provide compact volume,
high power and low weigth.

Characteristic features:

* Advanced manufacturing devices for the Gerotor gear set, which provide
small volume, high efficiency and long life.

* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

* Advanced construction design, high power and low weight.


Specification:

Type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
Displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)
rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)
rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)
rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4



Type   Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5









Application:



This series of motor housings are made of ductile cast iron with sufficient strength, suitable for occasions with small loads and gaps, and are widely used in agriculture, forestry, plastics, machine tools, mining machinery, etc
