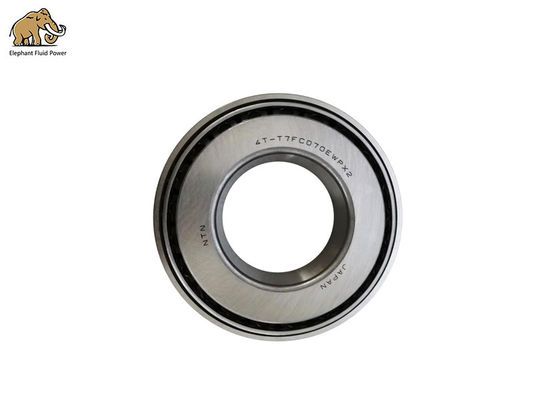

70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070

Customer Reviews
Very satisfied, good quality, fast delivery, saving a lot of costs for my pump

—— Martin

Wow, it’s perfect. Because I don’t know the model of the pump, I provided the size to them. They send the right accessories to me, and the installation is completely suitable. Thank you.

—— Filippo

I'm Online Chat Now

70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070

70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070
70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070 70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070

Large Image :  70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power
Certification: ISO9001
Model Number: T7FC070
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-7 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 Set/month

70mm Hydraulic Pump Bearings Cylinder Piston Pump Repair T7FC070

Description
Meterial: Cast,Ductile Iron, Steel, Bronze And Others Name: Bearing
Type: T7FC070 Application: Piston Pump Repair
Inner Diam: 70 Mm Outer Diam: 140 Mm
Width: 39mm Origin: China
High Light:

T7FC070 Hydraulic Pump Bearings

,

70mm Hydraulic Pump Bearings

,

T7FC070 hydraulic cylinder bearing

 Piston Pump Spare Parts Big Bearing T7FC070 For A2FE160 180



Product details:

Elephant Fluid Power provides hydraulic piston pump bearings, original bearings, the price is reasonable, and will be shipped within 5-7days.

Application:

1. Pump of Construction machine such as Excavator,Loader,Bulldozer,Concrete pump,Truck Mixer ..

2. Pump of Industry machine

3. Pump of Ships



Specifications





Attribute Specifications
Material Cast/Ductile iron, steel, bronze and others
Types T7FC070
Function Bearing
Processing technic Cutting, lathe, machining center, heat treatment, grind, honing, burring and so on
Trademark Elephant Fluid Power, Neutral label, or according to client’s requirement





Competitive Advantage





1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries



2. 100% replace with Original



3. Fast delivery time



4. Top quality with good price



5. Professional technicians and After-sales service

6. Complete models Available

The important part of the plunger pump is the bearing. If there is play in the bearing, the normal clearance of the three pairs of friction pairs inside the hydraulic pump cannot be guaranteed. At the same time, the thickness of the hydrostatic bearing oil film of each friction pair will be destroyed, reducing the use of the plunger pump bearing. life. According to the information provided by the hydraulic pump manufacturer, the average service life of the bearing is 10000h, and it is necessary to replace the new port if this value is exceeded. Bearings removed can not be detected without professional testing equipment, and can only be visually inspected. If scratches or discoloration are found on the roller surface, they must be replaced.

When replacing bearings, attention should be paid to the English letters and models of the original bearings. Most of the plunger pump bearings use large load capacity bearings. Purchase the original manufacturer and original specifications. If you replace another brand, you should consult a person who has experience with the bearing to look up the table and exchange, the purpose is to maintain the accuracy level and load capacity of the bearing.

Axial plunger pumps can also use frequency converters to save electrical energy. In the actual production process, axial plunger pumps are usually operated under pressure or flow to adjust the operating state. When the actual pressure is greater than the required pressure, it is adjusted through the relief valve to keep its operating pressure stable and let the relief valve release the excess. The motor has been running at full speed repeatedly, and the power consumption remains unchanged.

The valve plate has two forms: plane flow distribution and spherical flow distribution. The friction pair of spherical flow distribution is repaired by grinding when the scratches on the flow distribution surface of the cylinder are relatively shallow: when the groove on the flow distribution surface of the cylinder is deep, the groove should be filled with "surface engineering technology" before grinding Do not blindly grind to prevent the copper layer from thinning or oil leakage from the steel base.

When using overflow to adjust the pressure and flow, some of the excess overflows back to the original system, resulting in the useless power of the plunger pump and low operating efficiency. If a Chuangjie energy-saving inverter is used, the overflow valve can be set Closed, through the energy-saving inverter itself automatically adjusts the operating pressure to maintain the stability of the operating pressure, and automatically tracks the pressure of the device. Realize automatic control, thereby saving energy consumption. The biggest advantage of this adjustment method is that it can reduce the operating energy consumption of the axial piston pump, and the power saving effect can reach more than 30%.

Elephant Fluid Power is a high-quality development group with strong technical force, providing high-quality products, complete solutions and first-class technical service companies to users. The company adheres to the tenet of establishing business with integrity, keeping business with quality, and making progress with progress. It continues to climb new peaks with a firmer pace and contributes to the national automation industry. Welcome new and old customers to buy their favorite products with confidence. We will serve you wholeheartedly!
