Product Details:
|
| Appliion: | Excavator Maintain REpair | Structure: | Axial Piston Pump |
|---|---|---|---|
| Warranty: | 12 Months | Power: | Hydraulic |
| Lead Time: | 5-7 Days | Service: | Offer Technical Support |
| High Light: | OEM Hydraulic Axial Piston Pump,Rexroth A11VLO190 Hydraulic Axial Piston Pump |
||

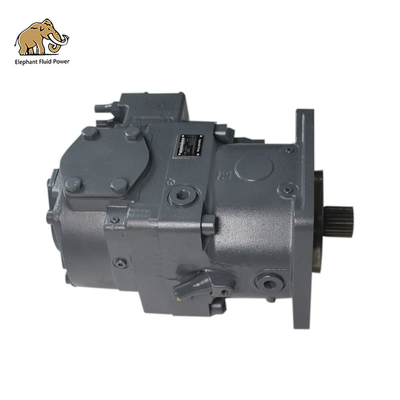

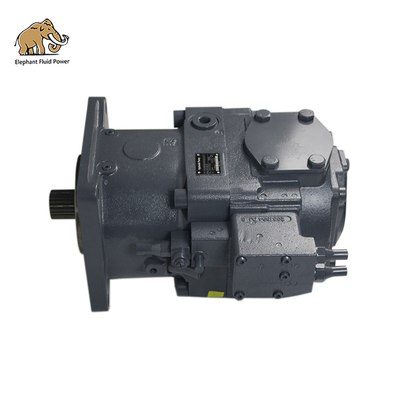

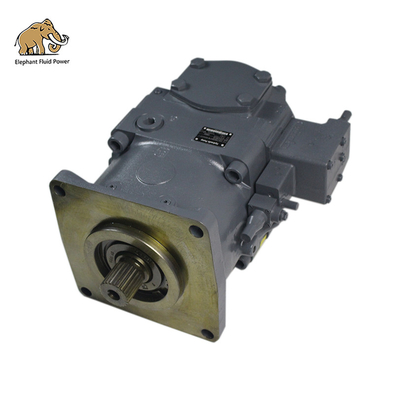

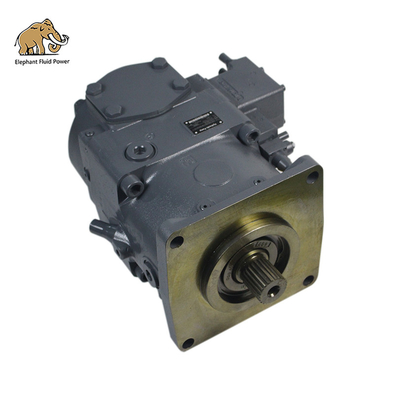

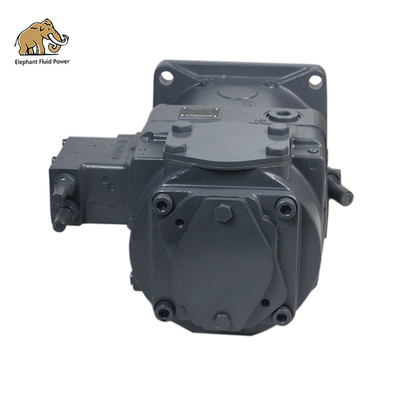

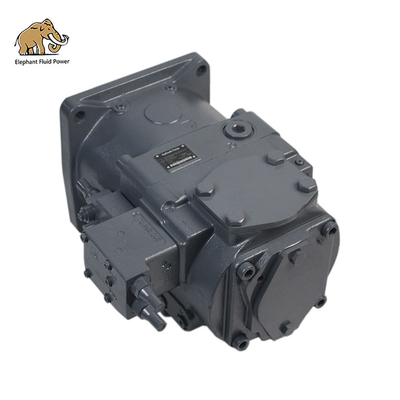

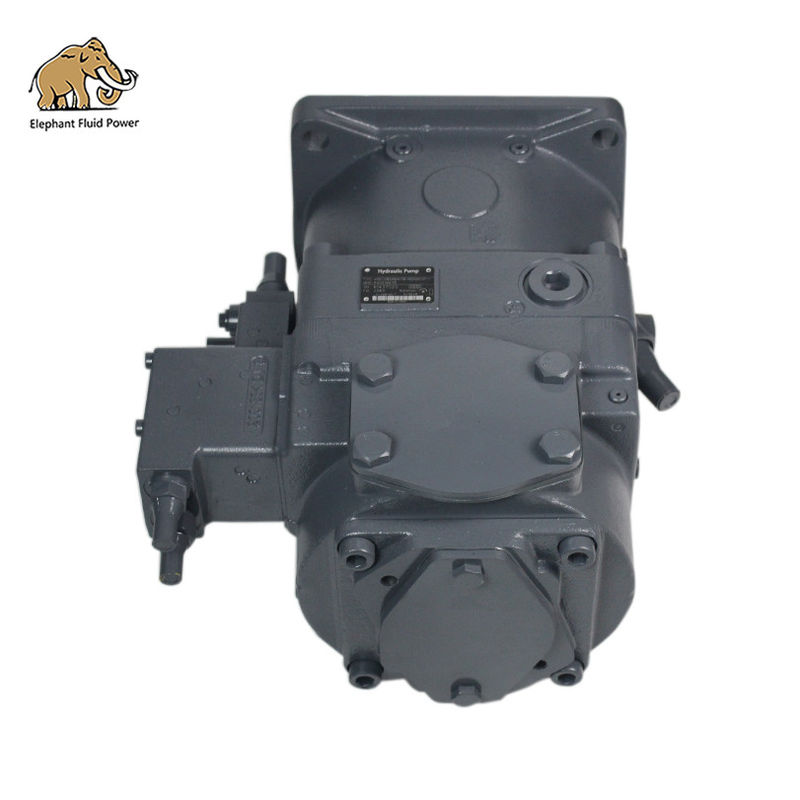

Direct Factory OEM Quality Rexroth A11VLO190 Hydraulic Pumps Concrete Pump Maintain Repair Parts
Elephant Fluid Power can make Direct Factory OEM Quality Rexroth A11VLO190 Hydraulic Pumps Concrete Pump Maintain Repair Parts,good quality,good price,fast lead time,one year warranty since sales,we will be your first choice for hydraulic pumps.
Technical data:
The A11VLO variable axial piston pump of swash plate design for hydrostatic drives in open circuit hydraulic system
- Designed primarily for use in mobile appliions.
- The pump operates under self-priming conditions, with tank pressurization, or with an optional built-in charge pump (impeller).
- A comprehensive range of control options is available matching any appliion requirement.
- Power control option is externally adjustable, even when the pump is running.
- The through drive is suitable for adding gear pumps and axial piston pumps up to the same size, i.e. 100% through drive.
- The output flow is proportional to the drive speed and infinitely variable between qV max and qV min = 0.
- Control devices: LR, LR.C, LR3, LG1, LG2, DR, DRS, DRL, DH1, DH2, DH.D, DH.G, EP1, EP2, DE.D, EP.G, etc.
Table of values (theoretical values, without efficiency and tolerances; values rounded)
| Size | Desc | A11VLO40 | A11VLO60 | A11VLO75 | A11VLO95 | A11VLO130 | A11VLO145 | A11VLO190 | A11VLO260 |
| Displacement Vg max Vg min |
In3/rev. | 2.56 | 3.57 | 4.52 | 5.71 | 7.93 | 8.84 | 11.78 | 15.87 |
| cm3 | 42 | 58.5 | 74 | 93.5 | 130 | 145 | 193 | 260 | |
| cm3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Speed | rpm | 3000 | 2700 | 2550 | 2350 | 2100 | 2200 | 2100 | 1800 |
| rpm | 3500 | 3250 | 3000 | 2780 | 2500 | 2500 | 2100 | 2300 | |
| Flow | gpm | 33.3 | 41.7 | 49.9 | 58.1 | 72.1 | 84.3 | 107 | 123.6 |
| l/min | 126 | 158 | 189 | 220 | 273 | 319 | 405 | 468 | |
| Power at | hp | 99.2 | 123.4 | 147.5 | 171.7 | 213.2 | 249.4 | 316.5 | 366.1 |
| kW | 74 | 92 | 110 | 128 | 159 | 186 | 236 | 273 | |
| Torque at | lb-ft | 172.6 | 240.4 | 303.9 | 384.3 | 534 | 596 | 792.9 | 1068 |
| Nm | 234 | 326 | 412 | 521 | 724 | 808 | 1075 | 1448 | |
| Rotary stiffness | lb-ft/rad | 64512 | 79574 | 105548 | 14883 | 230417 | 230417 | 282702 | 482244 |
| Nm/rad | 87467 | 107888 | 143104 | 196435 | 312403 | 312403 | 383292 | 653835 | |
| lb-ft/rad | 43035 | 63658 | 75173 | 128117 | 174700 | 174700 | 191599 | 259628 | |
| Nm/rad | 58347 | 86308 | 101921 | 173704 | 236861 | 236861 | 259773 | 352009 | |
| lb-ft/rad | 54931 | 75556 | 92640 | - | - | - | 222691 | 418282 | |
| Nm/rad | 74476 | 102440 | 125603 | - | - | - | 301928 | 567115 | |
| Moment of inertia for rotary group |
lbs-ft2 | 0.1139 | 0.1946 | 0.2729 | 0.4105 | 0.7546 | 0.8092 | 1.3052 | 2.0835 |
| kgm2 | 0.0048 | 0.0082 | 0.0115 | 0.0173 | 0.0318 | 0.0341 | 0.055 | 0.0878 | |
| Angular acceleration | rad/s2 | 22000 | 17500 | 15000 | 13000 | 10500 | 9000 | 6800 | 4800 |
| Filling capacity | gal | 0.29 | 0.36 | 0.49 | 0.55 | 0.77 | 0.77 | 1 | 1.22 |
| L | 1.1 | 1.35 | 1.85 | 2.1 | 2.9 | 2.9 | 3.8 | 4.6 | |
| Mass | lbs | 71 | 88 | 99 | 117 | 145 | 168 | 209 | 276 |
| kg | 32 | 40 | 45 | 53 | 66 | 76 | 95 | 125 |
We have been exported to more than 80 countries and aereas,is your first choice for hydraulic pump replacement,we win a good reputation based on our quality and services.
Our main models:
| Rexroth | A2F12/23/28/55/80/107/160/200/225/250/335/500 |
| A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500 | |
| A7V28/55/80/107/160/225/250/355/500/1000 | |
| A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500 | |
| A4VSO45/71/125/180/250/500/1000 | |
| A4V40/56/71 | |
| A4VG28/40/45/50/56/71/90/125/140/180/250 | |
| A4VTG71/90 | |
| A10VSO10/16/18/28/45/63/71/85/100/140 | |
| A10VG18/28/45/63 | |
| A11VO60/75/95/130/145/160/190/250/260 | |
| Kawasaki | K3SP36C |
| K3V63DT/112DT/140DT/180DT/280DT | |
| K3VL28/45/60/80/112/140/200 | |
| K3VG63/112/180/280 | |
| K7V63/100 | |
| K7VG180/265 | |
| K5V80/140/160/200 | |
| NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270 | |
| NX15 | |
| NVK45 | |
| KVC925/930/932 | |
| M2X55/63/96/120/128/146/150/170/210 | |
| M5X130/150/173/180/500 | |
| MX50/80/150/173/200/250/450/500/530/750 | |
| KAYABA | MAG150/170 |
| KYB87 | |
| MSG18P/27P/44P/50P | |
| MSF series | |
| Komatsu | HPV 35/55/90/160 (PC60/120/200/220/300-3/5) PC400/PC650 |
| Libherr | LPVD 35/45/64/75/90/100/125/140/165/225/250 |
| FMV075/100 | |
| LMF(V)45/64/75/90/100/125/140 | |
| Toshiba | PVB80/92 |
| PVC80/90 | |
| SG 015/02/025/04/08/12/15/17/20/25 | |
| Linde | HPV55/75/105/135/165/210/280 |
| HPR75/90/100/130/160 | |
| MPR28/45/63/71 | |
| HMR75/105/135/165 | |
| HMF28/35/50/ | |
| BPV35/50/70/100/200 | |
| B2PV35/50/75/105/140/186 | |
| BMF35/55/75/105/140/186/260 | |
| BMV35/55/75/105/135 | |
| BPR55/75/105/140/186/260 | |
| Sauer | PV90R(L)(M)030/42/55/75/100/130/180/250 |
| PV42-28/41/51 | |
| SPV15/18 | |
| KRR(LRR)025C/030D/038C/045D | |
| MR(MS)070/089/227/334 | |
| Eaton | 3321/3331 |
| 4621/4631 | |
| 5421/5431 | |
| 78461/78462 | |
| Vicker | PVE12/21/45 |
| TA19/MFE19 | |
| PVM 018/020/045/050/057/063/074/081/098/106/131/141 | |
| PVH 57/74/98/131/141 | |
| PVB 5/6/10/15/20/29/45/90 | |
| Yuken | A10/16/22/37/40/45/56/70/90/100/125/145/220 |
| A3H16/37/56/71/100/145/180 | |
| Parker | PVP16/23/33/41/48/60/76/100/140 |
| PV 016/020/023/028/032/040/046/063/080/092/140/180/270 | |
| P2/3-060/075/105/145 | |
| PAVC 33/38/65/100 | |
| Hitachi | HPV050/102/105/118/135 |
| HMGC16/32/48 | |
| HMGF35/36/38/57 | |
| Tokiwa | MKV23/33 |
| Uchida | A10VD17/23/28/40/43/71 |
| AP2D12/14/18/21/25/28/36/38/42 | |
| A8VO55/59/80/86/107/115/172 | |
| Nachi | YC35-6 |
| PVD-2B-32/34/36/38/40/42/45/50 | |
| PVD-3B-54/56/60/66 | |
| PZ-6B-180/220 | |
| PVK-2B-50/505 | |
| PZ-4B-100 | |
| PVD-00B-14/16P | |
| PVD-1B-23/28/32/34 | |
| Hawe | V30D95/140/250 |
| V60 | |
| Italy Sam | HCV50/70/90/100/125 |
| H1V55/75/108/160/226 | |
| H2V55/75/108/160/226 | |
| H1C55/75/108/160/226 |
FAQ
Payment term:
1. T/T: 30% deposit by T/T, 70% balance by T/T before shipment
2. L/C at sight
Trade term: EXW or FOB Tianjin
Packing details:
Eternal Brand, Neutral or Customer's requires packing
Neutral carton or same as the Customer's requires, export standard carton
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.
Delivery time:
We have huge quantity of inventory for complete pumps, motor and some pare pats,
so the leading time is within 3days if have in stock.
If haven't, within 5days if the quantity is less than 50pcs.
It depends on the quantity ordered.
Min. Order:
If the model is in common or the production are in our stock warehouse,
No MOQ for stocking production.Larger quantity, price will be more favorable.
Deliever Way:
By courier, like the DHL, UPS, Fedex,etc. It's door to door or barn to the door,
usually 5-7 days to arrive.
By air to air port, usually 3-5 days to arrive
By sea to sea port, usually 20-30 days to arrive.
If your deliever time is very urgent, we suggest that you choose by courier or air.
If not, it's very cheap to by sea.
