Product Details:
|
| Name: | Hydraulic Pump Spare Parts | Type: | Orbit Motor |
|---|---|---|---|
| Appliion: | OMH Motors | Quality: | High Quality |
| Advantage: | Fast Delivery,Advantage Price | ||
| High Light: | 10000 series char lynn hyd motor,119-1042-003 char lynn hyd motor,119 series char lynn hyd motor |
||

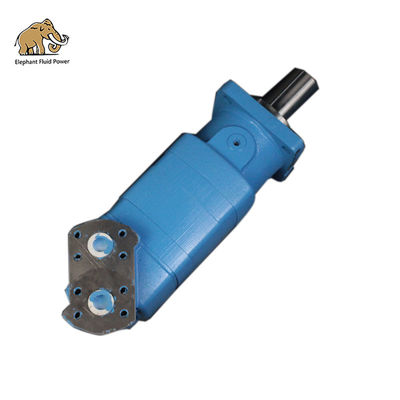

Char-Lynn 10,000 Series Hyd Motor 119-1042-003 for Jaw Crusher-665cm³/r, 4-Bolt Flange, Straight Shaft, 2-1/4in
The Char-Lynn 10000 Series is a well-known line of hydraulic motors manufactured by Eaton's Char-Lynn division. These motors are widely used in various appliions that require reliable and efficient power delivery. The 10000 Series motors are known for their robust design, high torque capacity, and versatility.
Here are some key features and characteristics of the Char-Lynn 10000 Series hydraulic motors:
Disc Valve Design: The motors in the 10000 Series utilize a disc valve design, which allows for smooth and precise operation, even at low speeds. This design also contributes to the motors' high efficiency.
High Torque Capacity: The 10000 Series motors are capable of delivering high torque outputs, making them suitable for heavy-duty appliions that require substantial power.
Wide Range of Sizes: The 10000 Series includes a variety of motor sizes, offering different displacement options to accommodate various system requirements.
Shaft Options: These motors come with different shaft configurations, such as straight keyed, splined, and tapered, providing flexibility for installation and connection with other components.
Mounting Flexibility: The Char-Lynn 10000 Series motors are designed to be easily mounted and integrated into different types of equipment and machinery.
It's important to note that specific specifiions, performance characteristics, and availability of individual models within the Char-Lynn 10000 Series may vary. For detailed information on a particular motor within this series, I recommend reaching out to Eaton's Char-Lynn division or their authorized distributors. They will be able to provide you with the most accurate and up-to-date information about the specific model you are interested in.
About Elephant FLuid Power, we keep in stock of Most 10000 Seris Hydraulic Motor.
WHich is the best solution for the original replacment.
| Series | 10000 - Standard type |
| Displacement | 665 cm³/r |
| Mounting Type | 4-Bolt Flange - 5 in Pilot |
| Shaft Type | Straight |
| Output Shaft Size | 2-1/4 in Straight - Straight Key |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size | 1 1/4 inch Split Flange |
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar | bar | 205 | 205 | 205 | 190 |
Eaton similar type motors are available we belows:
