Product Details:
|
| Meterial: | Cast,Ductile Iron, Steel, Bronze And Others | Name: | Hydraulic Pump Spare Parts |
|---|---|---|---|
| Type: | MS(E)02,MS(E)05,MS(E)08,MS(E)11,MS(E)18,MS25,MS35,MS50,MS83,MS125... | Appliion: | Piston Pump Repair |
| Quality: | High Quality | Advantage: | Fast Delivery,Advantage Price |
| High Light: | OEM Radial Hydraulic Motors,Multipurpose Radial Hydraulic Motors,Ms11 poclain radial piston motor |
||

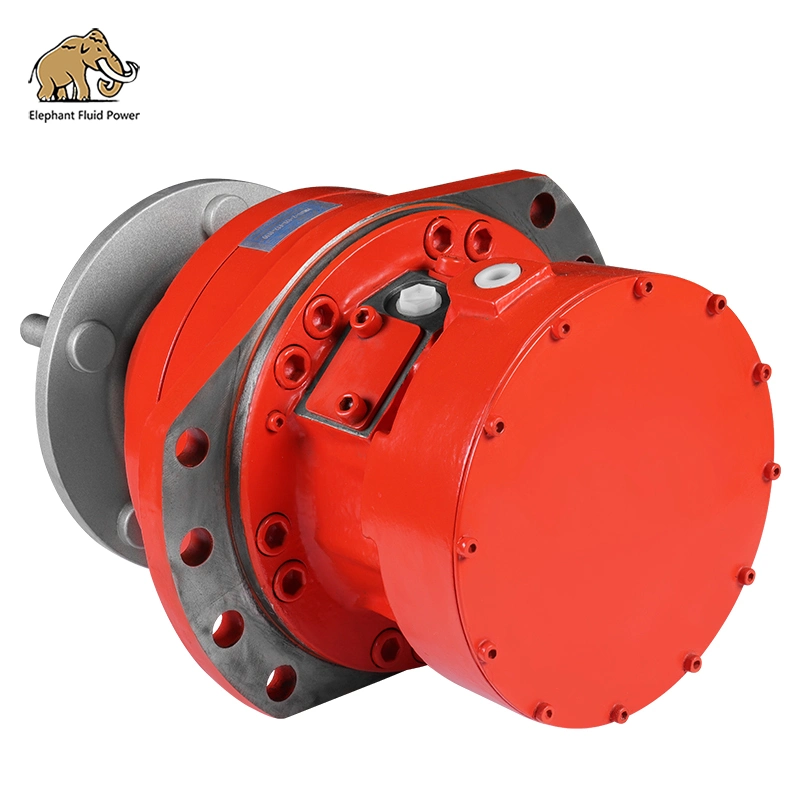

1). Radial piston type;
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Code | HMS11 | HMSE11 | |||||||||||
| Displacement Group | 7 | 8 | 9 | 0 | 1 | 2 | 9 | 0 | 1 | 2 | |||
| Displacement (ml/r) | 730 | 837 | 943 | 1048 | 1147 | 1259 | 1263 | 1404 | 1536 | 1687 | |||
| Theoretical Torque at 10Mpa (N.m) | 1161 | 1331 | 1499 | 1666 | 1824 | 2002 | 2008 | 2232 | 2442 | 2682 | |||
| Rated Speed (r/min) | 125 | 125 | 125 | 100 | 100 | 80 | 80 | 80 | 63 | 63 | |||
| Rated Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |||
| Rated Torque (N.m) | 2400 | 2750 | 3100 | 3400 | 3750 | 4100 | 4150 | 4600 | 5050 | 5500 | |||
| Max. Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | |||
| Max. Torque (N.m) | 2950 | 3350 | 3800 | 4200 | 4650 | 5100 | 5100 | 5650 | 6200 | 6800 | |||
| Speed Range (r/min) | 0-200 | 0-195 | 0-190 | 0-185 | 0-180 | 0-170 | 0-170 | 0-155 | 0-140 | 0-130 | |||
| Max. Power (kw) | Standard displacement is 50KW,variable displacement priority rotation 33KW,no priority is 25KW | ||||||||||||
Elephant Fluid Power is Chinese Leaser Manufacturer for the Poclain & Rexroth Hydraulic Motor, Spare parts.
Brand New.
OEM Quality
Perforamance same with original.
Full Spare parts in Stock for Repair, Maitaince
12 Months warranty under normal use and maintenance
Your Best Choice for the Original Replacment.
