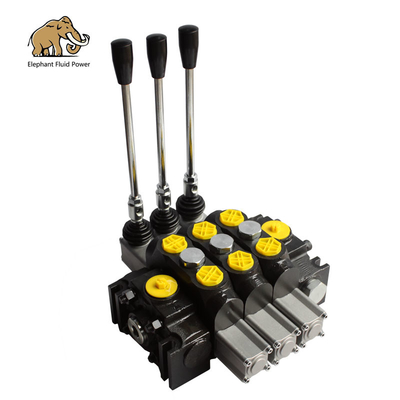

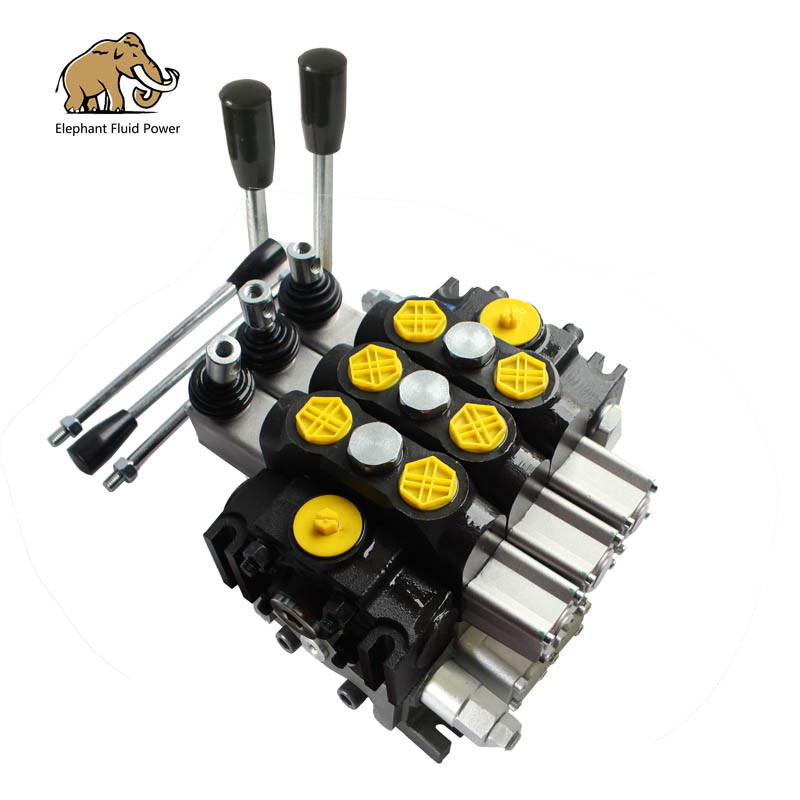

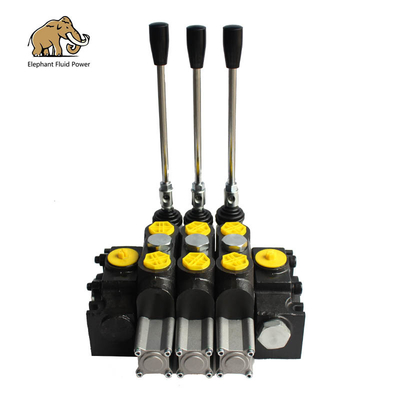

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts
Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts

Large Image :  Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts

Product Details:
Place of Origin: China
Brand Name: Elephant fluid power
Model Number: DCV200-3
Certifiion: ISO9001,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000 Sets per month

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts

Description
Rated Flow: 100L/min Max Flow: 120L/min
Max Pressure: 31.5MPa Pilot Control Pressure: 10-13bar
Pneumatic Control Pressure: 5-10bar Spool Strike: ±7 Mm
High Light:

dcv 200 sectional valves

,

dcv200 sectional control valve

,

3 spool sectional control valve

Hydraulic controls, 3 spool hydraulic control valve, sectional valves DCV200



Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.


PARAMETERS



Nom. Pressure
(MPa)
Max.Pressure
(MPa)

Nom. Flow rate (L/min)

Back Pressure(MPa)
hydraulic oil
Tem.rang
(ºC)
Visc.rang
(mm2/S)
filtrating accuracy
(μm)
35 31.5 200 ≤1 -40~+80 10~400 ≤10



DCV valve Flow Nom. Pressure Spool
DCV 20 20L/Min 100 ~315 BAR 1-12 sections
DCV 40 40L/Min 100 ~315 BAR 1-12 sections
DCV 45 45L/Min 100 ~315 BAR 1-12 sections
DCV 60 60L/Min 100 ~315 BAR 1-12 sections
DCV 100 100L/Min 100 ~315 BAR 1-12 sections
DCV 140 140L/Min 100 ~315 BAR 1-12 sections
DCV 200 200L/Min 100 ~315 BAR 1-12 sections











DCV directional control valve have the features of below

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional



Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts 0

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts 1

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts 2



Elephant Fluid Power has been engaged in the hydraulic business since the beginning of the 20th century. It has a history of nearly 20 years and has always been upholding the principles of "quality first", "credit first" and "zero complaint", and has become a new leader in the hydraulics industry. Elephant Fluid Power insists on good products, good service, and has been providing customers with better, more comprehensive hydraulic products, and constantly.







If you are interested in our products, please contact me, I will provide the best price support and quality service.
I believe we will establish a good and long-term cooperation.

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts 3

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts 4

Genuine Dcv200 Sectional Control Valve Agricultural Machine Repair Parts 5
