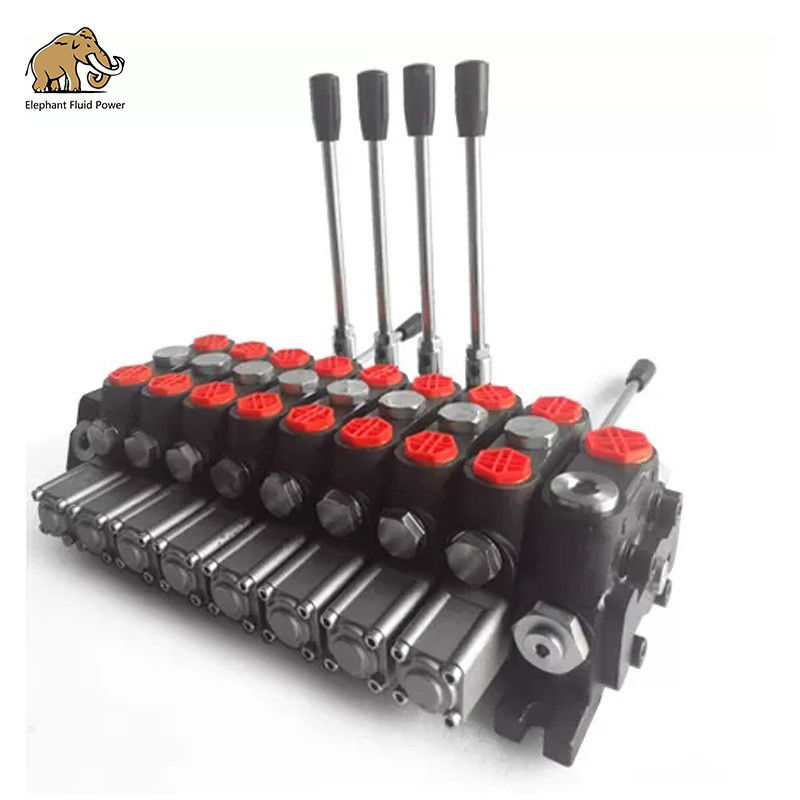

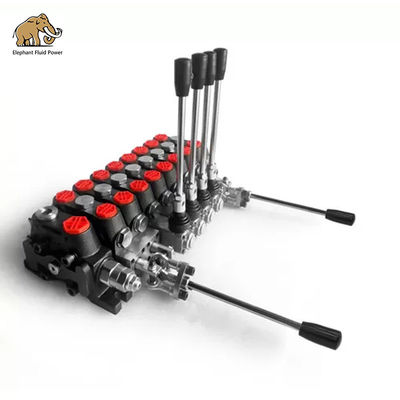

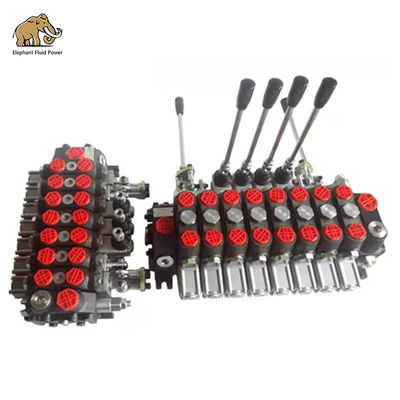

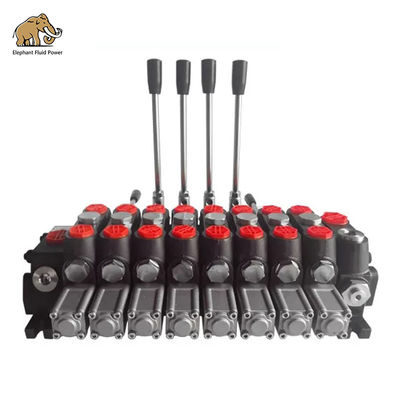

Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm

Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm
Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm

Large Image :  Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm

Product Details:
Place of Origin: China
Brand Name: Elephant Fluid Power Co.,Ltd
Model Number: Dcv
Certifiion: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 sets per month

Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm

Description
Model: Dcv100 Spool: 1, 2, 3, 4, 5, 6, 7 ...
Flow: 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... Pressure: 31.5Mpa
High Light: Hydraulic Control Valve, Hydraulic Monoblock Valves Warranty: 12 Months
Appliions: Cranes Telehandlers Retro-excavators And Compactors. Function: Flow Control
Installation: Threaded Cartridge Type: Directly Operated Type
High Light:

joystick loader control hydraulic directional valve

,

26gpm hydraulic directional valve

,

joystick loader dcv control valve



Joystick Loader Control Valve Dcv 26gpm





This distributor has technical characteristics, flow and pressure such that it suits a variety of appliions, but especially for cranes, telehandlers, the retro-excavators and compactors.


DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.


Elephant Fluid Power have more distributor hydraulics (Directional control valve) for you, we produce, manufacture, export, provide you with high quality, low price products, our products are very competitive, no matter what control method (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.) you need, any flow (40 liters - 140 liters available), any size (1 spool to 12 spool available), Please contact us for the best offer.





Norminal Flow
100L/min
Max Flow
100L/min
Max Pressure
315mpa
Control Type
manual, pneumatic, hydraulic, electro-hydraulic
Allowed back pressure
≤1 mpa
Oil port size
customizable





Characteristics:
Maximum operating pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow: 26 GPM (40 l / min)
Work Ports A & B: # 8 SAE O-Ring Thread (3/4 "-16)
Inlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
Outlet Port: # 10 SAE O-Ring (7/8 "-14) Thread
2 - 5/16 "mounting holes
Single floating reel option available to raise and lower the bucket
Made in China
Brand:
Elephant Fluid Power



Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm 0Joystick Loader Control Hydraulic Directional Valve Dcv 26gpm 1






Product:

★Auxiliary valve: over-load valve, anti-cavitation valve,combined valve, etc. (not for DCV40-45)
★Control type: manual, joystick, cable, pneumatic, solenoid,electro-pneumatic, electro-hydraulic, etc.
★Structure: monoblock, sectional
★Carry-over port as hydraulic source for other parts.







DCV directional control valve have the features of below:

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional
