Product Details:
|
| Material: | Cast Iron,Alloy | Name: | Cylinder Block,Valve Plate,Retainer Plate |
|---|---|---|---|
| Appliion: | Piston Pump Repair | Suit For: | Linde Pump |
| Model: | HPR130 | Presure: | High Pressure |
| Another Name: | Pump Repair Kit | Original: | Made In China |
| High Light: | HPR130 Hydraulic Piston Pump Parts,ISO9001 Linde Hydraulic Piston Pump Parts,HPR130 pump repair kits |
||

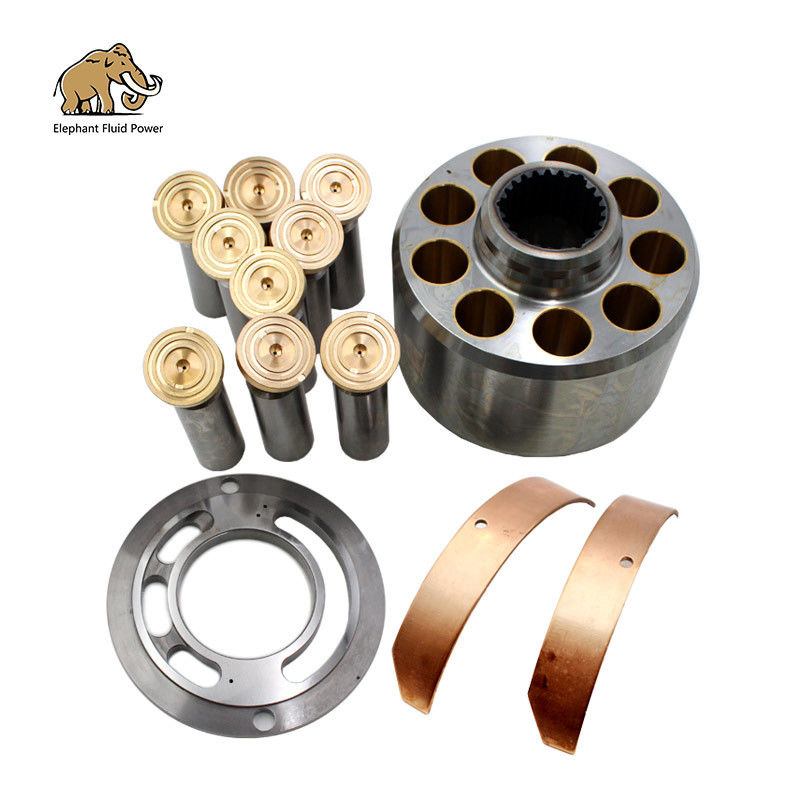

Provides Rebuild New Linde HPR130 Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Linde, Good Quality Piston Pump Parts And More Cost Effective Price.
We regularly stock parts for the HPR, HPV Series of Linde pumps .
1 HPR130 DRIVE SHAFT 1PC

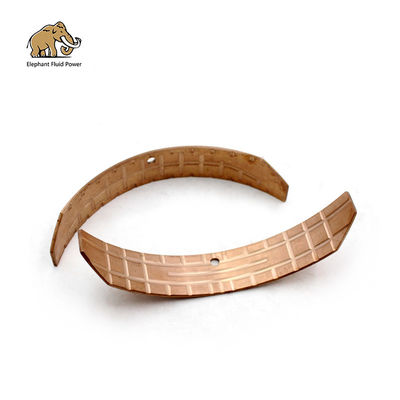

2 HPR130 SADDLE BEARING 2PC
3 HPR130 SUPPORT 1PC

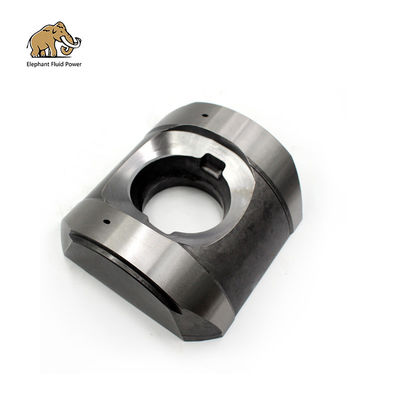

4 HPR130 SWASH PLATE 1 PC

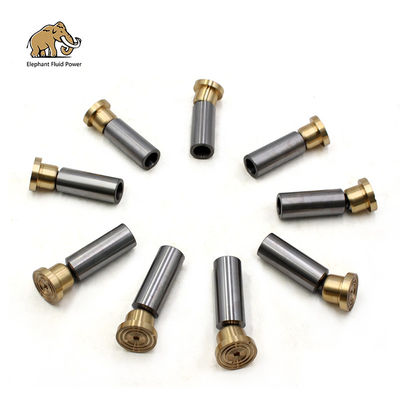

5 HPR130 PISTON SHOE 9 PC

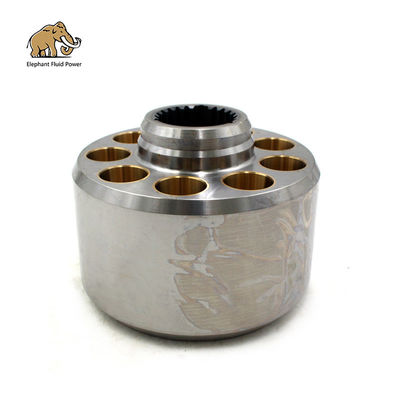

6 HPR130 CYLINDER BLOCK 1 PC

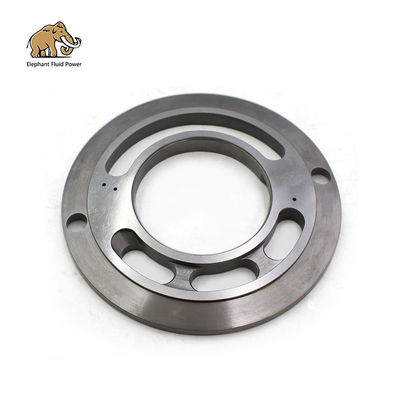

7 HPR130 VALVE PLATE 1PC
8 HPR130 FIX PLATE 1PC
9 HPR130 SERVO PISTON(BIG/SMALL) 2PC
10 HPR130 RETAINER PLATE 1SET
11 HPR130 BALL GUIDE 1PC
Linde Series 1 Model: HMF 63-01 MOTOR
Linde Series 2 Model: MPF 55-01 PUMP
Linde series 3 Model: MPR 28/43/63/71-01 PUMP
Linde series 4 Model: HPR75/90/100/130/160-01 PUMP
Linde series 5 Model: HPR55/75/105/135/165/210 PUMP
Linde series 6 Model: MPV45-01 MPV63-01 PUMP
Linde series 7 Model: HMR75/105/135/165/210/280-02 MOTOR
Linde series 8 Model: BPV35/50/70/100/200 PUMP
Linde series 9 Model: B2PV35/50/75/105/140/186 PUMP
Linde series 10 Model: BMF35/55/75/105/140/186/260 MOTOR
Linde series 11 Model: BMV35/55/75/105/135/140 MOTOR
Linde series 12 Model: BPR 55/75/105/140/186/260 PUMP
Linde series 13 Model: HPV55T/75/105/135/165/210/280 PUMP
Linde series 14 Model: HMF 28/35/50/55/75/105/135/165/210-02/280 MOTOR
Linde series 15 Model: HPV130-01 PUMP
Linde series 16 Model: HMV280
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | HPR130 DRIVE SHAFT | 1 | SHAFT |
| 2 | HPR130 SADDLE BEARING | 2 | |
| 3 | HPR130 SUPPORT | 1 | |
| 4 | HPR130 SWASH PLATE | 1 | YOKE |
| 5 | HPR130 PISTON SHOE | 9 | PISTONS |
| 6 | HPR130 CYLINDER BLOCK | 1 | BARREL |
| 7 | HPR130 VALVE PLATE | 1 | PORT PLATE |
| 8 | HPR130 FIX PLATE | 1 | |
| 9 | HPR130 SERVO PISTON(BIG/SMALL) | 2 | |
| 10 | HPR130 RETAINER PLATE | 1 | SET PLATE |
| 11 | HPR130 BALL GUIDE | 1 |
Elephant Fluid Power is your aftermarket solutions partner for Linde replacement piston pump parts. We rebuild brand new Linde HPR130 hydraulic pump parts, range from HPR75, HPR100, HPR105, HPR130, HPR160. Remanufactured parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate, Fix Plate, Servo Piston, Retainer Plate, Set Plate, Ball Guide and other parts.
Attribute
| Attribute | Specifiions |
| Material | Cast/Ductile iron, steel, bronze and others |
| Types | Replacement parts for hydraulic piston pump |
| Function | Completely interchangeable with original pump |
| Parts name | Cylinder block, piston, retainer plate, ball guide, valve plate, drive shaft, swash plate and more |
| Processing technic | Cutting, lathe, machining center, heat treatment, grind, honing, burring and so on |
| Trademark | Elephant Fluid Power, Neutral label, or according to client’s requirement |
