Product Details:
|
| Name: | Hydraulic Sectional Valves | Model: | 1P40F-OT |
|---|---|---|---|
| Quality: | Good Quality | Warranty: | One Year |
| Original: | Made In China | Advantage: | Fast Delivery,Advantage Price |
| Spool: | 1 Spool | Flow: | 40lt |
| High Light: | 1P40F 1 spool hydraulic control valve,315 bar 1 spool hydraulic control valve,315 bar hydraulic sectional valves |
||

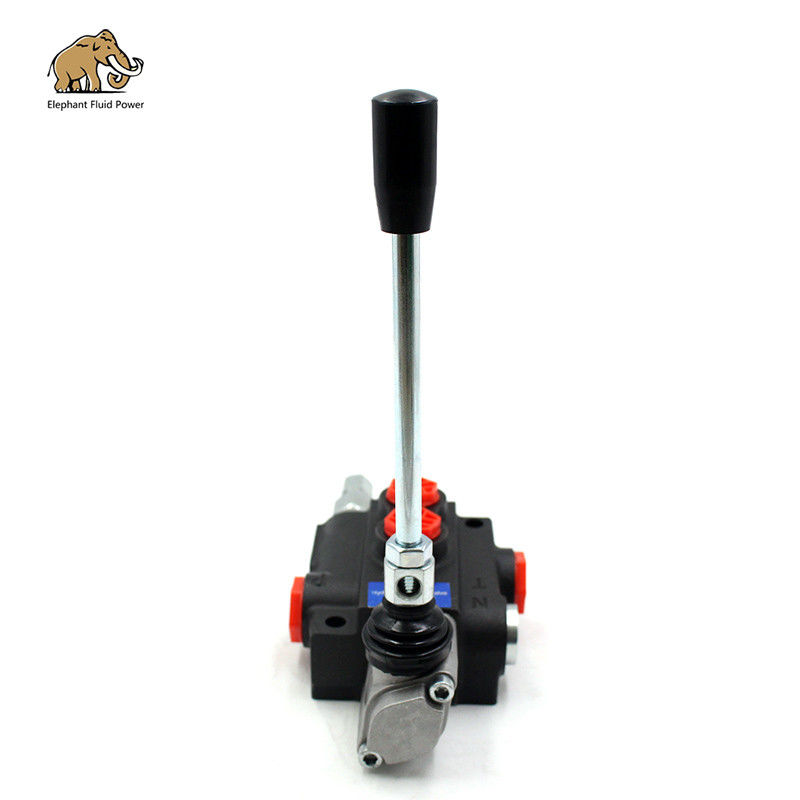

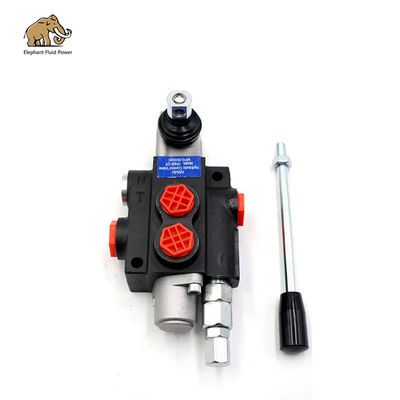

1P40F-OT Hydraulic Direction Valve 1 Spool Sectional Valves Control Valve For Agricultural Machinery
Product details:
P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.
P40 series are economical monoblock directional control valves with various appliions and features of compact structure,stable performance,low price and high universality.
Functions and features
1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by
customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.
Specifiion
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 315 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modifiion/ Spools | with 1 to 7 |
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
Appliion:
This product is applicable to special vehicles like tractors, trucks, cranes, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
