Product Details:
|
| Material: | Cast,Ductile Iron, Steel, Bronze And Others | Name: | Hydraulic Pump |
|---|---|---|---|
| Type: | Vane Pump | Model: | VQ Series |
| Appliion: | Construction Machine | Quality: | High Quality |
| Pressure: | High Pressure | Original: | Made In China |
| High Light: | VQ Hydraulic Vane Pump Parts,SGS Hydraulic Vane Pump Parts,SGS vickers hydraulic pump parts |
||

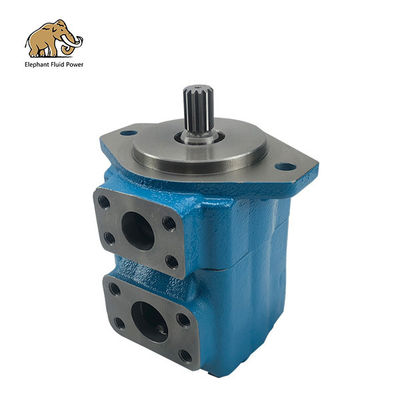

Provide VQ series Hydraulic Vane Pump,We can make varies of hydraulic pumps parts with factory-direct prices and have state of the art machining testing facilities to assist clients with their projects.
Elephant Fluid Power: guarantee quality and appropriate prices, and perfect after-sales service.
The VQ series is a high-pressure and high-performance cluster vane pump specially developed for construction machinery, which is suitable for construction machinery, especially mobile machinery.
Model 1: VQ Series-vane pumps 20VQ,25VQ,35VQ,45VQ
Model 2: VQ Series double pumps 2520VQ,3520VQ,3525VQ,4520VQ,4525VQ,4535VQ
Model 3: VQT Series-vane pumps 25VQT,35VQT,45VQT
4535VQ60A25-1AA-22R, 4535VQ60A25-1CC-22R, 4525VQ60A12-1AA-22R, 4525VQ60A12-1CC-22R, 2520vq17a5-1aa-22r,2520VQ17A5 1AB22R, 2520VQ17A8 1AA22R, 2520VQ17A8 1CC22L, 2520VQ21A5 1AA22R, 2520VQ21A5 1CC22R, 2520VQ21A8 1CC22R, 2520VQ21A11 1AA22R, 2520VQ21A12 1AA22R, 2520VQ21A12 1BB22R, 2520VQ21A14 1AD22R, 3520VQ25A5 1CC22R, 3520VQ25A8-86CB22R, 3520VQ30A5 1DC22R
Features:
1. The structure is designed as a mother-in-one blade, which minimizes the high-pressure impact of the blade on the stator. Under medium, high pressure and high speed, the performance is more stable and the life is longer.
2. The floating side plate is used to automatically compensate the gap, achieve pressure balance, and achieve high speed and high pressure, up to 21MPa.
3. The side plate adopts bimetal flexible material to improve the anti-seizure performance, complete displacement, plug-in structure pump core, high-precision parts, flexible use and convenient maintenance
Specifiion:
| (F3-) | 25VQ | 19 | A | (F) | -1 | A | 30 | R |
Note |
Series |
Flow code |
Port connections |
Installation type |
Shaft type |
Port positions |
Design number |
Rotation |
| No-marking Petroleum series oilemulsifiion fluid water glycol-fluid F3:phosphate ester fluid |
20VQ | 2,3,4,5,6,7,8,9,10,11,12,14 | A-SAE 4-bolt flange |
No-markingFlange MountingF-Foot Mountion | 1-Str key151-Spline | (Views from shaft end of pump)A-Opposite inlet port B-90° CCW from inlet C-linline with inlet D-90° CW from inlet |
30 | Views from shaft end of pumpR-right hand for clockwiseL-left hand for counter-clockwise |
| 25VQ | 10,12,14,15,17,19,21,25 | 1-Str key 86-HD str key11-Spline |
20 | |||||
| 35VQ | 21,25,30,32,35,38,45 | |||||||
| 45VQ | 42,45,50,57,60,66,75 |
USgpm Flow(USgpm)at 1200r/min and 0.69MPa
