Product Details:
|
| Meterial: | Cast,Ductile Iron, Steel, Bronze And Others | Name: | Hydraulic Orbitrol Steering Unit |
|---|---|---|---|
| Type: | BZZ Series | Appliion: | Big Loader,Forklifts |
| Other Name: | Hydraulic Power Unit | Warranty: | 12-18 Months |
| Brand: | Hanjiu | Original: | Made In China |
| High Light: | BZZ Orbitrol Steering Unit,Marine Orbitrol Steering Unit,BZZ orbitrol steering pump |
||

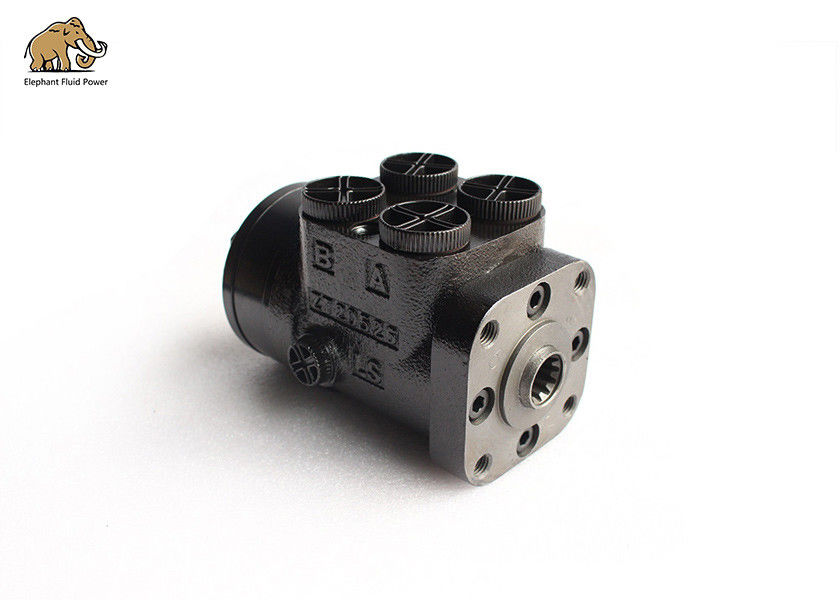

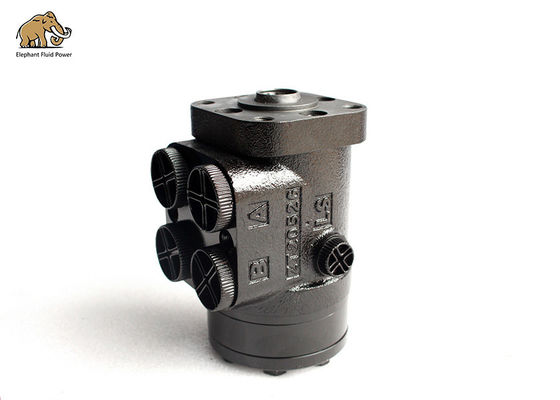

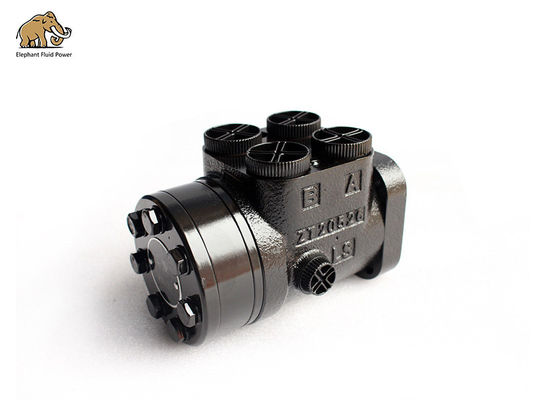

Eaton BZZ Hydraulic Orbitrol Steering Unit For Forlift, Marine Hydraulic Power Unit
Product details:
BZZ series hydraulic steering unit is consisted of one pair of rotary valve and one pair of
gerotor. Via the steering column, the steering unit links the steering wheel, when the steering
wheel rotates, the oil flows out of the supply pump of the steering system , through the rotary
valve and the gerotor , to the cylinder’s port left or right ( depend upon the rotation direction).
The gerotor supplies the oil to the steering cylinder in proportion to the angular rotation of the
steering wheel. If the oil flow out of the supply pump of the steering system is too small, the
steering unit can work as the manual pump.
Appliion:
Wide appliion in power steering systems, among others in: trucks,
construction machines, combines, tractors, forage harvesters.
Specifiions
| Hanjiu | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 |
1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Hanjiu | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON |
240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Hanjiu | Fiat OEM | Fiat |
| 101s 100 ON |
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
|
100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
Competitive Advantage
Hydrolider brand orbit motors are characterized by reliability and diligence of perfomance.
They are guaranteeing precise and effortless machine control.
The offer includes many types of orbitroles: ON (open center, non-reaction),
OR (open center, reaction), CN (closed center, non-reaction) and LS (load sensing).
Additionally, there is available the wide assortment of hydraulic accessories among others complete steering columns,
milled rollers and many more
We are proud of being your solution partner in hydraulics.
Strong at alternative , Eaton Char-lynn, Parker, M+S, industiral, mobile, agri, marine parts,
able to support your business with more & better hydraulic solutions
